DigiPin13 WL1 – Wireless LANC Remote Control
Work with LANC cameras – up to 80 m range
Special price: € 199.00
incl. VAT
( instead of 272.51 )
167.23 € w/o vat
in stock
Shipping costarticle number: 10903 | manufacturer number: WL1
The Digipin13 WL1 is a wireless LANC remote control for LANC-compatible cameras from Sony, Canon, JVC, Panasonic and Blackmagic. It enables starting and stopping recordings without a direct cable connection between the remote control and the camera.
The system is particularly suitable for film productions, live productions, multi-camera setups, camera cranes, sliders, tripods and hard-to-reach camera positions. Depending on the setup, up to 5 cameras can be controlled wirelessly using additional receivers.
The Digipin13 WL1 works with cameras that support a LANC, Control-L or CTRL-L interface. The receiver is connected directly to the camera's LANC port and powered through that connection.
The remote control itself is powered by 2 AAA batteries. The range is up to 80 metres in open field conditions. This allows the camera to be reliably started and stopped from greater distances.
The range of functions depends on the camera model used. In addition to recording start/stop, further functions may be supported depending on the camera, such as focus control, autofocus, iris control, push iris, shutter control, white balance reset, on-screen display on/off, or playback functions.
For Blackmagic Design cameras with LANC support, functions include recording start/stop, focus control, autofocus, iris control, and zoom functions depending on the model. For Blackmagic Micro cameras, additional functions such as auto iris, iris open/close, focus near/far and focus control via rocker switch are available.
- Film and video production
- Live streaming and event production
- Multi-camera setups
- Camera cranes, sliders and tripods
- Remote cameras in hard-to-reach positions
- Wireless recording control for cameras with LANC, Control-L or CTRL-L interface
At least one compatible LANC receiver is required for operation. Without a receiver, the remote control cannot operate any camera. To control multiple cameras, additional receivers must be added accordingly.

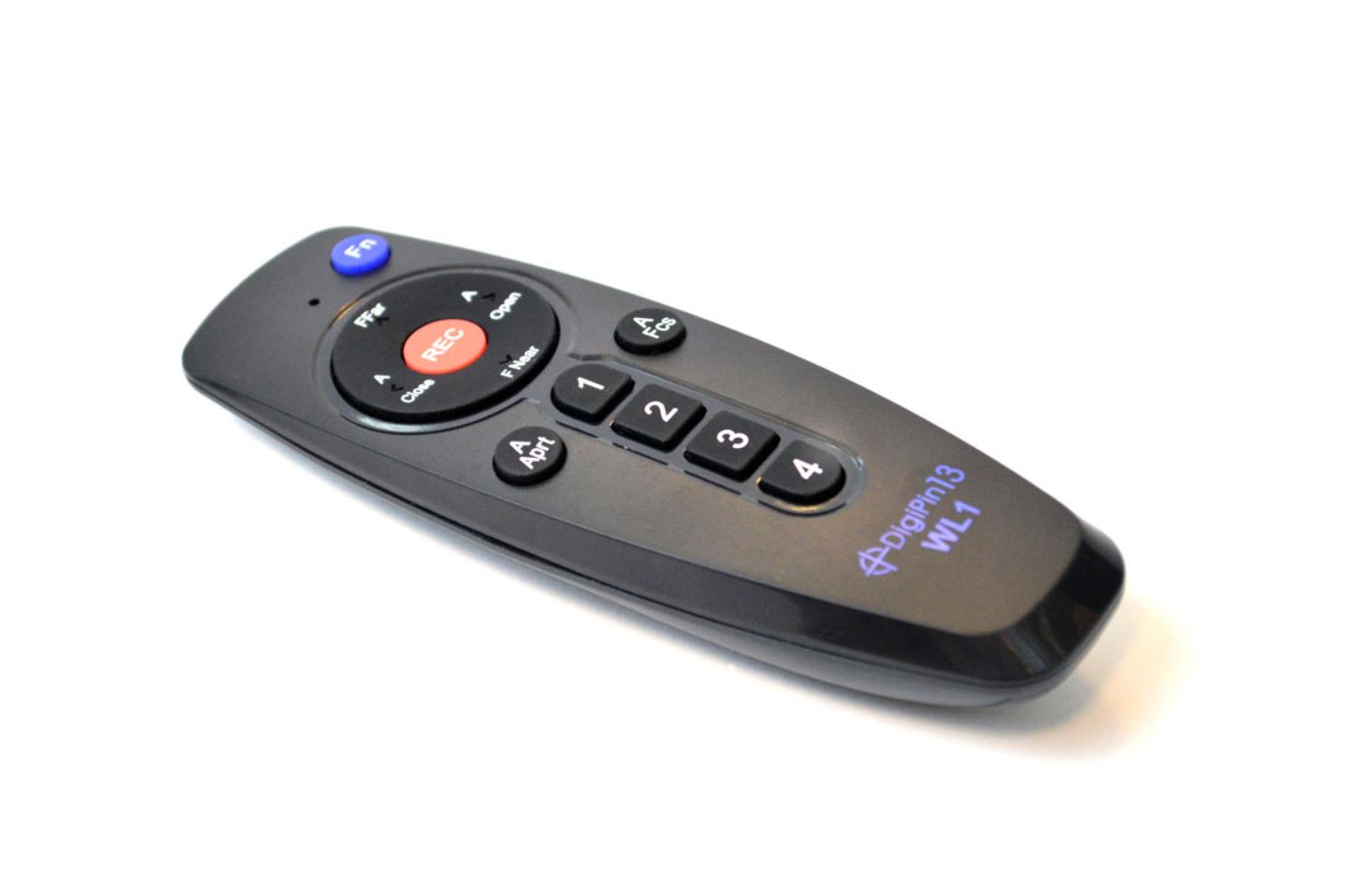

Real product can look different to picture
techn. Specs▲
| General | |
| Product Type | Wireless LANC remote control |
|---|---|
| Protocol | LANC, Control-L, CTRL-L |
| Compatibility | Sony, Canon, JVC, Panasonic and Blackmagic cameras with LANC support |
| Range | Up to 80 m in open field |
| Multi-Camera Operation | Up to 5 cameras with additional receivers |
| System Expansion | Additional LANC receivers available separately |
| Power Supply | |
| Remote Control | 2 AAA batteries |
| Receiver | Powered directly via the camera's LANC connector |
| Basic Functions | |
| Recording Control | Record start/stop |
| Software | Possibility for software updates |
| Functions with Blackmagic Design Cameras with LANC | |
| Recording | Record start/stop |
| Focus | Focus control, autofocus |
| Iris | Iris control, auto iris on/off |
| Zoom | Zoom control with Blackmagic Studio Camera, depending on camera and lens |
| Synchronized Operation | Up to 5 cameras with synchronized recording |
| Functions with Sony, JVC and Canon with LANC | |
| Recording | Record start/stop |
| Focus | Focus control, autofocus, push focus |
| Iris | Iris control, auto iris on/off, push iris, depending on camera model |
| Zoom | 2-speed zoom: very slow zoom and normal zoom |
| Additional Functions | Shutter control, WB reset, camera power off, on-screen display on/off, playback forward/reverse |
| Multi-Camera Control | Synchronized control of up to 5 cameras |
| Additional Functions with Blackmagic Micro Camera | |
| Recording | Rec start/stop |
| Iris | Auto iris, iris open/close |
| Focus | Auto focus, focus near, focus far, focus control via rocker |
| Zoom | Zoom control when using a studio camera and a supported lens |
| Note | |
| Receiver Required | At least one compatible receiver is required for operation. The remote control does not function without a receiver. |
| Feature Availability | The available functions depend on the camera model used, the lens, and the camera's LANC support. |
Questions & Answers▲
Which cameras are compatible with the DigiPin13 WL1?
The DigiPin13 WL1 is compatible with cameras from Sony, Canon, JVC, Panasonic, and Blackmagic Design that feature a LANC, Control-L, or CTRL-L interface. The receiver connects directly to the camera's LANC port.
What is the maximum wireless range of the DigiPin13 WL1?
The wireless range is up to 80 metres under open field conditions. Obstacles or interference from other wireless devices may reduce the effective range in practice.
How many cameras can be controlled simultaneously?
Up to 5 cameras can be controlled wirelessly at the same time by using additional receivers, making it well suited for multi-camera setups.
How is the receiver powered?
The receiver draws its power directly through the camera's LANC port, so no separate batteries or external power supply are required for the receiver.
What batteries does the remote control unit require?
The handheld remote control is powered by 2 AAA batteries, which are a widely available and easy-to-replace battery format.
Which functions does the DigiPin13 WL1 support beyond starting and stopping recordings?
Depending on the camera model, additional functions may include focus control, autofocus, iris control, push iris, shutter control, white balance reset, on-screen display toggle, and playback functions. The exact range of supported functions varies by camera.
Are there additional functions available specifically for Blackmagic cameras?
Yes. For Blackmagic Design cameras with LANC support, the system supports recording start/stop, focus control, autofocus, iris control, and zoom functions depending on the model. Blackmagic Micro cameras also support auto iris, iris open/close, focus near/far, and focus control via the rocker switch.
Is the DigiPin13 WL1 suitable for use on camera cranes and sliders?
Yes, the system is specifically designed for use cases such as camera cranes, sliders, and tripods where a direct cable connection between operator and camera is impractical or impossible.
Can the DigiPin13 WL1 be used during live productions and events?
Yes, the system is suitable for live streaming and event production environments, where reliable wireless control of one or more cameras from a distance is required.
Does the system require any software installation or pairing procedure?
The receiver connects directly to the camera's LANC port and is powered through it. No specific software installation is mentioned as required for basic operation.
Is the DigiPin13 WL1 suitable for remote cameras in hard-to-reach positions?
Yes, the wireless design makes it particularly practical for cameras placed in positions that are difficult or unsafe to access physically during a production, allowing the operator to trigger recording from up to 80 metres away.
