AVMatrix UC7018 Multi-Signal Capture Box USB 3.0
SDI, HDMI, VGA & more – plug-and-play for broadcast
article number: 12734 | manufacturer number: UC7018 | EAN/UPC: 6971118003068

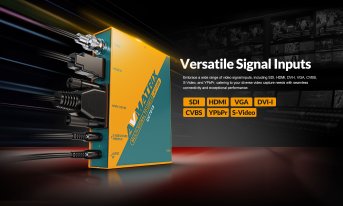

The AV Matrix UC7018 Multi-Signal to USB3.0 Capture Box enables professional recording of various video sources via a compact USB interface. The device supports versatile signal inputs including SDI, HDMI, DVI-I, VGA, CVBS, YPbPr and S-Video, providing maximum flexibility for various video capture applications in content creation and broadcast production.
With the USB 3.0 Type-C connection, both data transfer and power supply are carried out via a single cable. The Capture Box works according to the plug-and-play principle and does not require any additional drivers, which ensures immediate use in professional workflows.
The UC7018 records videos with up to 1080p60 in uncompressed quality, ensuring every detail of the original video source is preserved. Support for RGB32, YUY2 and NV12 color spaces ensure excellent color fidelity and enable vivid, detailed recordings for live streaming and video production.
The RGB video format ensures true-to-life color representation during playback and recording, making live streams appear as vivid and detailed as possible. This makes the capture box particularly valuable for content creators and streaming professionals who strive for the highest image quality.
The UC7018 has an external audio input that allows the connection of microphones, Mixers and other audio media players. This feature integrates audio directly into video production and eliminates the need for separate audio recordings, greatly simplifying the workflow.
2-channel audio support with 16-bit PCM and 48kHz provides professional audio quality for broadcast and streaming applications. The seamless audio-video synchronization makes the device ideal for live productions and video conferences.
The device supports UVC and UAC standards and is compatible with Windows, Linux and macOS operating systems. The UC7018 works seamlessly with common streaming and recording applications such as OBS Studio, Skype, ZOOM, Teams, vMix and other professional software solutions.
The Capture Box enables direct streaming to major live streaming platforms such as YouTube, Facebook, Twitch, Instagram and other social media channels. This versatile compatibility makes it a universal tool for content creators, gamers and professional broadcasters.
It is operated via DIP switches on the device as well as via user-friendly PC software for one intuitive control of device settings. This dual mode of operation enables both quick hardware adjustments and detailed software configuration depending on the application.
The UC7018 is suitable for a wide range of professional applications: from medical recordings and video conferencing to game live streaming to remote education solutions. The compact dimensions of 104×123.5×24.5mm and the low weight of 473g make the device ideal for mobile production environments and flexible usage scenarios.
Real product can look different to picture
techn. Specs▲
| Video Interfaces | 1×SDI input |
|---|---|
| 1×HDMI input | |
| 1×DVI-I/VGA input | |
| 1×S-VIDEO/CVBS/YPBPR input | |
| 1×3.5mm (analog audio input) | |
| Output Interface | 1×USB3.0 type C(USB 3.1 Gen1, up to 200MB/s) |
| SDI Input Format | 1080p 60/59.94/50/30/29.97/25/24/23.98 |
| 1080sf 30/29.97/25/24/23.98 | |
| 1080i 50/59.94/60 | |
| 720p 60/59.94/50/30/29.97/25/24/23.98 | |
| HDMI Input Format | 1080p 60/59.94/50/30/29.97/25/24/23.98 |
| 1080i 50/59.94/60 | |
| 720p 60/59.94/50/30/29.97/25/24/23.98 | |
| S-VIDEO/CVB Input Format | 710×484i, 702×576i |
| YPBPR Input Format | 1080×1080p, 1920×1080i, 1280×720p, 1024×576p, 720×576p, 720×483p, 710×484i, 702×576i |
| DVI Input Format | 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1152×900, 1152×870, 1152×864, |
| 1024×768, 800×600, 720×400, 640×480 | |
| VGA Input Format | 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1152×900, 1152×870, 1152×864, |
| 1024×768, 800×600, 720×400, 640×480 | |
| USB Capture Resolution | 1920×1080, 1600×900, 1440×900, 1368×768, 1280×960, 1280×720, 1024×768, |
| 960×540, 800×600, 640×360 | |
| Audio & Video Capture | UVC (USB Video Class) Standard |
| UAC (USB Audio Class) Standard | |
| Audio Codec | 2 channel, 16 bit PCM, 48KHz, 1536 kbps |
| Video Color Space | RGB, YUY2, NV12 |
| Supported Operating Systems | Windows 7/8/10/11, Linux (kernel version 2.6.38 and above), macOS (10.8 and above) |
| Software Compatibility | OBS studio, Skype, ZOOM, Teams, Google Meet, YouTube Live, QuickTime Player, Face time, etc. |
| Compatible SDK | DirectShow(Windows), DirectSound(Windows) |
| Power | USB Type-C |
| power Consumption | ≤5W (5V,1A) |
| Voltage | 5V |
| Dimension | 104×125.5×24.5mm |
| Weights | Net weight: 473g Gross Weight: 830g |
| Operating Temperature | -20~60°C |
| Storage Temperature | -30~70°C |
| Relative Humidity | 20~90% RH (non-condensing) |
Questions & Answers▲
Which video inputs does the UC7018 support?
The UC7018 supports SDI, HDMI, DVI-I, VGA, CVBS, YPbPr and S-Video. This means that almost all common video sources from professional and semi-professional environments can be recorded directly.
What maximum resolution and frame rate are possible when recording?
The maximum recording resolution is 1080p at 60 frames per second. The recording is uncompressed, so that there is no loss of quality due to data compression.
Which color space formats are supported?
The color space formats RGB32, YUY2 and NV12 are supported. This selection enables excellent color fidelity and flexible further processing in various production software solutions.
Is the UC7018 plug-and-play capable or do drivers need to be installed?
The UC7018 works according to the plug-and-play principle and does not require any additional driver. After connecting via USB, the device is immediately ready for use without any installation required.
How is the Capture Box powered?
The power is supplied exclusively via the USB 3.0 Type-C cable, which is also used for data transfer. A separate power supply is not required.
What software is the UC7018 compatible with?
The Capture Box is compatible with OBS Studio and Zoom, among other things. Due to the driver-free USB-UVC implementation, it usually works with all software solutions that support standards-compliant capture devices.
Is the UC7018 also usable under macOS?
Yes, the UC7018 is compatible with macOS. Thanks to driver-free operation, it is recognized directly by the operating system without the need to install additional software.
Does the Capture Box have an audio input?
Yes, the UC7018 has an external audio input to which microphones, mixers or other audio media players can be connected. The audio is integrated directly into the video recording.
What audio specifications does the device offer?
The audio recording is done with 2 channels, 16-bit PCM and a sampling rate of 48 kHz. These specifications correspond to the standard for professional broadcast and streaming applications.
For which areas of application is the UC7018 particularly suitable?
The UC7018 is particularly suitable for live streaming, broadcast production and content creation. Supporting professional signal sources such as SDI makes it suitable for both semi-professional and professional production environments.
Can the UC7018 process SDI signals from professional broadcast cameras?
Yes, SDI is one of the supported input formats. This allows signals from professional broadcast cameras and other SDI-capable sources to be transmitted directly to a computer via USB.
Is a separate hub or an active USB port required for operation?
The UC7018 is powered via a single USB 3.0 Type-C port powered, providing both data and power. A USB 3.0 port on the computer is recommended to ensure full transfer performance for uncompressed 1080p60 recordings.
