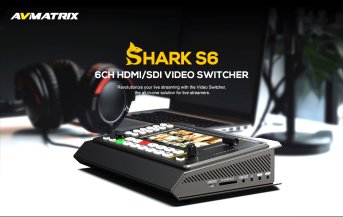

AVMATRIX Shark S6 6-channel HDMI/SDI video mixer
Very compact video mixer with SDI and HDMI and integrated 5" LCD
Artikelnummer: 12673 | Hersteller-Nummer: SharkS6 | EAN: 6971118002313

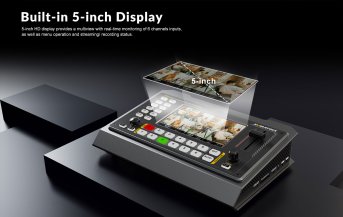

- Integrated 5-inch LCD display

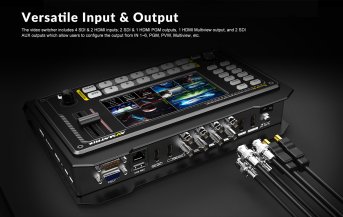

- Inputs: 4×SDI and 2×HDMI
- Outputs: 2×SDI, 1×HDMI PGM, 2×SDI AUX, 1×HDMI Multiview, 1×USB Type-C

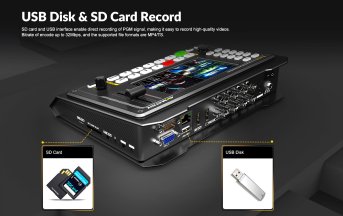

- RTMP streaming & USB stick & SD card recording

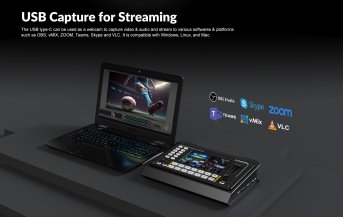

- USB for recording and streaming to PC
- Professional chroma key, downstream key, 2×PIP/POP and LOGO overlay
- T-Bar/Auto/Cut transitions, various effects: MIX/DIP/WIPE

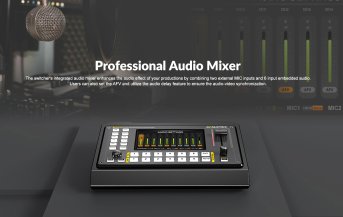

- Audio mixer: 4×SDI, 2×HDMI audio & 2×MIC inputs

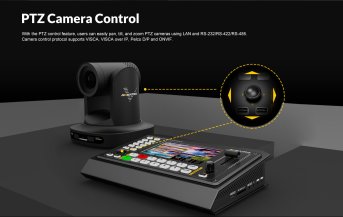

- PTZ camera control: VISCA, VISCA over IP, Pelco D/P & ONVIF

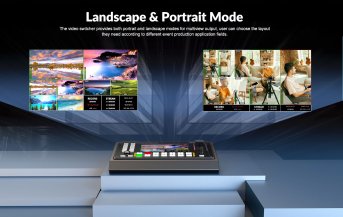

- Layout style: landscape & portrait mode
- FTB/STILL, GPIO port for tally system, RS232/RS422/RS485
Real product can look different to picture

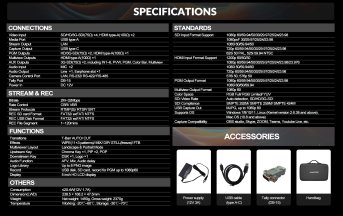

techn. Specs▲
- Video inputs: 4 × SD/HD/3G-SDI (75Ω), 2 × HDMI Type-A
- PGM outputs: 2 × HD/3G-SDI, 1 × HDMI
- Multiview output: 1 × HDMI
- AUX outputs: 2 × 3G-SDI (IN1–6, PVW, PGM, color test image or multiview)
- Streaming output: LAN (Ethernet)
- Capture output: USB Type-C
- Media port: USB Type-A
- Audio inputs: 2 × microphone
- Audio outputs: Line out ×1, headphone jack ×1
- Camera control: LAN and RS-232 / RS-422 / RS-485
- Tally connector: DB-15
- Power supply: DC 12V
- Streaming protocols: RTMP, RTMPS, RTSP, SRT
- Bit rate: 2-32 Mbps
- Bitrate control: CBR or VBR
- Recording to USB stick or SD card
- Supported file systems: FAT32, exFAT, NTFS
- File segmentation: 1-120 minutes
- PGM recording up to 1080p60
- Transitions: T-Bar, AUTO or CUT
- Effects: Wipe (11×3 pattern), MIX, DIP, STAND (Freeze), FTB
- Keyer: Chroma Key ×1, PiP ×2, POP
- Downstream keyer: DSK ×1, Logo ×1
- Multiview layout: portrait and landscape
- Logo library: up to 8 PNG images
- Audio functions: AFV, MIX and audio delay
- Display: integrated 5-inch HD LCD
- SDI inputs: 1080p (60/59.94/50/30/29.97/25/24/23.98), 1080psF, 1080i, 720p and SD formats (PAL/NTSC)
- HDMI inputs: up to 1200p60 as well as 1080p, 1080i and 720p
- PGM output: 1080p or 1080i
- Multiview output: 1080p60
- Color space: RGB (Full/Limited) and YUV
- SDI detection: automatic switching SD/HD/3G-SDI
- SDI standards: SMPTE 259M, SMPTE 292M, SMPTE 424M
- USB capture output: MJPG up to 1080p60
- Compatible operating systems: Windows 7/8/10/11, Linux (Kernel ≥ 2.6.38), macOS ≥ 10.8
- Supported software: OBS Studio, Skype, Zoom, Microsoft Teams, YouTube Live and others
- Power consumption: ≤ 20.4 W (12 V / 1.7 A)
- Dimensions (L × W × H): 238.5 × 168.2 × 47.5 mm
- Weight: 1.45 kg (net)
- Operating temperature: −20 °C to +60 °C
- Storage temperature: −30 °C to +70 °C
- Power supply (12V / 3A)
- USB cable type A to type C
- Tally Plug (DB-15)
- Transport bag
| CONNECTIONS | Video Input | SD/HD/3G-SDI (75Ω) ×4, HDMI Type-A ×2 |
| Media Port | USB Type-A | |
| Stream Output | LAN | |
| Capture Output | USB Type-C | |
| PGM Outputs | HD/3G-SDI (75Ω) ×2, HDMI Type-A ×1 | |
| Multiview Output | HDMI Type-A ×1 | |
| AUX Outputs | 3G-SDI (75Ω) ×2, IN1-6, PVW, PGM, Color Bar, Multiview | |
| Audio Input | MIC ×1 | |
| Audio Output | Line ×1, Headphone ×1 | |
| Camera Control | LAN, RS-232 / RS-422 / RS-485 | |
| Tally Port | DB-15 | |
| STREAM & REC | Bitrate | 2M – 32 Mbps |
| Rate Control | CBR / VBR | |
| Stream Protocols | RTMP / RTMPS / RTSP / SRT | |
| REC SD Card Format | FAT32 / exFAT / NTFS | |
| REC USB Disk Format | FAT32 / exFAT / NTFS | |
| REC File Segment | 1 – 120 min | |
| FUNCTIONS | Transitions | T-Bar / AUTO / CUT |
| Effects | Wipe (11×3 patterns), MIX, DIP, STILL (freeze), FTB | |
| Multiview Layout | Landscape & Portrait Mode | |
| Upstream Key | Chroma Key ×1, PiP ×2, POP | |
| Downstream Key | DSK ×1, Logo ×1 | |
| Audio Function | AFV, Mix, Audio Delay | |
| Logo Library | Up to 8 PNG images | |
| Display | 5" HD LCD Display | |
| OTHERS | Power Consumption | ≤20.4W (12V / 1.7A) |
| Dimensions (L×W×H) | 238.5 × 168.2 × 47.5 mm | |
| CONNECTIONS | Video Input | SD/HD/3G-SDI (75Ω) ×4, HDMI Type-A ×2 |
| Media Port | USB Type-A | |
| Stream Output | LAN | |
| Capture Output | USB Type-C | |
| PGM Outputs | HD/3G-SDI (75Ω) ×2, HDMI Type-A ×1 | |
| Multiview Output | HDMI Type-A ×1 | |
| AUX Outputs | 3G-SDI (75Ω) ×2, IN1-6, PVW, PGM, Color Bar, Multiview | |
| Audio Input | MIC ×1 | |
| Audio Output | Line ×1, Headphone ×1 | |
| Camera Control | LAN, RS-232 / RS-422 / RS-485 | |
| Tally Port | DB-15 | |
| STREAM & REC | Bitrate | 2M – 32 Mbps |
| Rate Control | CBR / VBR | |
| Stream Protocols | RTMP / RTMPS / RTSP / SRT | |
| REC SD Card Format | FAT32 / exFAT / NTFS | |
| REC USB Disk Format | FAT32 / exFAT / NTFS | |
| REC File Segment | 1 – 120 min | |
| FUNCTIONS | Transitions | T-Bar / AUTO / CUT |
| Effects | Wipe (11×3 patterns), MIX, DIP, STILL (freeze), FTB | |
| Multiview Layout | Landscape & Portrait Mode | |
| Upstream Key | Chroma Key ×1, PiP ×2, POP | |
| Downstream Key | DSK ×1, Logo ×1 | |
| Audio Function | AFV, Mix, Audio Delay | |
| Logo Library | Up to 8 PNG images | |
| Display | 5" HD LCD Display | |
| OTHERS | Power Consumption | ≤20.4 W (12V / 1.7A) |
| Dimensions (LWD) | 238.5 × 168.2 × 47.5 mm | |
| Weight | Net 1450 g, Gross 2370 g | |
| Temperature | Operating −20°C ~ 60°C, Storage −30°C ~ 70°C |
Weight Net 1450 g, Gross 2370 g Temperature Operating −20°C ~ 60°C, Storage −30°C ~ 70°C
Questions & Answers▲
What inputs does the AVMATRIX Shark S6 have?
The video mixer has 6 inputs: 4 × SD/HD/3G-SDI and 2 × HDMI Type-A. There are also 2 microphone inputs for audio.
Can I stream directly to the device?
Yes, the device supports RTMP streaming over Ethernet. Supported protocols are RTMP, RTMPS, RTSP and SRT with bit rates of 2-32 Mbit/s.
Which outputs are available?
The Shark S6 offers 2 × HD/3G-SDI and 1 × HDMI PGM outputs, 1 × HDMI multiview output, 2 × 3G-SDI AUX outputs and 1 × USB Type-C for recording.
Can I record videos?
Yes, recording is possible on a USB stick or SD card up to 1080p60. Supported file systems are FAT32, exFAT and NTFS with file segmentation from 1-120 minutes.
What transition effects are available?
The device offers T-Bar, AUTO or CUT transitions, as well as various effects such as 33 pattern wipe, MIX, DIP, STAND (freeze) and FTB.
Does the mixer support chroma key?
Yes, the professional chroma key is integrated. In addition, there are 2 × PIP/POP functions and a downstream keyer with logo overlay function.
Which video formats are supported?
The SDI inputs support 1080p in various frame rates, 1080psF, 1080i, 720p and SD formats such as PAL. The HDMI inputs process standard HD formats.
Can I control PTZ cameras?
Yes, PTZ camera control is via VISCA, VISCA over IP, Pelco D/P and ONVIF protocols via LAN and RS-232/RS-422/RS-485.
What power supply does the device require?
The video mixer is operated with DC 12V. The compact design makes it ideal for mobile use.
Is there an integrated display?
Yes, the device has a built-in 5-inch HD LCD display for preview, stream status and menu settings with portrait and landscape layouts.
What audio features are available?
The integrated audio mixer handles 4 × SDI, 2 × HDMI audio and 2 × MIC inputs with AFV, MIX and audio delay functions. Outputs are line out and headphone jack.
