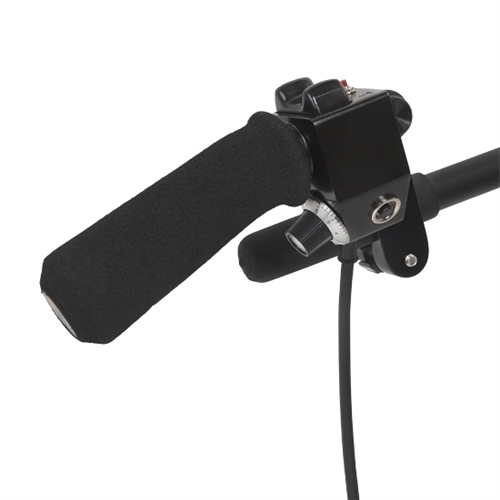

VariZoom VZPGC20 Pistol Grip Zoom Remote Control
For Canon Cine-Servo lenses with 20-pin connection
article number: 11919 | manufacturer number: VZPGC20 | EAN/UPC: 877038007376
The VariZoom VZPGC20 is one ergonomic zoom remote control in pistol-grip design for professional Canon Cine-Servo lenses with 20-pin connection. It was developed specifically for models such as the Canon CN-E 18-80mm and CN-E 70-200mm and enables precise control of zoom, recording and one-shot Autofocus.
The integrated dual-variable system combines a Pressure-sensitive zoom rocker with a speed dial to limit the maximum zoom speed. This makes it possible to achieve particularly smooth and reproducible zoom movements - from extremely slow movements to the preset maximum speed.
- Pressure-sensitive zoom rocker for variable speed
- Speed dial for presetting the maximum zoom speed
- Ramping function for dynamic Zoom movements
- Precise and repeatable zoom movements
The pistol grip design allows comfortable operation with both the left and right hand. The ergonomic shape ensures safe handling and precise control - even during longer periods of use.
- Ergonomic handle with rubberized surface
- Suitable for left and right-handed users
- Optimized for professional use Camera movements
The swiveling offset clamp enables individual adjustment of the angle and secure attachment on tripods, cranes, gimbals and shoulder rigs. The robust aluminum housing ensures a long service life in professional use.
- Adjustable pivot clamp for flexible installation
- Robust aluminum housing
- Quick-change mechanism for easy Installation
- Record Start/Stop button
- One-shot autofocus Button
- Precise control for professional zoom movements

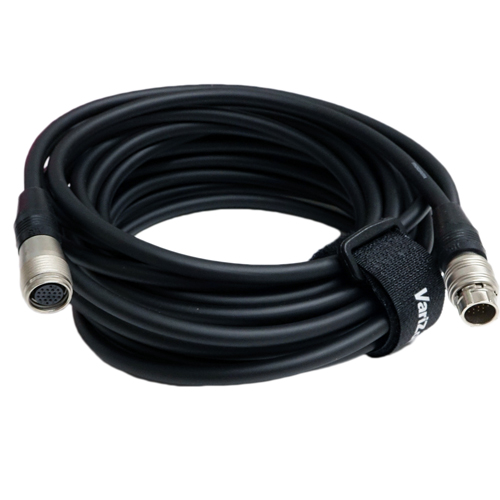

The VZPGC20 comes with approx. 1 meter connection cable supplied. Extension cables (e.g. VZEXT20/25) are optionally available.
Suitable for Canon Cine-Servo lenses with 20-pin connection, in particular:
- Canon CN-E 18-80mm
- Canon CN-E 70-200mm
- Other compatible 20-pin Canon Lenses
Real product can look different to picture
techn. Specs▲
| Dimensions | 8 x 6 x 4 inch |
|---|---|
| Width | 2.4 inch |
| Length | 6.5 inch |
| Max Clamp Diameter | 1.25 inch |
| Cord Length | 40 inch |
| Weight | 1 lb |
| Material | Aluminum |
- Canon CN-E 18-80mm, 70-200mm cine-servo lenses, most 20-pin Canon broadcast lenses
Questions & Answers▲
Which lenses is the VariZoom VZPGC20 compatible with?
The VZPGC20 is designed for Canon Cine-Servo lenses with a 20-pin connection, including the Canon CN-E 18-80mm and CN-E 70-200mm.
Can the VZPGC20 be used by both left-handed and right-handed operators?
Yes, the pistol grip design is ergonomically shaped to allow comfortable and precise operation with either the left or the right hand.
How does the dual-variable zoom control work?
It combines a pressure-sensitive zoom rocker with a speed dial. The rocker controls zoom speed based on applied pressure, while the speed dial sets a maximum zoom speed limit, enabling smooth and reproducible movements.
What is the ramping function used for?
The ramping function allows for dynamic zoom movements with smooth acceleration and deceleration, making transitions look more natural and cinematic rather than abrupt.
Does the VZPGC20 support autofocus control?
Yes, it includes a dedicated one-shot autofocus button that triggers the autofocus function of compatible Canon Cine-Servo lenses directly from the grip.
Can recording be started and stopped from the grip?
Yes, the VZPGC20 features a Record Start/Stop button, allowing the operator to control camera recording without reaching for the camera body.
What mounting options does the VZPGC20 offer?
It features an adjustable swiveling offset clamp that can be attached to tripods, cranes, gimbals, and shoulder rigs, with angle adjustment for individual positioning.
What material is the housing made of?
The housing is made of aluminum, providing durability and resistance to the demands of professional production environments while keeping the unit relatively lightweight.
How long is the included connection cable?
The VZPGC20 comes supplied with approximately one meter of connection cable. If a longer reach is needed, extension cables such as the VZEXT20/25 are available as optional accessories.
Are extension cables included or do they need to be purchased separately?
Extension cables are not included in the scope of delivery. They are available as optional accessories, for example the VZEXT20/25 model.
Is the grip surface comfortable to hold during extended use?
The handle features a rubberized surface that improves grip and reduces fatigue, making it well suited for longer shooting sessions.
Is the VZPGC20 suitable for use on a gimbal?
Yes, the adjustable swiveling clamp allows secure attachment to gimbals, and the ergonomic grip design supports precise lens control during dynamic camera movements.
