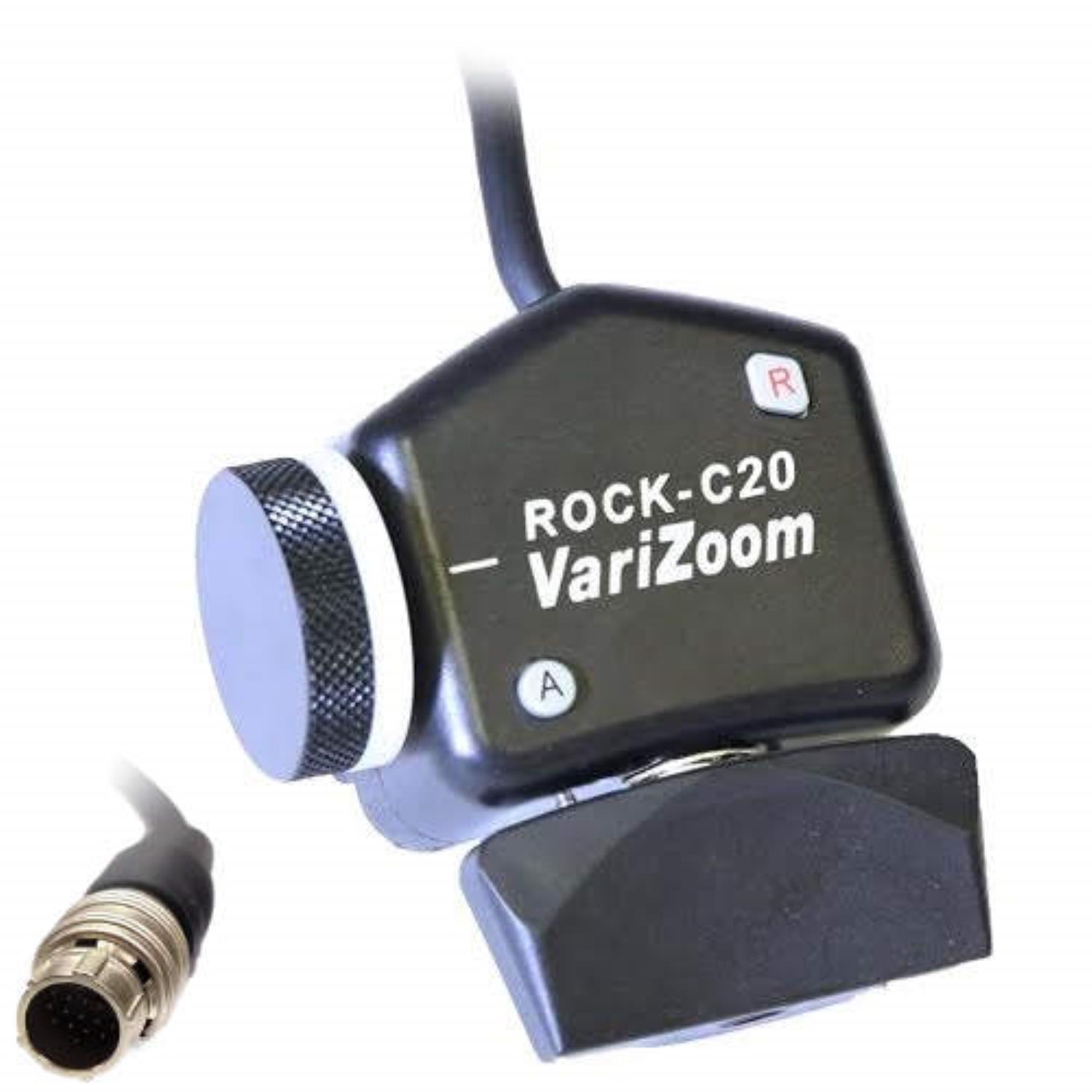

VariZoom VZROCKC20 zoom remote control Canon 20-pin
For Canon Cine-Servo lenses – compact and precise
article number: 11771 | manufacturer number: VZROCKC20 | EAN/UPC: 877038007383
The VariZoom VZROCKC20 is a compact and precise zoom remote control for professional Canon Cine-Servo lenses with 20-pin connection. It was developed specifically for models such as the Canon CN-E 18-80mm and CN-E 70-200mm and enables precise control of the zoom function as well as recording and focus support.
The pressure-sensitive zoom rocker enables precise control of the zoom speed. The maximum speed can be preset using the integrated Speed Limiter which enables particularly smooth and reproducible zoom movements.
- Pressure-sensitive zoom rocker for variable speed
- Speed limiter to limit the maximum Zoom speed
- Smooth and precise zoom movements
- Record start/stop function
- One-shot autofocus button for quick focus tracking
The lightweight and compact design makes the VZROCKC20 ideal for use on tripods, cranes, gimbals and shoulder rigs. It is particularly suitable for mobile setups and professional film and video productions.
The integrated clamp allows for quick and secure attachment to various camera setups. The included connection cable (approx. 1 meter) can be extended if necessary.
- Universal clamp for mounting on tripods and rigs
- 1 meter connection cable included
- Optional extension accessories available
Suitable for Canon Cine-Servo lenses with 20-pin connection, including:
- Canon CN-E 18-80mm
- Canon CN-E 70-200mm
- Canon CJ14ex4.3B IASE-S
- Other compatible 20-pin Canon Lenses
Real product can look different to picture
techn. Specs▲
| Weight | 450 g |
|---|---|
| Dimensions | 20.3 × 15.2 × 10.2 cm |
| Width | 5.1 cm |
| Length | 7 cm |
| Max. Clamp diameter | 3.2 cm |
| Cable length | 101.6 cm |
Questions & Answers▲
Which lenses is the VariZoom VZROCKC20 compatible with?
The VZROCKC20 is designed for Canon Cine-Servo lenses with a 20-pin connection. Confirmed compatible models include the Canon CN-E 18-80mm, Canon CN-E 70-200mm, and the Canon CJ14ex4.3B IASE-S, as well as other Canon lenses using the 20-pin interface.
What is the purpose of the speed limiter?
The integrated speed limiter lets you preset the maximum zoom speed before a shot. This ensures that zoom movements stay smooth and consistent, which is especially useful in professional film and video productions where reproducible results are required.
Does the VZROCKC20 support autofocus control?
Yes, it features a one-shot autofocus button that allows for quick focus tracking. This is intended for situations where fast and accurate focus acquisition is needed without switching to a separate focus control device.
Can I start and stop recording with this remote control?
Yes, the VZROCKC20 includes a record start/stop function, allowing you to trigger recording directly from the remote without touching the camera body. This helps reduce camera shake and keeps your workflow efficient.
How long is the included connection cable?
The included cable measures approximately 101.6 cm, which is roughly one meter. If a longer reach is needed, optional extension accessories are available to increase the cable length.
What mounting options does the VZROCKC20 offer?
The device features an integrated universal clamp that allows quick and secure attachment to tripods, cranes, gimbals, and shoulder rigs. The maximum clamp diameter is 3.2 cm, making it compatible with a wide range of standard rods and handles.
How heavy is the VZROCKC20 and what are its dimensions?
It weighs 450 grams and has overall dimensions of 20.3 × 15.2 × 10.2 cm. The body itself measures 5.1 cm in width and 7 cm in length, making it compact enough for mobile and run-and-gun setups.
Is the zoom rocker pressure-sensitive?
Yes, the zoom rocker responds to varying levels of pressure, which directly controls the zoom speed. Gentle pressure produces slow and gradual zooms, while increased pressure accelerates the zoom movement, giving the operator precise tactile control.
Is the VZROCKC20 suitable for gimbal use?
Yes, its compact and lightweight design makes it well suited for use on gimbals. The secure clamp attachment and short cable help keep the overall setup tidy and balanced, which is important when working with stabilized rigs.
Can the connection cable be extended beyond one meter?
Yes, optional extension accessories are available for situations where a longer cable run is required. The included one-meter cable covers most standard setups, but the option to extend it adds flexibility for crane arms or larger rig configurations.
Is this remote control suitable for broadcast and professional film productions?
Yes, the VZROCKC20 was developed with professional film and video productions in mind. Its speed limiter, pressure-sensitive rocker, and record function address common needs on professional sets where smooth, repeatable zoom control is essential.
Does the remote work with lenses other than the CN-E 18-80mm and CN-E 70-200mm?
Yes, it is compatible with any Canon Cine-Servo lens that uses a 20-pin connection. Beyond the two most commonly referenced models, the Canon CJ14ex4.3B IASE-S and other qualifying Canon lenses with the same interface are also supported.
