VariZoom VZROCKF zoom remote control for Fujinon
Compact control with speed limiter, 8-pin connection
article number: 5677 | manufacturer number: VZROCKF | EAN/UPC: 877038000643

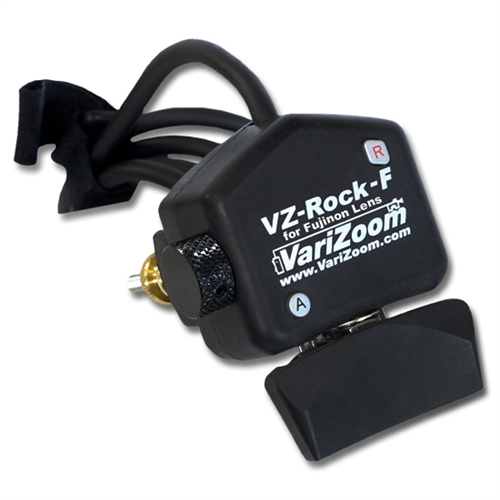

The VariZoom VZROCKF is a compact and precise zoom remote control for professional Fujinon lenses with 8-pin connection. It enables sensitive control of the zoom function and is specially developed for applications where size, weight and precise control are crucial.
The Pressure-sensitive zoom rocker offers precise and reproducible control of the zoom speed. The maximum zoom speed can be individually limited using the side Speed Limiter - ideal for smooth and controlled camera movements.
- Pressure-sensitive zoom rocker for variable speed
- Speed limiter for limiting the maximum Zoom speed
- Smooth and repeatable zoom movements
- Record start/stop function
- Video return function (playback of the last seconds to control)
The particularly light and compact design makes the VZROCKF ideal for use on tripods, cranes, gimbals and stabilization systems. It is ideal for productions where precise control with minimal weight is required.
The integrated clamp allows for quick and secure attachment to various camera setups. The included connection cable (approx. 1 meter) can be extended with optional extension cables if necessary.
- Universal clamp for mounting on tripods and rigs
- 1 meter connection cable included in delivery
- Optional extension accessories available
- Adapters for 12-pin Fujinon lenses available
The VZROCKF is the ideal solution for professional video applications in broadcast, event and production sectors. It enables precise and reliable zoom control, especially when traveling with cranes, stabilized recordings or mobile setups.
Real product can look different to picture
techn. Specs▲
| Weight | 450 g |
|---|---|
| Dimensions | 20.3 × 15.2 × 10.2 cm |
| Width | 5.1 cm |
| Length | 7 cm |
| Max. Clamp diameter | 3.2 cm |
| Cable length | 101.6 cm |
Questions & Answers▲
What type of lenses is the VariZoom VZROCKF compatible with?
The VZROCKF is designed for professional Fujinon lenses with an 8-pin connection. Adapters for 12-pin Fujinon lenses are also available separately, extending compatibility to a broader range of Fujinon optics.
How does the speed limiter work?
The speed limiter is located on the side of the unit and allows you to set a maximum zoom speed. This means the zoom rocker will never exceed your chosen upper limit, making it easier to achieve smooth, consistent zoom movements regardless of how much pressure you apply.
Is the zoom rocker pressure-sensitive?
Yes, the zoom rocker responds to varying levels of pressure, giving you variable zoom speed control. Lighter pressure results in a slower zoom, while more pressure increases speed up to the maximum defined by the speed limiter.
What is the video return function used for?
The video return function allows you to play back the last few recorded seconds directly from the controller. This lets camera operators quickly review a shot without leaving their position, which is especially useful during fast-paced productions.
Can the VZROCKF trigger recording on the camera?
Yes, the unit includes a record start/stop function, allowing the operator to begin and end recording remotely without touching the camera body directly.
How is the VZROCKF mounted to a camera rig or tripod?
The device features an integrated clamp that accepts tubes or handles with a maximum diameter of 3.2 cm. This allows for quick and secure attachment to tripods, cranes, gimbals, and other stabilization systems without additional adapters.
How long is the included connection cable?
The included cable measures approximately 101.6 cm, which is roughly one meter. If a longer reach is needed, optional extension cables are available as separate accessories.
What are the dimensions and weight of the unit?
The VZROCKF measures 20.3 × 15.2 × 10.2 cm overall, with a width of 5.1 cm and a length of 7 cm. It weighs 450 g, making it compact and light enough for use on mobile and stabilized setups where minimizing load is important.
Is the VZROCKF suitable for use on gimbals and stabilizers?
Yes, its compact size and low weight make it well suited for use on gimbals, cranes, and other stabilization systems. The integrated clamp secures it reliably to most standard rig tubes within the supported diameter range.
In which professional contexts is this zoom controller typically used?
The VZROCKF is commonly used in broadcast productions, live events, and professional video shoots where precise, repeatable zoom control is essential. It is particularly well suited for crane shots, stabilized camera movements, and mobile production setups.
Are extension cables included in the delivery?
Extension cables are not included in the standard delivery. The package contains the controller and a one-meter connection cable. Optional extension accessories can be purchased separately to increase the operating distance.
Is an adapter available for Fujinon lenses with a 12-pin connection?
Yes, adapters for 12-pin Fujinon lenses are available as optional accessories, allowing the VZROCKF to be used with a wider range of Fujinon optics beyond the standard 8-pin version.
