VariZoom VZ-PFI rear camera operation Panasonic
Focus and aperture control for Panasonic
article number: 7359 | manufacturer number: VZPFI | EAN/UPC: 877038002227

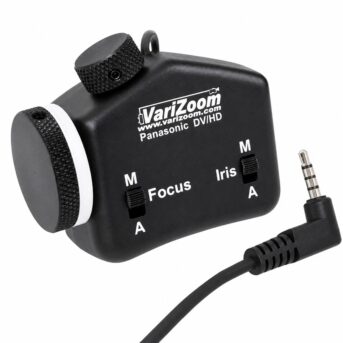

VariZoom VZ-PFI – Rear Camera Control for Panasonic Cameras
The VariZoom VZ-PFI is a professional rear camera control for controlling focus and iris on compatible Panasonic cameras.
It enables precise and direct control of important camera settings without having to operate the camera itself – ideal for use on tripods, rigs, or in studio environments.
Functions
- Focus control
- Iris control
- Switching between automatic and manual mode
- Direct operation at the camera (Rear Control)
- Precise adjustment during recording
Compatibility (Selection)
- Panasonic AG-DVX200
- Panasonic AG-AC160 / AG-AC130A
- Panasonic AG-AF102A
- Panasonic HC-X1
- Panasonic AJ-PX230 / AJ-PX270
- Panasonic DVX100B
- as well as all cameras with dual remote control connector
Applications
- Broadcast and studio
- Film and video production
- Tripod and rig operation
- Single-operator camera work with precise control
Real product can look different to picture
techn. Specs▲
| Width | approx. 50.8 mm |
|---|---|
| Length | approx. 44.5 mm |
| Max. clamp diameter | approx. 31.8 mm |
| Cable length | approx. 101.6 cm |
| Weight | approx. 91 g |
| Material | ABS plastic |
Questions & Answers▲
What functions does the VariZoom VZ-PFI offer?
The VZ-PFI provides direct control of focus and iris on compatible Panasonic cameras. It also allows switching between automatic and manual mode and enables precise adjustments during recording without touching the camera itself.
Which Panasonic cameras are compatible with this controller?
Compatible models include the Panasonic AG-DVX200, AG-AC160, AG-AC130A, AG-AF102A, HC-X1, AJ-PX230, AJ-PX270, and DVX100B. In general, all Panasonic cameras equipped with a dual remote control connector are supported.
How long is the cable of the VZ-PFI?
The cable has a length of approximately 101.6 cm, which provides sufficient reach for tripod setups, rigs, and studio configurations.
What is the maximum clamp diameter supported by the VZ-PFI?
The maximum clamp diameter is approximately 31.8 mm, making it suitable for a wide range of standard tripod handles, rigs, and support systems.
What are the dimensions and weight of this controller?
The unit measures approximately 50.8 mm in width and 44.5 mm in length. It weighs approximately 91 g, making it a compact and lightweight addition to any camera setup.
What material is the VZ-PFI made from?
The housing is made from ABS plastic, which offers a good balance of durability and low weight for professional on-set use.
Is the VZ-PFI suitable for single-operator use?
Yes, it is well suited for single-operator camera work. By mounting the controller directly at a convenient position on the rig or tripod, one operator can manage focus and iris adjustments without interrupting the shooting process.
Can the VZ-PFI be used in broadcast and studio environments?
Yes, it is designed for professional broadcast, studio, and film production use. Its rear camera control functionality allows precise operation in controlled environments where consistent image settings are critical.
Does the VZ-PFI allow switching between auto and manual mode?
Yes, the controller supports switching between automatic and manual mode for both focus and iris, giving the operator full flexibility depending on the shooting situation.
Is the VZ-PFI compatible with cameras other than Panasonic?
The VZ-PFI is specifically designed for Panasonic cameras with a dual remote control connector. Compatibility with cameras from other manufacturers is not specified and cannot be guaranteed.
What type of connection does the VZ-PFI use to connect to the camera?
The VZ-PFI connects to the camera via the dual remote control connector found on compatible Panasonic models. No additional adapter is required for supported cameras.
Is the VZ-PFI suitable for use on a camera rig?
Yes, the compact dimensions and clamp mount make the VZ-PFI well suited for mounting on camera rigs, allowing easy access to focus and iris controls during handheld or supported rig operation.
