ToteVision LCD-703HD – 7" Control Monitor with HDMI
Includes Aluminium Sun Hood – for Broadcast and Production
Special price: € 389.00
incl. VAT
( instead of 499.00 )
326.89 € w/o vat
in stock
Shipping costarticle number: 9111 | manufacturer number: LCD-703 HD HDMI | EAN/UPC: 758263167779
The ToteVision LCD-703HD is a compact and robust video monitor for professional applications in broadcast, video surveillance, production and mobile signal monitoring.
Thanks to numerous video inputs and versatile signal support, the monitor is suitable for a wide variety of video sources and production environments.
The LCD-703HD is still one of the few monitors that offers S-Video, CVBS and component inputs alongside HDMI.
- HDMI input
- Composite / CVBS input
- Component input
- S-Video input
- RS-232 interface for external control
Supports the following formats among others:
- 480i / 480p
- 576i / 576p
- 720p
- 1080i / 1080p
- Underscan function for full image display
- Blue Gun function for display calibration
- LED backlight technology
- Robust all-metal housing
The LED backlight ensures a long service life, reduced power consumption and a uniform image display.
Various battery plates for professional battery systems are optionally available, including:
- SONY V-Mount
- Anton Bauer
- IDX
- SONY, Panasonic, JVC and Canon consumer batteries
Despite the native resolution of 800 × 480 pixels, the monitor is ideally suited for evaluating HD and Full HD signals and offers precise reproduction of a wide variety of video sources.

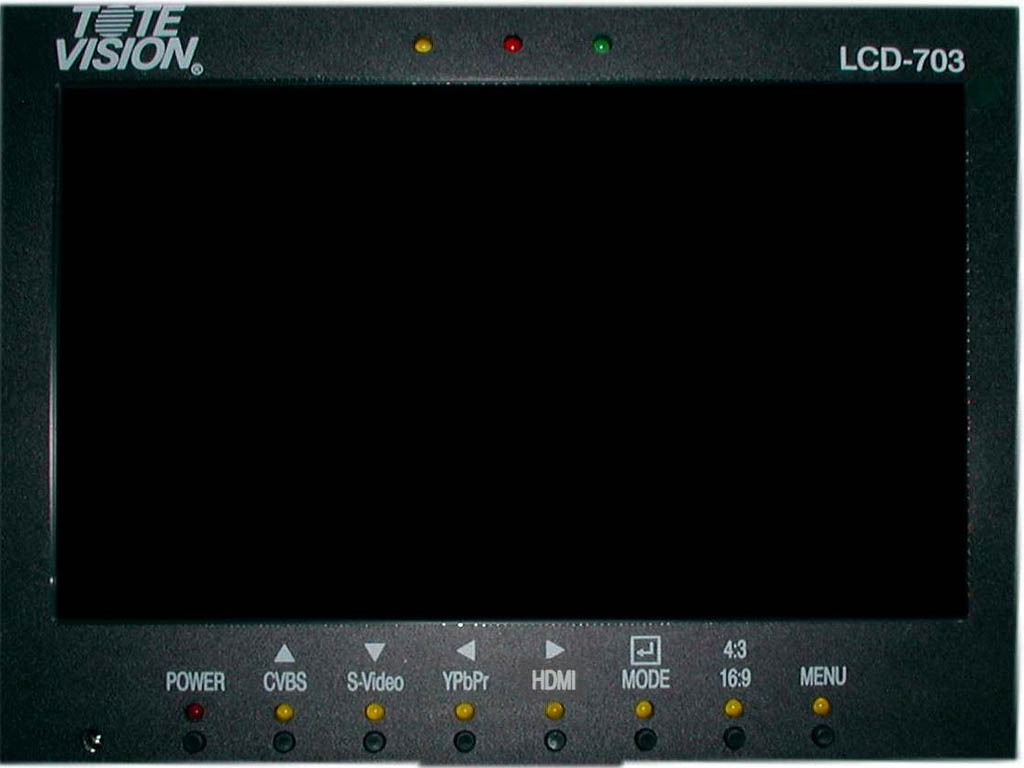

Real product can look different to picture
techn. Specs▲
| Display | 7" LCD Panel |
|---|---|
| Physical Resolution | 800 × 480 Pixel |
| Pixel Pitch | 0,19 × 0,19 mm |
| Pixel Structure | Stripe |
| Brightness | 350 cd/m² |
| Contrast Ratio | 300:1 |
| Number of Pixels | 1.2 Million |
| Viewing Angle (L/R/T/B) | 65° / 65° / 55° / 60° |
| Video Formats | NTSC / PAL (automatic detection) |
| HDMI | HDMI Input |
| Video Input Level | 1.0 Vp-p, 75 Ohm |

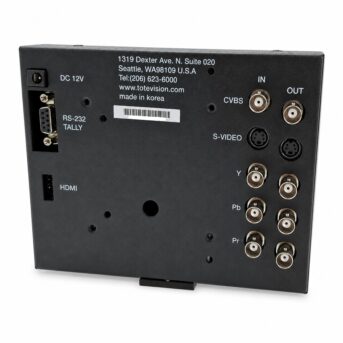

| Inputs / Outputs |
BNC Video IN/OUT, S-Video IN/OUT, Component IN/OUT, RS-232, Tally, DVI, DC-IN (2,1 mm) |
| Power Supply | 6 – 20 V DC ±20 % |
| Power Consumption | max. 4 W |
| Dimensions (W × H × D) | 175 × 133 × 25 mm |
| Height incl. Mounting Plate | approx. 138 mm |
| Weight | approx. 0,7 kg |
| Operating Temperature | −12 °C to +40 °C |
| Storage Temperature | −25 °C to +60 °C |
Questions & Answers▲
What video inputs does the ToteVision LCD-703HD support?
The monitor provides an HDMI input, a composite/CVBS input, a component input, and an S-Video input, making it compatible with a wide range of video sources and production setups.
What is the native screen resolution of this monitor?
The native resolution is 800 × 480 pixels on a 7-inch LCD panel with a pixel pitch of 0.19 × 0.19 mm and a stripe pixel structure.
Is the monitor suitable for evaluating HD and Full HD signals despite its resolution?
Yes. Even though the native resolution is 800 × 480 pixels, the monitor is well suited for assessing HD and Full HD video signals and delivers a precise representation of various video sources.
Which video signal formats are supported?
The monitor supports 480i, 480p, 576i, 576p, 720p, 1080i, and 1080p, covering the most common standard and high-definition broadcast formats.
Does the monitor include a sun hood?
Yes, a matching aluminum sun hood is included in the current package, making the monitor easier to use in bright outdoor or high-ambient-light environments.
What type of backlight technology does the monitor use?
The monitor uses LED backlight technology, which provides a long service life, reduced power consumption, and uniform image brightness across the entire display.
Is the housing suitable for demanding production environments?
Yes. The monitor features a robust all-metal housing that is designed to withstand the demands of professional broadcast, video production, and mobile signal monitoring applications.
What is the underscan function and when is it useful?
The underscan function displays the full video frame without any overscan cropping. This is particularly useful when checking the edges of an image for framing accuracy or technical issues.
What is the Blue Gun function used for?
The Blue Gun function displays only the blue color channel of the image, which is a standard method used to calibrate color saturation and hue levels on a video monitor.
Can the monitor be controlled via an external interface?
Yes. The monitor includes an RS-232 interface, which allows external control of monitor functions from a compatible control system or device.
Are battery power options available for field use?
Optional battery plates are available for use with professional battery systems including Sony V-Mount, Anton Bauer, and IDX, as well as consumer batteries from Sony, Panasonic, JVC, and Canon.
In which professional fields is this monitor typically used?
The LCD-703HD is designed for use in broadcast production, video surveillance, mobile signal monitoring, and general professional video production environments where a compact and reliable monitor is needed.
