Rolux RL-2KA 2-channel gold mount charger
Simultaneous charging of two camera batteries with 15V DC output
No returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 10424 | manufacturer number: RL-2KA

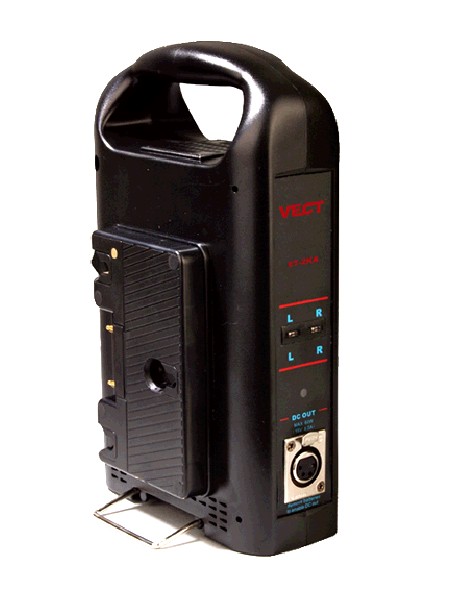

The Rolux RL-2KA is a professional 2-channel charger for lithium-ion camera batteries with Gold-Mount connection. It is compatible with Anton-Bauer batteries and other Gold-Mount batteries used in professional film, video, and broadcast applications.
Thanks to two independent charging channels, two camera batteries can be charged simultaneously. Each charging output operates at 16.8 V DC and 3 A charging current. This reduces waiting times and simplifies power management during longer productions.
In addition, the RL-2KA features a separate 15 V DC output with up to 60 W of power. This allows the charger to also be used as a power adapter for compatible cameras and other video equipment.
The two charging slots allow parallel charging of two compatible Gold-Mount batteries. Battery swapping between charging cycles is therefore not required.
The Rolux RL-2KA is designed for professional lithium-ion camera batteries and is particularly suited for production environments with regular battery changes, such as on set, in the studio, or during mobile video productions.
In addition to the two charging connections, the RL-2KA offers an additional DC output at 15 V and a maximum of 4 A. The available output power is up to 60 W.
This allows the unit to also be used for powering compatible cameras and other video equipment. Prerequisites are the appropriate operating voltage, the correct connection, and the permissible power consumption of the connected device.
Weighing approximately 940 g and with compact dimensions of 244 × 149 × 88 mm, the charger is easy to transport and integrate into existing production environments.
The wide-range mains input of 90 to 240 V AC at 50/60 Hz enables use with different power supplies. The specified operating temperature range extends from -10 °C to +40 °C.
- Professional 2-channel charger for Gold-Mount camera batteries
- Charge two batteries simultaneously
- 16.8 V DC / 3 A per charging channel
- Additional 15 V DC output with 4 A and a maximum of 60 W
- Compatible with Anton-Bauer and other Gold-Mount batteries
- Mains input 90–240 V AC, 50/60 Hz
- Compact design weighing approximately 940 g
techn. Specs▲
| Manufacturer | Rolux |
| Model | RL-2KA |
| Product Type | 2-Channel Camera Battery Charger |
| Battery Mount | Gold Mount / Anton Bauer compatible |
| Battery Type | Compatible Lithium-Ion camera batteries |
| Number of Charging Channels | 2, simultaneously usable |
| AC Input | 90–240 V AC |
| Mains Frequency | 50/60 Hz |
| Charging Voltage | 16.8 V DC |
| Charging Current | 3 A per channel |
| Charging Power | Max. 100 W according to manufacturer |
| Additional DC Output | 15 V DC / 4 A |
| Max. DC Output Power | 60 W |
| Operating Temperature | -10 °C to +40 °C |
| Dimensions | 244 × 149 × 88 mm |
| Weight | Approx. 940 g |
| Application | Film, video and broadcast production |
Note: Before connecting batteries or devices, compatibility, required voltage and permissible current draw must be verified. The maximum charging power of 100 W is stated by the manufacturer but is not clearly specified as power per charging channel.
Questions & Answers▲
Which batteries can the Rolux RL-2KA charge?
The Rolux RL-2KA is designed for compatible lithium-ion camera batteries with a Gold Mount connector. This includes suitable Anton Bauer batteries and other Gold Mount models, provided their electrical requirements are compatible with the charger.
Can the Rolux RL-2KA charge two batteries simultaneously?
Yes. The charger features two simultaneously usable charging channels. Each channel provides a charging voltage of 16.8 V DC at 3 A charging current.
Can the RL-2KA also be used as a power supply?
Yes. The RL-2KA has an additional 15 V DC output with a maximum of 4 A or 60 W. This can be used to power suitable cameras and other devices with a matching voltage and connector pinout.
Is the Rolux RL-2KA suitable for international use?
The charger supports input voltages from 90 to 240 V AC at 50/60 Hz. This allows it to be operated on different power grids. A suitable power cord or appropriate plug adapter may be required.
