Stainless steel tripod frame for Lilliput Q28 series
Compatible with Q28-FC and Q28-8K-FC
article number: 12621 | manufacturer number: LPQ28

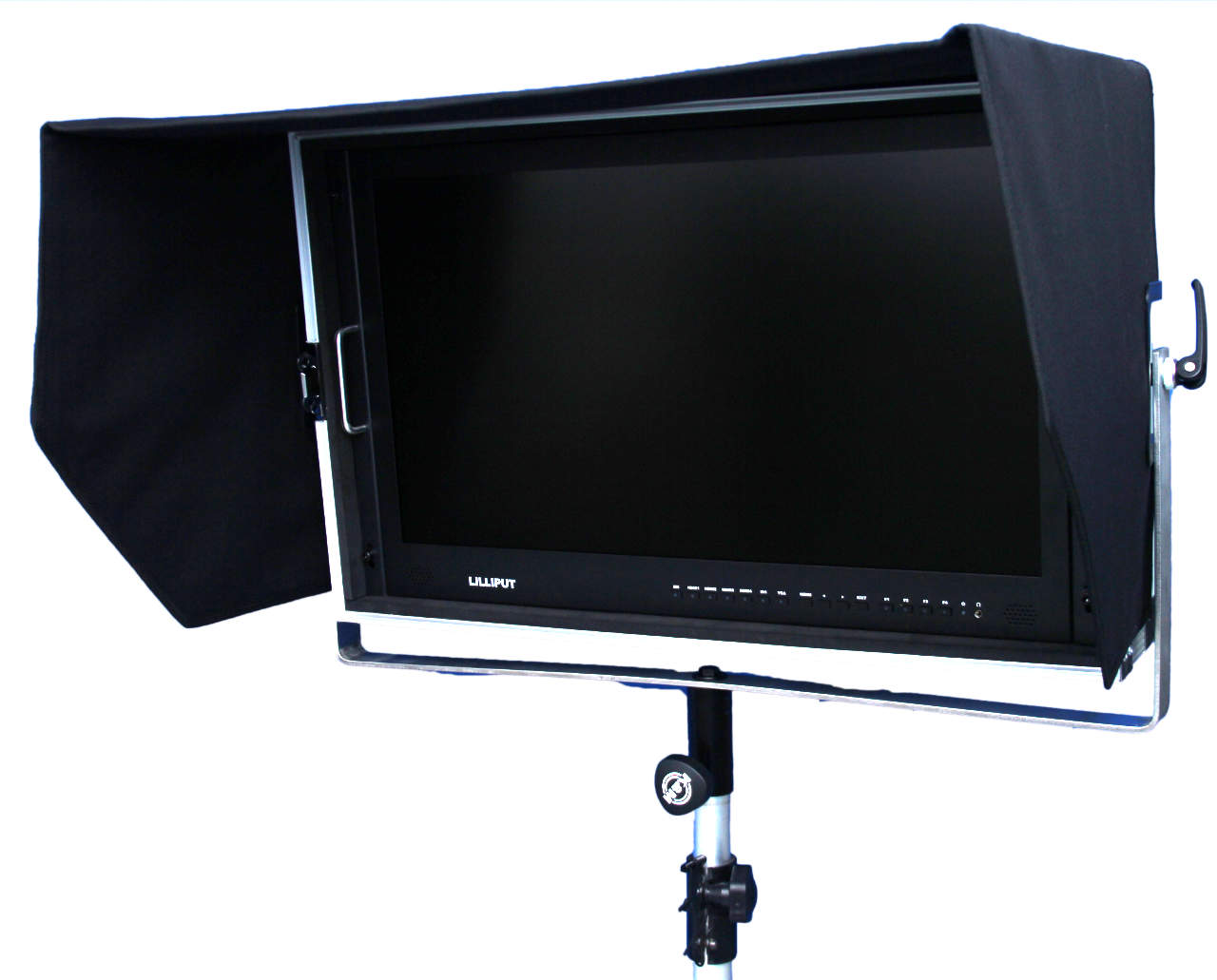

Professional stainless steel tripod frame for monitors of the Lilliput Q28 Series.
The frame enables stable mounting on tripods as well as flexible angle adjustment for optimal viewing conditions.
Made from 40 mm stainless steel profile for high load capacity in studio and outdoor use.
The sunshade is neatly fitted using an integrated cover frame.
Mounting via T-nuts – including installation instructions.
Note: Delivered without monitor and flight case.
- Stainless steel swivel frame
- Clamping screw set
- T-nuts
- Washers and spacer sleeves
- Cover frame for sunshade
- Tripod mount (optional)
- Installation instructions
Q28-FC, Q28-8K-FC
| A | 30mm fire brigade, THW standard spigot DIN 14640 |
|---|---|
| B | 28mm (1 1/8 inch) TV spigot |
| C | 16mm (5/8 inch) sleeve |
| D | 36mm (1 3/8 inch) speaker stand sleeve |
Real product can look different to picture
techn. Specs▲
| A | 30mm fire brigade, THW standard spigot DIN 14640 |
|---|---|
| B | 28mm (1 1/8 inch) TV spigot |
| C | 16mm (5/8 inch) socket |
| D | 36mm (1 3/8 inch) speaker stand socket |
Questions & Answers▲
Which monitor models are compatible with this tripod frame?
The frame is compatible with the Lilliput Q28-FC and Q28-8K-FC monitors. No other models of the Q28 series are officially confirmed as compatible.
What material is the tripod frame made of?
It is manufactured from stainless steel with a 40 mm profile, which provides high load capacity and durability for both studio and outdoor use.
What tripod mount options are available?
Three mount options can be selected: Option A is a 30 mm standard spigot according to DIN 14640, used by fire brigades and THW. Option B is a 28 mm (1 1/8 inch) TV spigot. Option C is a 16 mm (5/8 inch) spigot receiver.
Is the tripod mount included in delivery or must it be selected separately?
The tripod mount is an optional component that must be selected at the time of ordering. The desired mount type must be specified when placing the order.
Is the monitor included in the scope of delivery?
No, the monitor is not included. The delivery covers only the stainless steel swivel frame, clamping screw set, threaded inserts, washers, spacer sleeves, cover frame for the sunshade, and installation instructions.
Does the frame support angle adjustment?
Yes, the frame allows flexible angle adjustment so the monitor can be positioned at the optimal viewing angle depending on the setup and ambient conditions.
How is the sunshade attached to the frame?
The sunshade is fitted using an integrated cover frame that is included in the scope of delivery. It allows the sunshade to be attached neatly and securely to the monitor frame.
How is the monitor attached to the frame?
The monitor is mounted using threaded inserts, which are included in the delivery. Installation instructions are also provided to guide through the mounting process.
Is a flight case included with the delivery?
No, the flight case is not included. Only the components listed in the scope of delivery are supplied.
Is this frame suitable for outdoor use?
Yes, due to its stainless steel construction and 40 mm profile, the frame is designed for use in both studio environments and outdoor conditions where higher mechanical demands apply.
Which mount option is appropriate for fire brigade or THW applications?
Option A, the 30 mm standard spigot conforming to DIN 14640, is the designated choice for fire brigade and THW standard tripod systems.
Can the frame be used with standard broadcast tripods?
Yes, by selecting Option B with the 28 mm (1 1/8 inch) TV spigot, the frame can be mounted on standard broadcast and television tripods commonly used in professional video production.
