LILLIPUT T5U - 5 inch on-camera monitor with live streaming
Monitor for content creators and broadcast
Artikelnummer: 12513 | Hersteller-Nummer: T5U | EAN: 6950821602195

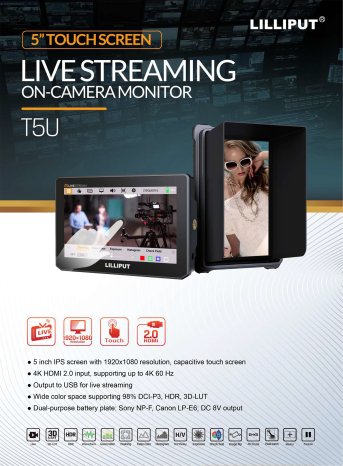

The LILLIPUT T5U is a professional 5 inch on-camera monitor with integrated live streaming functionality, specifically designed for content creators and broadcast professionals. The IPS display with 1920x1080 native resolution and capacitive touch operation enables precise image control and intuitive menu navigation. With its USB output for live streaming, the T5U turns any HDMI-capable camcorder or camera into a professional streaming solution.
The monitor supports an extended color gamut with 98% DCI-P3 coverage and 131% Rec.709, combined with HDR support for ST2084 and HLG standards. The integrated 3D LUT functionality offers 17 standard log profiles as well as 6 custom profiles for various camera log formats such as S-log2/3, ArriLog, C-log and V-log.

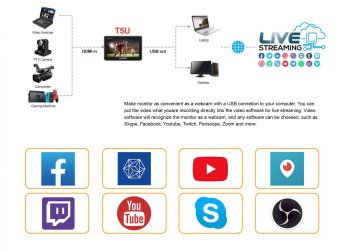

The T5U revolutionizes live streaming setups with its USB output, which routes the video signal directly to computers. Streaming software recognizes the monitor as a webcam, allowing professional cameras to be seamlessly integrated into platforms such as YouTube Live, Twitch, Facebook, Zoom, Skype and more. This solution eliminates complex capture cards and enables mobile live streaming with minimal equipment.
The system supports various USB resolutions up to 1920x1200 and is compatible with Windows 7/8/10, Linux and macOS. Compatibility with OBS Studio, Wirecast, CAMTASIA, Ecamm.live and other professional streaming tools makes the T5U a universal solution for content production.

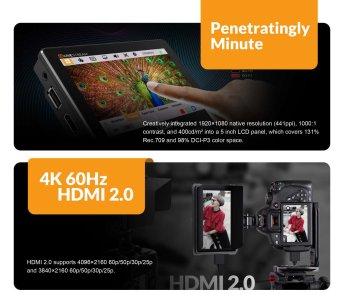

The HDMI 2.0 input supports 4K signals up to 60p in the formats 4096x2160 and 3840x2160 as well as all common HD formats. The high-resolution 5-inch IPS panel with 441ppi pixel density, 1000:1 contrast and 400cd/m² brightness ensures precise image assessment even in difficult lighting conditions.
Professional monitoring tools such as waveform, histogram, false color and focus peaking are quickly accessible via the touch interface. The capacitive touch operation enables direct navigation through menus and continuous adjustment of parameters using swipe gestures.

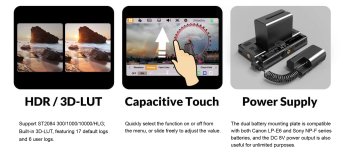

The T5U's dual battery plate is compatible with both Canon LP-E6 and Sony NP-F batteries and offers maximum flexibility with different camera systems. The additional DC 8V output can power external devices and expands the monitor's possible uses as a mobile power source.
Weighing just 190 grams and compact dimensions of 132x86x18.5mm, the T5U fits seamlessly into mobile production setups. The power consumption of a maximum of 7W (17W with active DC output) ensures long operating times and efficient energy use.
The T5U features a 3.5mm headphone output for 2-channel 48kHz 24-bit audio monitoring and supports 8-channel 24-bit HDMI audio. These audio features are particularly valuable for live streaming applications where audio monitoring is critical.
Included accessories include USB-A cable, HDMI-A-C cable, mini hot shoe mount, and horizontal and vertical sun shades. Standard hot-shoe mounting allows for easy attachment to various camera systems for professional on-camera monitoring solutions.
Real product can look different to picture
techn. Specs▲
| Panel | 5" IPS |
|---|---|
| Touch Screen | Capacitive |
| Physical Resolution | 1920×1080 |
| Aspect Ratio | 16:9 |
| Brightness | 400cd/m2 |
| Contrast | 1000:1 |
| Viewing Angle | 170°/ 170°(H/V) |
| HDR | ST 2084 300/1000/10000 / HLG |
| Supported Log Formats | Slog2 / Slog3, Arliog, Clog, Jlog, Vlog, Nlog or User... |
| LUT support | 3D LUT (cube format) |
| HDMI | 1×HDMI2.0 |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60... |
| HDMI | 8ch 24-bit |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Input Voltage | DC 7-24V |
| Power Consumption | ≤7W / ≤17W (DC 8V power output in operation) |
| Compatible Batteries | Canon LP-E6 & Sony F-series |
| Power Output | DC 8V |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -10°C~60°C |
| Dimensions(LWD) | 132×86×18.5mm |
| Weight | 190g |
| USB | 1×USB2.0 |
| USB | 1920×1200, 1920×1080, 1680×1050, 1600×1200, 1440×900, 1368×768, 1280×1024, 1280×960,1280×800, 1280×720, 1024×768, 1024×576, 960×540, 856×480, 800×600, 768×576, 720×576,720×480, 640×480, 640×360 |
| Support OS | Windows 7/8/10, Linux (Kernel version 2.6.38 and above), macOS (10.8 and above) |
| Software Compatibility | OBS studio, Skype, ZOOM, Teams, GoogleMeet, YoutubeLive, QuickTime Player, Facetime, Wirecast, CAMTASIA, Ecamm live, Twitch.tv, Potplayer, etc. |
| Compatible SDK | DirectShow (Windows), DirectSound (Windows) |
Questions & Answers▲
How does the T5U's live streaming feature work?
The monitor has a USB output that passes the video signal directly to computers. Streaming software recognizes the T5U as a webcam, allowing professional cameras to seamlessly integrate with platforms such as YouTube Live, Twitch, Facebook, Zoom and Skype.
What resolution does the T5U's display have?
The IPS display offers a native resolution of 1920x1080 with a pixel density of 441ppi on the 5-inch screen diagonal.
Which 4K formats are supported via HDMI?
The HDMI 2.0 input supports 4K signals up to 60p in the formats 4096x2160 and 3840x2160 as well as all common HD formats.
What is the color space coverage of the monitor?
The monitor supports an extended color gamut with 98% DCI-P3 coverage and 131% Rec.709 coverage for professional color reproduction.
Which HDR standards are supported?
The display supports HDR standards for ST2084 and HLG, combined with extended color space coverage for professional image assessment.
Which 3D LUT profiles are available?
The integrated 3D LUT functionality offers 17 standard log profiles as well as 6 custom profiles for various camera log formats such as S-log2/3, ArriLog, C-log and V-log.
With which operating systems is the T5U compatible?
The system is compatible with Windows 7/8/10, Linux and macOS for USB streaming functionality.
Which streaming software is supported?
The monitor is compatible with OBS Studio, Wirecast, CAMTASIA, Ecamm.live and other professional streaming tools for content production.
How is the monitor operated?
The display has capacitive touch operation, which enables precise image control and intuitive menu navigation.
What brightness and contrast does the display offer?
The IPS panel offers 400cd/m² brightness and a contrast ratio of 1000:1 for precise image assessment.
Do I need additional capture cards for live streaming?
No, the T5U's USB output eliminates complex capture cards and enables mobile live streaming with minimal equipment.
