Lilliput RM-1730S 17.3" Rackmount Monitor 1U
TRU pull-out monitor for broadcast & production
Special price: € 1349.00
incl. VAT
( instead of 1426.81 )
1.133.61 € w/o vat
in stock
Shipping costarticle number: 11714 | manufacturer number: RM-1730S | EAN/UPC: 6950821601297

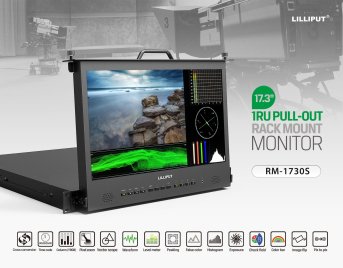

The LILLIPUT RM-1730S is a professional 17.3 inch rackmount monitor with extendable TRU pull-out construction, which is specifically designed for use in Broadcast environments, production studios and professional AV installations. The robust 1U rack housing enables space-saving integration into standard 19"racks while offering the flexibility of a fully extendable monitoring system.
The built-in monitoring tools such as waveform, vector scope and histogram support professional workflows for signal analysis and image control. The display shows various scopes and measurements simultaneously, enabling precise monitoring of video signals in critical production environments.
The monitor has extensive input options for various video signals and supports cross-conversion between different ones formats. The intelligent SDI monitoring function enables simultaneous monitoring of multiple signal sources and offers advanced analysis tools for professional video productions.
The integrated signal processing allows various video formats to be processed and output seamlessly, making the monitor a versatile solution for complex production environments.
The extendable construction allows easy access to the display when needed, while the monitor can be stored in the rack to save space when not in use. The sturdy metal housing is designed for continuous operation in professional environments and provides reliable protection for sensitive electronics.
The compact dimensions and slim design make the RM-1730S ideal for mobile production vehicles, edit suites and control rooms where every centimeter of rack space is valuable.
The monitor offers advanced functions for professional video editing and live production. The integrated measurement and analysis tools enable precise control of color balance, exposure and technical signal parameters directly at the workplace.
The user-friendly user interface allows quick configuration of various monitoring modes and display settings, which significantly improves the workflow in time-critical production environments.
Real product can look different to picture
techn. Specs▲
| Size | 17.3" |
|---|---|
| Resolution | 1920×10 80 |
| Brightness | 330cd/m² |
| Aspect ratio | |
| Contrast | 700:1 |
| Viewing angle | 178°/178°(H/V) |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| DVI | 1 |
| LAN | 1 |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60 |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Studs | 3.5mm |
| Built-in Speakers | 2 |
| Rep Power output | ≤32W |
| DC In | DC 10-16V |
| Operating temperature | -20°C~60°C |
| Storage temperature | -30°C~70°C |

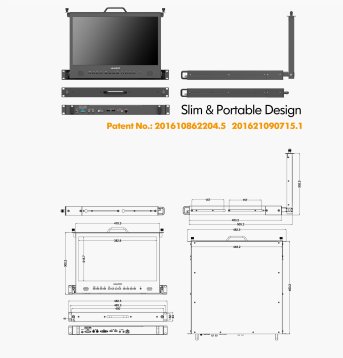

| Dimension (LWD) | 482.5×44×507.5mm |
| Weight | 8.6 kg (with suitcase) |
Questions & Answers▲

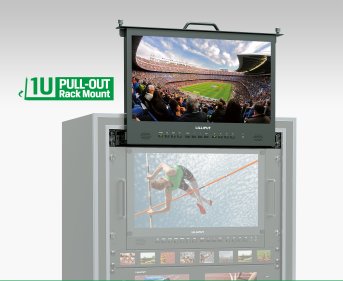

What does TRU pull-out mean on this rackmount monitor?
The TRU pull-out design allows the monitor to be completely pulled out of the rack when needed. When not in use, it can be stored in a 19-inch rack to save space. This design is particularly practical in environments where available space is limited.
What video inputs are available?

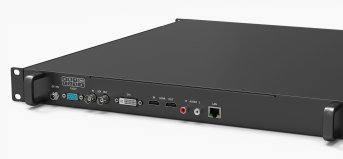

The RM-1730S offers SDI, HDMI and DVI inputs. This allows various signal sources to be connected, as are typically used in professional broadcast and production environments.
Which monitoring tools are integrated into the monitor?
The monitor has integrated tools such as waveform, vectorscope and histogram. These enable precise signal analysis and image control directly on the device, without the need for additional external measuring or analysis devices.
How many rack height units does the monitor occupy in a 19-inch rack?
The RM-1730S occupies one Height unit, i.e. 1U, in a standard 19-inch rack. Despite the compact installation height, it offers a display diagonal of 17.3 inches.
Is the monitor suitable for continuous operation?
The sturdy metal housing is designed for continuous operation in professional environments. It reliably protects the electronics and makes the monitor suitable for continuous use in production studios, edit suites and control rooms.
Can the monitor perform cross-conversion between different video formats?
Yes, the RM-1730S supports Cross-conversion between different video formats. The integrated signal processing enables various formats to be processed and output seamlessly, which makes it easier to use in complex production environments.
For which areas of application is the RM-1730S particularly suitable?
The monitor was specifically designed for broadcast environments, production studios and professional AV installations developed. Thanks to its compact dimensions, it is also suitable for mobile production vehicles, edit suites and control rooms where space saving plays an important role.
Can multiple signal sources be monitored at the same time?
The intelligent SDI monitoring function enables the simultaneous monitoring of several Signal sources. In addition, various scopes and measurements can be displayed on the display at the same time, which allows comprehensive signal control in a single step.
What display size does the monitor offer?
The display has a diagonal of 17.3 inches. This size offers enough space for the simultaneous display of video images and analysis tools such as waveform or vectorscope.
What material is the housing made of?
The housing is made of sturdy metal. This design ensures mechanical robustness and offers reliable protection for the sensitive electronics, even during frequent transport or intensive production operations.
Is the monitor suitable for mobile production vehicles?
Yes, the compact dimensions, the slim design and the space-saving 1U rack design makes the RM-1730S suitable for use in mobile production vehicles, where every centimeter of rack space counts.
What advantage does the integrated signal processing offer over a simple studio monitor?
Thanks to the integrated signal processing Waveform, vectorscope, histogram and cross-conversion support, the RM-1730S takes on tasks that would otherwise require separate devices. This reduces the amount of equipment and simplifies the setup of professional production environments.
Can the monitor be integrated into an existing standard 19-inch rack?
Yes, the RM-1730S is designed for direct integration into Designed for standard 19-inch racks. With an installation height of 1U, it fits into existing rack infrastructures to save space without requiring any structural adjustments.
