Lilliput Q7 Pro 7 inch preview monitor HDR 3D LUT
Professional video monitor with SDI HDMI cross conversion
Special price: € 449.00
incl. VAT
( instead of 593.81 )
377.31 € w/o vat
in stock
Shipping costarticle number: 12076 | manufacturer number: Q7 Pro | EAN/UPC: 6950821601518

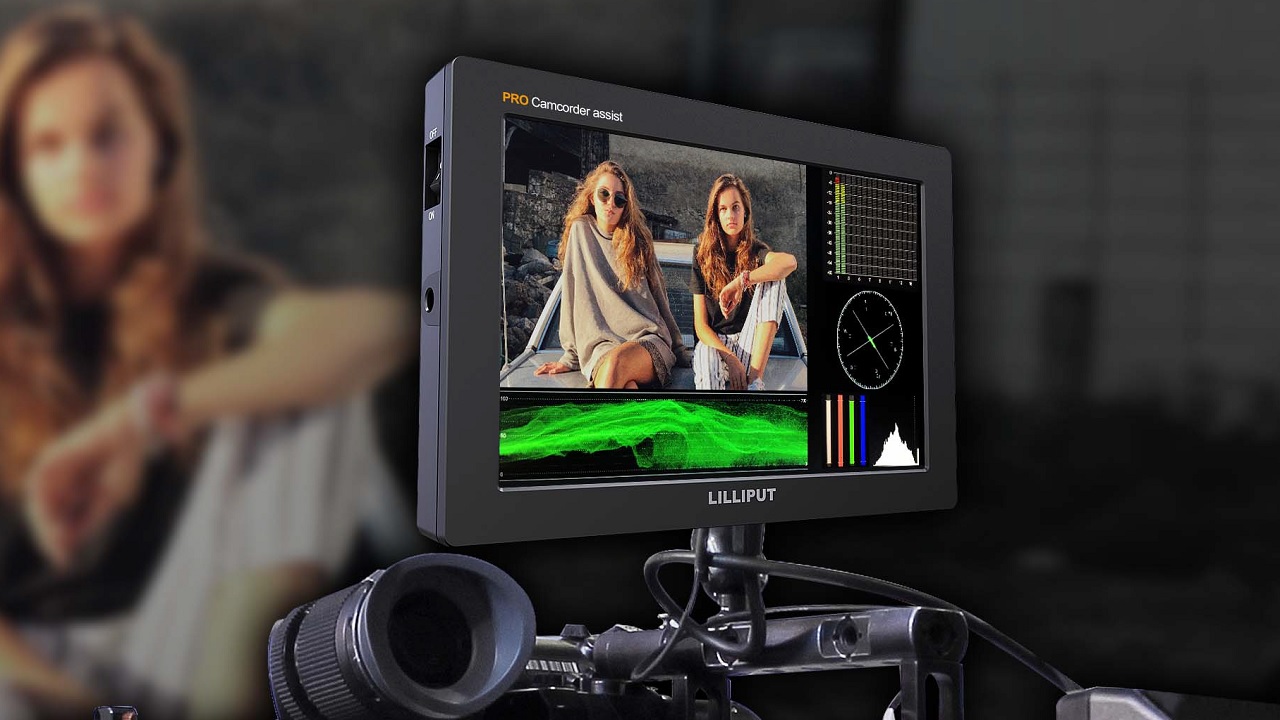

The Lilliput Q7 Pro is a 7-inch preview monitor designed specifically for professional camera operators and videographers. The compact display serves as a reliable companion for camera recordings and offers expanded color representation with an improved color gamut for precise image control during of recording.
The monitor supports HDR playback and thus enables a realistic display of scenes with a high dynamic range. The HDR function displays both bright and dark image areas in great detail, which is particularly important for demanding Lighting conditions are also an advantage. In addition, the Q7 Pro has precise color calibration, which ensures accurate color reproduction Look-up tables for different color styles and image looks. The monitor offers different gamma settings and allows you to load your own 3D LUTs. The LUT preview shows different color interpretations of the same shot in real time, which greatly facilitates creative image design during production.
The Q7 Pro has SDI and HDMI cross-conversion functions that enable flexible signal routing between different devices. The device can simultaneously process HDMI and SDI signals and convert between the formats.
For professional image analysis, the monitor offers various monitoring tools such as waveform display, vectorscope and histogram. These functions support precise exposure control and color balance. Camera auxiliary functions are also available, which make advanced camera functions accessible directly via the monitor and the workflow optimize.
Real product can look different to picture
techn. Specs▲
| Size | 7" |
|---|---|
| Resolution | 1920 x 1200 |
| Brightness | 500cd/m² |
| Aspect Ratio | 16:10 |
| Contrast | 1000:1 |
| Displays Angle | 170°/170°(H/V) |
| Anamorphic de-squeeze | 2x, 1.5x, 1.33x |
| HDR | ST2084 300/1000/10000/HLG |
| Supported protocol Formats | Sony SLog / SLog2 / SLog3... |
| Look-up table (LUT) support | 3D LUT (.cube Format) |
| Technology | Calibration according to Rec.709 with optional calibration Unit |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60 |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2-channel 24-bit |
| ear Socket | 3.5 mm – 2 channels 48 kHz 24-bit |
| Built-in Speakers | 1 |
| In operation Power | ≤12W |
| DC In | DC 7–24 V |
| Compatible batteries | NP-F series and LP-E6 |
| Input voltage (Battery) | 7.2 V nominal |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |
| Dimensions (LWD) | 182×124×22mm |
| Weight | 405 g |
Questions & Answers▲
For which users is the Lilliput Q7 Pro designed?
The Lilliput Q7 Pro was developed specifically for professional camera operators and videographers who require reliable and precise image control while recording.
What screen size is the monitor?
The monitor has a 7-inch display and is therefore compact enough for mobile use on set, but still offers enough area for precise image assessment.
What HDR functions does it offer Monitor?
The monitor supports HDR playback and therefore realistically displays scenes with a high dynamic range. Both bright and dark image areas are reproduced in great detail, which is particularly advantageous in demanding lighting conditions.
What is the 3D LUT function and how can it be used?
The 3D LUT function enables the use of different look-up tables for different color styles and image looks. Custom 3D LUTs can be loaded into the monitor, and the LUT preview displays different color interpretations of the same shot in real time.
What gamma settings are available?
The monitor offers various gamma settings that allow for flexible adjustment enable the image display. This function supports common log formats and facilitates creative image design directly during production.
What does SDI-HDMI cross-conversion mean and what benefits does it have?
SDI-HDMI cross-conversion enables flexible signal forwarding between different devices. The monitor can simultaneously process HDMI and SDI signals and convert between these formats, which significantly increases compatibility with different camera types and production environments.
What ports are available on the monitor?
The monitor has both SDI and HDMI ports. This means that it can be connected to a wide range of professional and semi-professional cameras as well as other production equipment.
Which monitoring tools are available for image analysis?
For professional image analysis, the monitor offers a waveform display Vectorscope and a histogram. These tools help with precise exposure control and correct color balance while shooting.
How does the monitor support color reproduction?
The monitor features precise color calibration and an extended color space, which together ensure accurate color reproduction. This allows the image quality to be reliably assessed during recording.
Can the monitor load its own LUT files?
Yes, the monitor allows you to load your own 3D LUT files. This means that individual color profiles or production-specific looks can be previewed directly on the monitor.
Is the monitor suitable for use in difficult lighting conditions?
[Thanks to the HDR support and the detailed representation of both bright and dark image areas The monitor is particularly suitable for shooting situations with challenging or changing lighting conditions.
Which camera auxiliary functions are available?
The monitor offers various camera auxiliary functions that provide additional auxiliary functions for image control. These support the camera operator in professionally assessing the image directly on set.
