Lilliput Q43-8K – 43-inch broadcast monitor with 12G-SDI
UHD monitor for studio, direction and post-production
Special price: € 2799.00
incl. VAT
( instead of 3092.81 )
2.352.10 € w/o vat
product already ordered
Shipping costarticle number: 12722 | manufacturer number: Q43 | EAN/UPC: 6950821604571
The Lilliput Q43-8K is a professional 43-inch broadcast monitor for studio, OB van, direction and post-production. With its high-resolution UHD display, support for 12G-SDI, HDMI 2.0, DisplayPort and Quad-Link SDI, and professional monitoring features, this monitor is ideal for demanding 4K and 8K workflows. The combination of accurate color reproduction, HDR support and robust construction makes it a reliable solution for everyday use in broadcast and production environments.
The high-quality IPS panel with a resolution of 3840 × 2160 pixels delivers a detailed display, high color fidelity and stable viewing angles of 178°. The monitor supports HDR with PQ and HLG, processes 3D LUTs in.cube format and enables calibration for Rec.709 and Rec.2020. This makes the Q43-8K ideal for color-critical applications in film, television and post-production.
For precise image and signal control, professional analysis functions such as Waveform, Vectorscope, Focus are available Peaking, Zebra, False Color and Audio Level Meter are available. These tools support an exact assessment of exposure, focus, color and audio signal directly on the monitor.
The Lilliput Q43-8K is designed for professional signal processing in modern production environments. By supporting 12G-SDI in single, dual and quad-link configurations as well as HDMI 2.0 and DisplayPort a variety of current signal sources can be integrated. This makes the monitor suitable for broadcast cameras, control stations, playback systems and post-production workflows.
The integrated multi-viewer function enables the simultaneous display of several input signals in a quad split. This ensures a greater overview in directing, control and monitoring applications and supports efficient workflows in live productions and in the studio.

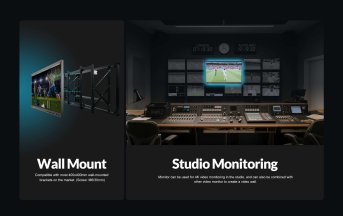

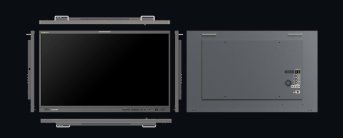

The sturdy metal housing ensures effective heat dissipation and is designed for professional continuous use. The monitor can be operated via DC 12 V to 24 V, making it flexible for different installation environments. Thanks to the option of rack, wall or table mounting, the Q43-8K can be optimally integrated into studios, control rooms, control rooms and mobile production environments.
Its robust construction, professional features and concept designed for continuous operation make the monitor a powerful solution for daily use in demanding environments Broadcast environments.
The Lilliput Q43-8K impresses with high-resolution image display, flexible 12G-SDI, HDMI and DisplayPort connections as well as extensive Monitoring and analysis functions. This makes this 43-inch broadcast monitor a strong choice for professional applications in studios, control rooms, OB vans and post-production, where precise image control, high compatibility and reliable continuous operation are crucial.
Real product can look different to picture
techn. Specs▲
Technical data
| Display | Panel | 43″ IPS panel |
|---|---|---|
| Resolution | 3840 × 2160 UHD | |
| Brightness / contrast | High luminance / strong contrast for studio use | |
| Viewing angle | 178° (H / V) | |
| Color spaces | Rec.709 / Rec.2020 / HDR (PQ / HLG) | |
| Signal processing | 3D LUT support | .cube format (customizable) |
| Monitoring tools | Waveform, Vectorscope, False Color, Peaking, Zebra, Audio Meter and much more. m. | |
| Multi-Viewer | 2 × 2 | |
| Functions | Monitoring and analysis functions | 3D LUTs, Audio Vector, Check Field (Red, Green, Blue), Color Bar, Color Gamut, Color Temperature Adjustment, Exposure, False Color, Freeze, Gamma, H/V Delay, HDR, Histogram, Level Meter, Marker, Peaking Focus Assist, Pixel Zoom, Pixel to Pixel, Remote, Time Code, Vector Scope, Waveform |

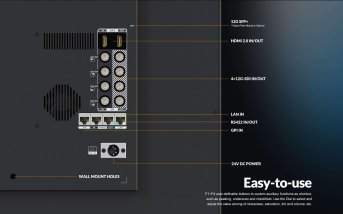

| Inputs | SDI | 4 × 12G-SDI, 4 × 3G-SDI |
| SFP+ | 1 × 12G-SFP+ | |
| HDMI | 1 × HDMI 2.0 | |
| USB | 1 × USB (for 3D LUTs) | |
| RS422 | 1 × RS422 | |
| GPI / Tally | 1 × GPI Port (Tally) | |
| Network | 1 × Ethernet (RJ-45) | |
| Outputs | SDI | 4 × 12G-SDI, 4 × 3G-SDI |
| HDMI | 1 × HDMI 2.0 | |
| RS422 | 1 × RS422 | |
| Audio | 1 × 3.5 mm stereo headphone jack | |
| Speakers | Built-in speaker | |
| Power supply | Supply | DC 12–24 V / via power supply 24 VDC |
| Power consumption | ≤ 75 W / approx. 77 W max. | |
| Dimensions and weight | Dimensions | approx. 968.5 × 604.9 × 48.5 mm (W × H × D) |
| Alternative dimensions | approx. 995 × 595 × 70 mm | |
| Weight | approx. 14.5 kg | |
| Alternative weight information | approx. 16 kg | |
| Scope of delivery | Standard accessories | Power supply, feet for table installation, USB stick for 3D LUTs |
| Optional accessories | Extension | Fiber optic module (SFP) |
[[2 63]]
Questions & Answers▲
What screen size and resolution does the Lilliput Q43-8K offer?
The monitor has a 43-inch IPS panel with a native resolution of 3840 × 2160 pixels (UHD 4K). The panel offers stable viewing angles of 178° and high color fidelity for color-critical applications.
What video interfaces are available on the Lilliput Q43-8K?
The monitor supports 12G-SDI in single, dual and quad-link configurations as well HDMI 2.0 and DisplayPort. This allows broadcast cameras, control stations, playback systems and post-production workflows to be connected.
Which HDR formats are supported?
The Lilliput Q43-8K supports HDR with the transmission functions PQ (Perceptual Quantizer) and HLG (Hybrid Log-Gamma), as used in modern film and broadcast workflows.
Can the monitor be operated with 3D LUTs?
Yes, the monitor processes 3D LUTs in.cube format. These can be loaded for color calibration and for production-accurate representation, for example for color spaces such as Rec.709 or Rec.2020.
Which color spaces are supported for calibration?
The monitor supports calibration for Rec.709 and Rec.2020 and is therefore suitable for both classic HD broadcast workflows as well as for modern wide-color gamut productions in film and television.
What professional analysis functions are available?
For the image and signal control, waveform, vectorscope, focus peaking, zebra, false color and an audio level meter are available. These tools enable precise assessment of exposure, focus, color and audio signal directly on the monitor.
What is the multi-viewer function and what is it used for?
The integrated multi-viewer function enables the simultaneous display of several signal sources on one screen. It is typically used in control rooms and production environments where multiple camera feeds or sources need to be monitored simultaneously.
For which locations is the monitor designed?
The Lilliput Q43-8K is for use in studios, control rooms, OB vans and Post-production designed. The robust construction and professional monitoring functions make it suitable for daily operation in broadcast and production environments.
Is the monitor suitable for 8K signals?
By supporting 12G-SDI in quad-link configuration, the Monitor can be used in 8K workflows. The native display resolution is 3840 × 2160 pixels (UHD 4K).
What panel technology is used in the Lilliput Q43-8K?
The monitor uses an IPS panel that ensures even Color representation, high color fidelity and stable viewing angles of 178° in the horizontal and vertical directions are known.
Does the monitor support the display of Rec.2020 content?
Yes, the monitor supports the Rec.2020 color space and can be used for this be calibrated. This makes it suitable for productions aimed at wide-color gamut output for modern broadcast standards.
Can the Lilliput Q43-8K be used directly in 4K camera workflows?
Yes, through the support of 12G-SDI single-link and HDMI 2.0 can be connected directly to current 4K broadcast cameras and playback systems. The monitor is therefore suitable for 4K productions from recording to post-production.
