Lilliput HT7S 7" Touch Monitor – 2000 Nits
On-camera monitor with HDR, SDI & LANC control
Special price: € 389.00
incl. VAT
( instead of 403.41 )
326.89 € w/o vat
in stock
Shipping costArtikelnummer: 12481 | Hersteller-Nummer: HT7S | EAN: 6950821602485

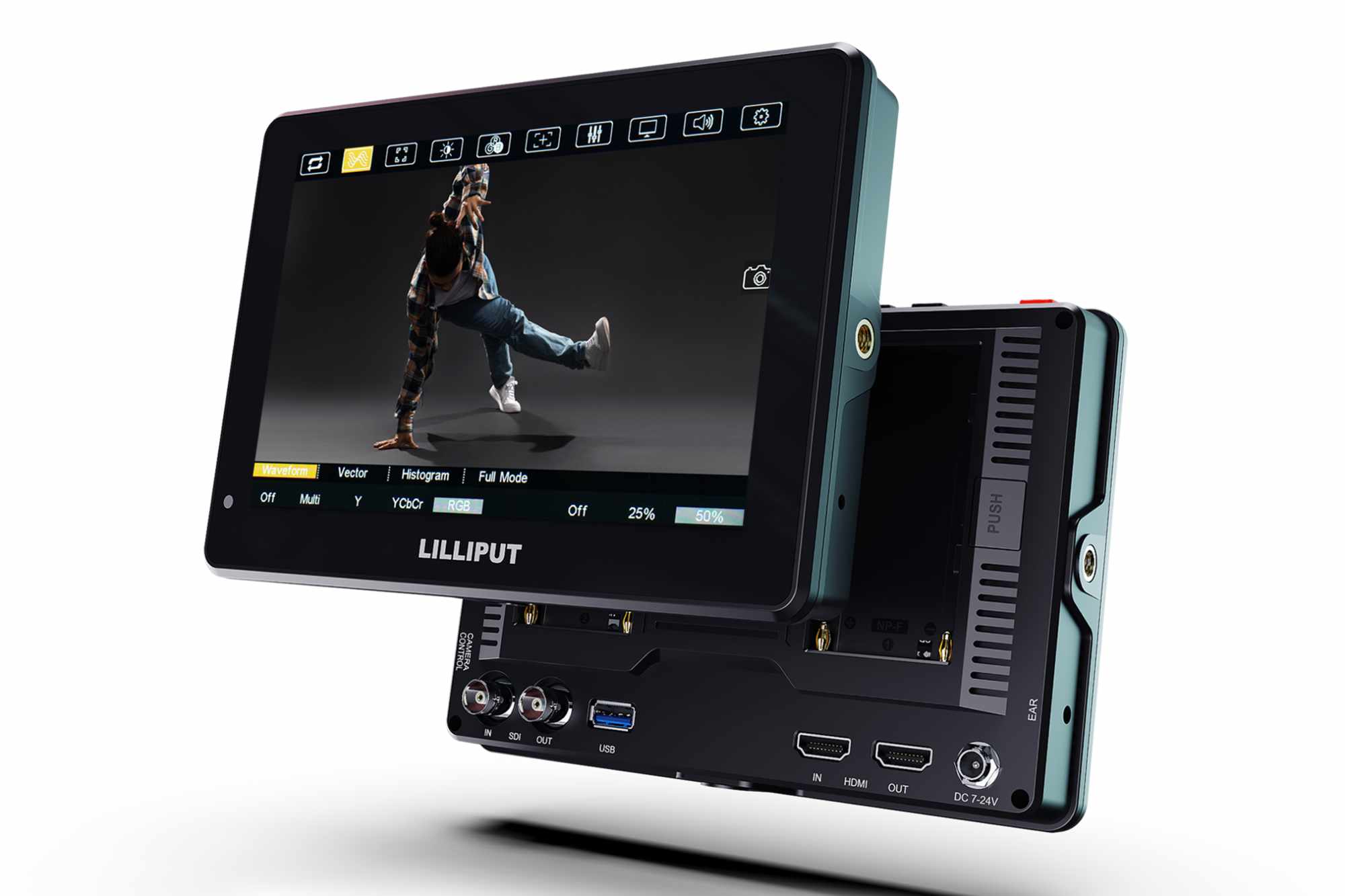

The LILLIPUT HT7S is a 7 inch ultra-bright touch camera control monitor that, with its exceptional brightness of 2000 nits, supports professional video productions even in difficult lighting conditions. The capacitive touch display with 1920×1200 pixel resolution in 16:10 format enables direct control of camera functions and offers precise image control for filmmakers, content creators and broadcast professionals.
The exceptional display brightness makes the monitor perfectly readable even in direct sunlight outdoors. The auto-dimming feature automatically adjusts the brightness to the ambient conditions and ensures optimal visibility in any shooting situation.
The HT7S supports HDR formats including HLG and ST2084 in 300, 1000 and 10000 nit variants for extended dynamic range representation. Color calibration defaults to 100% BT.709 and is supported by the PRO/LTE version of Light Illusion's ColourSpace CMS, ensuring professional color accuracy.
The built-in 3D LUT function offers 17 preset and 6 custom LUTs for flexible color correction and creative image editing directly on the monitor. The contrast ratio of 1200:1 and the wide viewing angle of 160° horizontally and vertically ensure consistent image quality from different viewing angles.
The Touch operation allows quick access to important camera functions and monitoring tools directly via the display. Users can access menus, adjust camera settings and switch between different display functions with simple touches. If necessary, the touch function can be deactivated using the power button.
The monitor can be connected to Sony video cameras via the LANC cable in order to control camera functions such as focus, zoom, iris control and recording start/stop directly from the monitor. This integration enables an efficient workflow in professional video productions.
The monitor offers a variety of professional analysis tools for image control, including waveform display, histogram, false color, focus peaking and exposure tools. The Anamorphic De-Squeeze function supports various scaling factors from 1.33x to 2x for working with anamorphic lenses.
Additional functions such as Vector Scope, Level Meter, Pixel Zoom, H/V Delay, Check Field, Image Flip, Marker, Freeze and Timecode Display are available for precise image analysis and professional production needs. The zoom functions enable detailed image viewing to ensure sharpness.
The HT7S features HDMI 2.0 and 3G-SDI inputs and outputs for maximum compatibility with professional cameras and production equipment. HDMI supports signals up to 2160p 60Hz, while 3G-SDI handles formats up to 1080p 60Hz. Audio is output via 8-channel 24-bit HDMI or the 3.5mm headphone jack with 2-channel 48kHz 24-bit.
The monitor works with a flexible power supply of DC 7-24V with a maximum consumption of 16W. The NP-F Battery Plate Adapter System allows power from standard camera batteries while also being able to power external devices. The support for wireless video transmission expands the possible uses for wireless transmission solutions.
- Articulating head for the hot shoe and 1/4 inch
- Mini HDMI (C) to HDMI cable (A)
- Lanc cable
- USB stick with instructions
- NO batteries included!
Real product can look different to picture
techn. Specs▲
Technical Data
| Display | Panel | 7"LCD |
|---|---|---|
| Physical Resolution | 1920 × 1200 | |
| Aspect Ratio | 16:10 | |
| Brightness | 2000 nit | |
| Contrast | 1200:1 | |
| Viewing angle | 160° / 160° (H/V) | |
| Color space | 100% BT.709 | |
| HDR Support | HLG, ST2084 300/1000/10000 | |
| Signal input | SDI | 1 × 3G-SDI |
| HDMI | 1 × HDMI 2.0 | |
| Signal loop Output | SDI | 1 × 3G-SDI |
| HDMI | 1 × HDMI 2.0 | |
| Supported formats | SDI | 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 720p 50/60 |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | |
| Audio In/Out | HDMI | 8 ch 24-bit |
| Studs | 3.5 mm - 2 channels 48 kHz 24-bit | |
| Built-in Speakers | 1 | |
| Power | Input voltage | DC 7-24 V |
| Power consumption | ≤ 16 W (15 V) | |
| Environment | Operating temperature | 0 °C - 50 °C |
| Storage temperature | -20 °C - 60 °C | |
| Other | Dimensions (L × W × H) | 186 × 128 × 29 mm |
| Weight | 520 g |
Questions & Answers▲
What brightness does the HT7S monitor have and is it suitable for outdoor use?
The HT7S achieves an outstanding brightness of 2000 nits and can also be viewed outdoors without anti-glare protection.
What resolution does the HT7S have and can it process 4K signals?
The display has a WUXGA resolution of 1920 x 1200 pixels. The HDMI 2.0 input can process 4K signals up to 3840x2160 at 50/60 Hz, which are scaled to the Full HD panel.
What inputs and outputs does the monitor have?
The monitor has an HDMI input and output (HDMI 2.0), a 3G-SDI input and output for Full HD up to 50/60 Hz as well as a 3.5 mm headphone jack and built-in speakers.
Can the HT7S remotely control cameras?
Yes, the HT7S is the first Lilliput with LANC camera control. Functions such as zoom, focus, aperture and recording start/stop can be controlled via touchscreen. The available functions vary depending on the camera model.
What professional monitoring functions does the monitor offer?
The monitor offers peaking, histogram and false color functions for professional image monitoring. In addition, 3D LUT .cube functions with upload options are available.
How is the monitor powered?
The power supply is via DC 7-24V through a 5.5/2.1 mm DC socket with 12V power supply or battery. The monitor also has 2 slots for Sony NP-F batteries. The energy consumption is less than 16 watts.
Can you focus on 4K images with the monitor?
Yes, although 4K images are scaled to the Full HD panel, every single pixel of the 4K signal can be displayed using the pixel zoom function. This is the only way to properly focus the 4K image.
What touch functions does the HT7S offer?
All control functions such as brightness, volume, zoom-in and pan zoom can be controlled by touch. In addition, the LANC camera control can be conveniently operated via touchscreen.
Is the monitor suitable for mobile use on the camera?
Yes, thanks to the very high quality housing and its low weight, this monitor can easily be mounted on the camera's hot shoe. A new joint head is included in delivery.
What comes with the HT7S?
The scope of delivery includes a new joint head, a mini HDMI to HDMI cable, a LANC cable and a USB stick with instructions. Batteries are not included.
