Lilliput HT5S 5 inch HDR monitor 2000 nits
Camera monitor with HDMI 2.0, 3G-SDI and touchscreen
Special price: € 299.00
incl. VAT
( instead of 332.01 )
251.26 € w/o vat
in stock
Shipping costarticle number: 12502 | manufacturer number: HT5S | EAN/UPC: 6950821602560

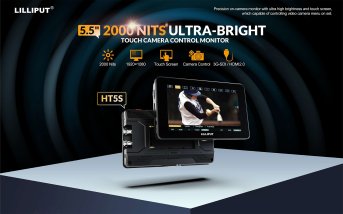

The Lilliput HT5S is a professional HDR LCD video monitor with brilliant WUXGA resolution (1920 x 1080 pixels), high brightness of 2000 Nits as well as HDMI and 3G-SDI inputs and outputs. Thanks to functions such as peaking, histogram, false color and zebra, the monitor is ideal for camera monitoring, video production and mobile outdoor use.
The HDMI inputs correspond to the HDMI 2.0 standard and support 4K signals up to 3840 x 2160 pixels at 50/60 Hz. 4K content is scaled to the full HD display in high quality.
Thanks to the robust housing, low weight and flexible power supply, the HT5S is a versatile on-camera monitor for DSLR, system, cinema and broadcast cameras.

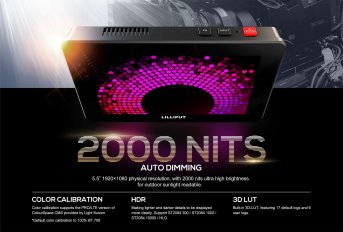

- Extremely high brightness of 2000 nits – also very easy to read outdoors
- HDR support for HLG and ST2084
- 3D LUT.cube support with uploading your own LUTs
- Camera control via LANC directly via touchscreen
- Can be controlled depending on the camera: zoom, focus, aperture, recording start/stop

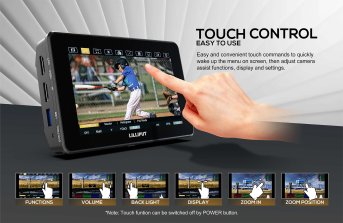

- Touchscreen control for brightness, volume, zoom and menu functions
- Pixel-to-pixel zoom for precise focusing of 4K signals
- Lightweight and stable housing for mounting on a hot shoe or rig
- Optional power supply unit available separately
- Display size: 5 inches
- Resolution: 1920 x 1080 pixels (Full HD / WUXGA)
- Image format: 16:9
- Color space: 100% BT.709
- Brightness: 2000 cd/m²
- Contrast ratio: 1000:1
- Viewing angle: 160° / 160°
- HDR modes: HLG, ST2084 300 / 1000 / 10000
- Histogram display
- Audio level display
- Peaking function
- False color display
- Exposure / Zebra Function
- Pixel-to-pixel representation
- Mirror image

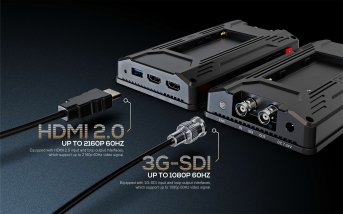

- 1 x HDMI input/output (HDMI 2.0 to 4K 50/60 Hz)
- 1 x SDI input/output (3G-SDI to Full HD 50/60 Hz).
- Operation via power supply or battery possible
- 1 x battery holder for Sony NP-F batteries
- Power consumption maximum 14 watts
- New joint head
- Mini HDMI (Type D) to HDMI (Type A) cable
- LANC cable
- USB stick with operating instructions
- No batteries included
- Power supply optionally available
Real product can look different to picture
techn. Specs▲
| Panel | 5.5"LCD |
|---|---|
| Physical Resolution | 1920×1080 |
| Aspect Ratio | 16:9 |
| Brightness | 2000 nit |
| Contrast | 1000:1 |
| Display Angle | 160°/ 160°(H/V) |
| Color space | 100% BT.709 |
| HDR supported | HLG, ST2084 300/1000/10000 |
| SDI | 1×3G-SDI |
| HDMI | 1×HDMI 2.0 |
| SDI | 1×3G-SDI |
| HDMI | 1×HDMI 2.0 |
| SDI | 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60... |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60... |
| HDMI | 8ch 24-bit |
| Ear jack | 3.5 mm – 2 channels 48 kHz 24-bit |
| Built-in Speaker | 1 |
| Input voltage | DC 7-24V |
| Power Consumption | ≤14W (15V) |
| Operation Temperature | 0°C~50°C |
| Store temperature temperature | -20°C~60°C |
| Dimension (LBH) | 154.8 mm × 93.8 mm × 26.5 mm |
| Weight | 310g |
Questions & Answers▲
What resolution does the HT5S display have?
The display has a full HD resolution of 1920 x 1080 pixels with a screen diagonal of 5 inches and an aspect ratio of 16:9.
What maximum 4K resolution is supported via HDMI?
The HDMI 2.0 input supports 4K signals with a resolution of up to 3840 x 2160 pixels at 50 or 60Hz supported. The signal is scaled to the full HD display in high quality.
How bright is the monitor and is it suitable for outdoor use?
The monitor achieves a brightness of 2000 nits, which is good even in direct sunlight Readability enabled. It is therefore well suited for mobile outdoor use.
Which video interfaces are available?
The HT5S has HDMI 2.0 and 3G-SDI, each as input and output. This makes it compatible with both HDMI-capable and SDI-based broadcast cameras.
Which HDR standards are supported?
The monitor supports HDR according to HLG as well as ST2084 in levels 300, 1000 and 10000. This allows HDR recordings to be assessed directly on the monitor.
Can I load my own 3D LUTs onto the monitor?
Yes, the monitor supports 3D LUTs.cube format. Your own LUTs can be uploaded to the device and applied directly to the display for color preview.

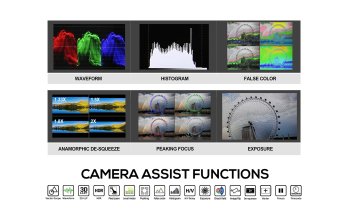

What focus and exposure aids does the monitor offer?
The HT5S offers peaking for sharpness control, histogram for the Exposure assessment, false color and zebra markings. In addition, a pixel-to-pixel zoom is available for precise focusing of 4K signals.

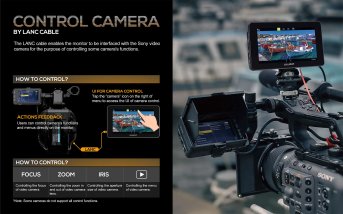

What is the LANC function and how is it operated?
The connected camera can be connected directly via the LANC interface Control the monitor off. Depending on the camera model, functions such as zoom, focus, aperture and recording start/stop can be operated via touchscreen.
Which touchscreen functions are available?
Brightness, volume, zoom and menu functions of the monitor can be controlled via the touchscreen. Camera control via LANC is also carried out directly via the touch surface.
For which camera types is the HT5S suitable?
The monitor is designed for use with DSLR, system, cinema and broadcast cameras and can be flexibly converted into different Integrate production environments.
How is the monitor attached to the camera?
[The light and stable housing allows it to be mounted on the camera's hot shoe or on a rig system. This means that the monitor is securely attached even during mobile recordings.
How is the monitor supplied with power?
The power supply is designed to be flexible. A suitable power supply is optionally available separately.
Which color space does the display cover?
The display covers 100 percent of the BT.709 color space, which is the common standard for HD video production and broadcast applications is.
What are the contrast ratio and viewing angle?
The contrast ratio is 1000:1. The viewing angle is 160 degrees both horizontally and vertically, so that the image can also be easily viewed from side positions.
