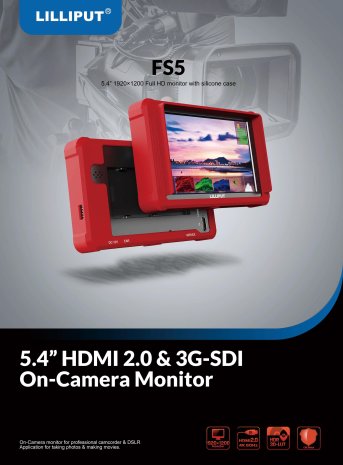

Lilliput FS5 On-Camera Monitor 5.4" HDMI 2.0 & SDI
Compact 4K monitor with HDR, 3D LUT and 1920×1200
article number: 12392 | manufacturer number: FS5 | EAN/UPC: 6950821602089
The Lilliput FS5 is a compact 5.4-inch on-camera Monitor for DSLR cameras, mirrorless cameras and professional camcorders. With HDMI 2.0, 3G-SDI, HDR support and 3D-LUT, the monitor is ideal for mobile film, video and Content productions.

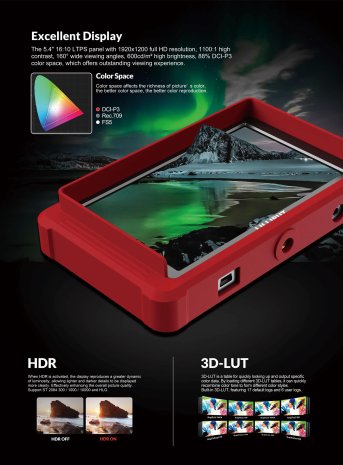

The LTPS panel offers a resolution of 1920 × 1200 pixels in 16:10 format. With 600 cd/m² brightness, a contrast ratio of 1100:1 and a viewing angle of 160° the FS5 enables reliable image control even in changing conditions Lighting conditions.
- 5.4"display with 1920 × 1200 resolution
- 600 cd/m² brightness
- 88% DCI-P3 color space coverage
- Suitable for camera monitoring on set
The FS5 supports HDR with ST 2084 and HLG as well as a integrated 3D-LUT function. This allows log profiles of various cameras to be assessed directly on the monitor and suitable looks to be checked during recording.
- HDR: ST 2084 300 / 1000 / 10000 and HLG
- 17 pre-installed LUTs
- 6 Storage spaces for user LUTs
- Support for S-Log, C-Log, V-Log, N-Log, ArriLog and J-Log

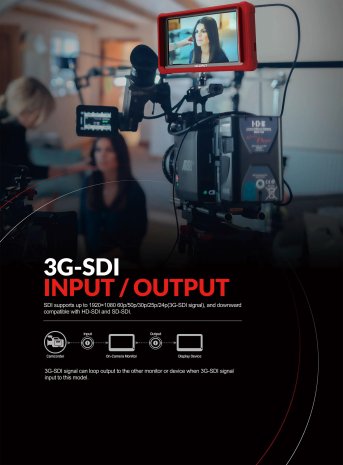

The monitor has HDMI 2.0 as well as 3G-SDI inputs and outputs. HDMI supports 4K signals up to 60p, while 3G-SDI covers professional HD-SDI workflows. The loop-through function allows the signal to be forwarded to other monitors or recording devices.

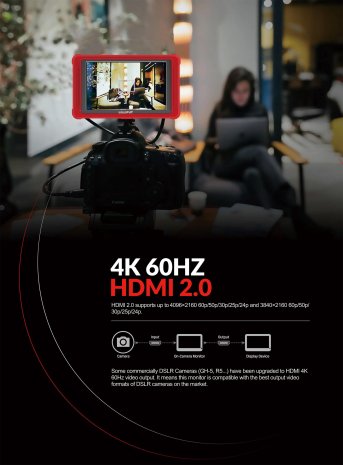

- HDMI 2.0 input and output up to 4K 60p
- 3G-SDI input and output up to 1080p60
- Backwards compatible with HD-SDI and SD-SDI
- Signal forwarding via loop-through

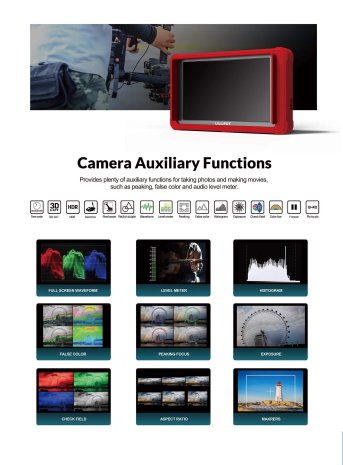

The Lilliput FS5 offers numerous help functions for precise work on the set to control sharpness, exposure, color and image detail.
- Peaking for sharpness control
- False color and exposure aids
- Waveform, histogram and audio level meter
- Check field, marker and Aspect Ratio Functions
Weighing only approx. At 295 g and dimensions of 154.5 × 90 × 20 mm the FS5 is particularly light and is ideal for use directly on the camera, on rigs or compact production systems.
- Lightweight housing for on-camera Operation
- Power supply via DC 7-24 V
- Maximum power consumption: approx. 9 W
- Includes silicone cover and Anti-glare protection
- USB adapter USB-A to Mini USB
- Mini HDMI to HDMI cable
- Battery plate for Canon LP-E6 batteries
- Battery plate for Sony NP-F Batteries
- Hot shoe joint mount
- Power supply 12 V / 2 A
- Anti-glare
- Silicone case
Real product can look different to picture
techn. Specs▲
| Panel | 5.4" LTPS |
|---|---|
| Physical Resolution | 1920x1200 |
| Aspect Ratio | 16:10 |
| Brightness | 600cd/m2 |
| Contrast | 1100:1 |
| Viewing Angle | 160°/ 160° (H/V) |
| HDR | ST 2084 300/1000/10000 / HLG |
| Supported Log Formats | Slog2 / Slog3, Arrilog, Clog, Jlog, Vlog, Nlog or User... |
| LUT Support | 3D-LUT (.cube format) |
| 3G-SDI | 1 |
|---|---|
| HDMI | 1 (HDMI 2.0, supports up to 4K 60Hz) |
| 3G-SDI | 1 |
|---|---|
| HDMI | 1 (HDMI 2.0, supports up to 4K 60Hz) |
| SDI | 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50... |
|---|---|
| HDMI | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50... |
| Speaker | 1 |
|---|---|
| Ear Phone Slot | 1 |
| Current | 0.75A (12V) |
|---|---|
| Input Voltage | DC 7-24V |
| Battery Plate | NP-F / LP-E6 |
| Power Consumption | ≤9W |
| Operating Temperature | -20°C to 50°C |
|---|---|
| Storage Temperature | -30°C to 70°C |
| Dimension(LWD) | 154.5x90x20mm |
|---|---|
| Weight | 295g |
Questions & Answers▲
What screen resolution does the Lilliput FS5 have?
The monitor has an LTPS panel with a resolution of 1920 × 1200 pixels in 16:10 format. This makes it suitable for precise image control in film and video productions.
What brightness does the monitor achieve?
The display achieves a brightness of 600 cd/m². In combination with the contrast ratio of 1100:1, the monitor is easy to read even in changing lighting conditions on set.
Which color space does the Lilliput FS5 cover?
The monitor covers 88 percent of the color space DCI-P3 color space. This enables reliable color representation for professional video and film productions.
Does the monitor support HDR playback?
Yes, the Lilliput FS5 supports HDR with the ST 2084 standards in levels 300, 1000 and 10000 as well as HLG. This allows HDR recordings to be assessed directly on the monitor.
How many LUTs can be loaded and which ones are pre-installed?
The monitor comes with 17 pre-installed LUTs and offers 6 storage spaces for your own user LUTs. This allows you to control individual looks and camera-specific log profiles directly during recording.
Which log profiles are supported for the 3D LUT function?
The Lilliput FS5 supports S-Log, C-Log, V-Log, N-Log, ArriLog and J-Log. This makes it compatible with a large number of common camera manufacturers and their log formats.
Which video signals are supported via HDMI?
4K signals up to 60p are supported via the HDMI 2.0 input and output. This makes the monitor suitable for modern 4K workflows with DSLR cameras, mirrorless cameras and camcorders.
What does the SDI port of the Lilliput FS5 do?
The monitor has a 3G-SDI Input and output that supports HD-SDI workflows up to 1080p60. In addition, it is backwards compatible with HD-SDI and SD-SDI signals.
What does the loop-through function enable?
Using the loop-through function, the incoming signal can be sent to other monitors via both HDMI and SDI or recording devices can be forwarded without interrupting the ongoing recording.
What monitoring auxiliary functions does the monitor offer?
The Lilliput FS5 offers peaking for sharpness control, false color and exposure aids as well as waveform and Histogram for analyzing exposure and color. These tools support precise work directly on the set.
For which types of cameras is the Lilliput FS5 suitable?
The monitor is designed for DSLR cameras, mirrorless cameras and professional camcorders. Thanks to support for HDMI 2.0 and 3G-SDI, it covers a wide range of camera models and production environments.
What is the viewing angle of the display?
The LTPS panel offers a viewing angle of 160 degree. This means that the image remains clearly visible even from side perspectives, which is an advantage when shooting situations change on the set.
