Kiloview E3 3G-SDi and HDMI Video Encoder
Dual-channel 4K HDMI and 3G-SDI HEVC video encoder
Artikelnummer: 12736 | Hersteller-Nummer: E3 | EAN: 6970631320317

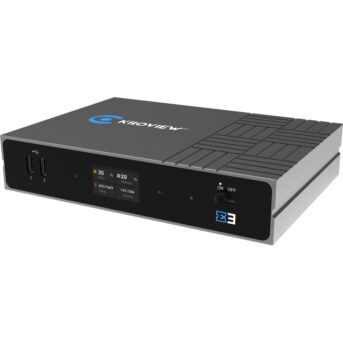

The Kiloview E3 is a professional video encoder of the latest generation that combines high performance and flexible application options in a compact device. It supports HDMI inputs up to 4Kp30, 3G-SDI inputs up to 1080p60 as well as USB video sources and encodes video signals in H.264 (AVC) and H.265 (HEVC) formats.
The E3 can encode HDMI or SDI video signals independently or combine both signals in picture-in-picture (PIP) or picture-by-picture (PBP). This makes the device ideal for live productions, streaming applications and professional broadcast workflows.
- HDMI input up to 4Kp30
- 3G-SDI input up to 1080p60
- USB video input
- Supports H.264 (AVC) and H.265 (HEVC) video encoding
- Independent encoding of HDMI or SDI signals
- Picture-in-Picture (PIP) and Picture-by-Picture (PBP) representation
- Supports up to 8 simultaneous streams

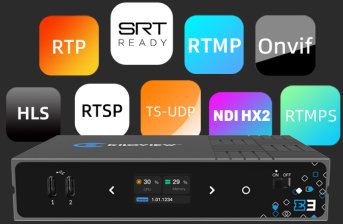

- Professional IP streaming protocols
- NDI HX3 / NDI HX2
- SRT
- RTMP / RTMPS
- RTSP
- HLS
- WHIP
- TS over UDP
- RTP
Real product can look different to picture
techn. Specs▲
The Kiloview E3 enables encoding of video signals via both the 3G-SDI and HDMI inputs. Both video sources can be encoded individually or output combined as PIP (Picture-in-Picture) or PBP (Picture-by-Picture). Alternatively, both inputs can be encoded simultaneously in up to 1080p60, enabling high-quality live streaming production with multiple sources.
For IP-based video transmission, the Kiloview E3 supports both the efficient HEVC codec (H.265) and H.264 (AVC). HEVC can save more than 50% bandwidth with the same image quality. The encoder supports a wide range of streaming protocols such as NDI HX3, NDI HX2, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, RTSP and ONVIF.
The HDMI input supports resolutions up to 4Kp30, while the 3G-SDI input processes signals up to 1080p60. Thanks to the powerful streaming engine, the E3 can stream on up to 16 platforms simultaneously. This is done via a mainstream with up to 8 channels in 1080p and a substream with up to 8 channels in 720p. The bit rate can be flexibly adjusted and can reach up to 100 Mbps.
In addition to pure video encoding, the E3 offers extensive video editing functions. This includes image rotation, cropping and the display of individual overlays such as graphics, text or OSD elements. These features enable flexible applications for webcasts, streaming productions and professional broadcast workflows.
Technical data
| Model | Name | E3 |
|---|---|---|
| Video resolution | HDMI Input & Loop Out | 3840 × 2160p @ 30 fps 1920 × 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps 1920 × 1080i @ 50 / 59.94 / 60 fps 1280 × 720p @ 29.97 / 30 / 50 / 59.94 / 60 fps 720 × 576i @ 50 fps (PAL SD) 720 × 480i @ 59.94 fps (NTSC SD) |
| Video resolution | SDI Input & Loop Out | 1920 × 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps 1920 × 1080i @ 50 / 59.94 / 60 fps 1280 × 720p @ 25 / 29.97 / 30 / 50 / 59.94 / 60 fps 720 × 576i @ 50 fps (PAL SD) 720 × 480i @ 59.94 fps (NTSC SD) |
| Video resolution | USB Input | 1920 × 1080p @ 24 / 25 / 30 / 50 / 60 fps 1280 × 720p @ 30 / 50 / 60 fps |
| Encoding | Video Encoding | H.264 (AVC): Baseline / Main / High Profile, Level 5.1 H.265 (HEVC): Main Profile, Level 5.0 MJPEG |
| Streaming | Streaming Protocols | NDI HX2 / NDI HX3 / SRT / RTMP / RTMPS / HLS / TS over UDP / RTSP |
| PTZ | PTZ Control | Supported (via USB-to-RS-232 / RS-485 / RS-422 adapters or IP-based camera control protocols) |

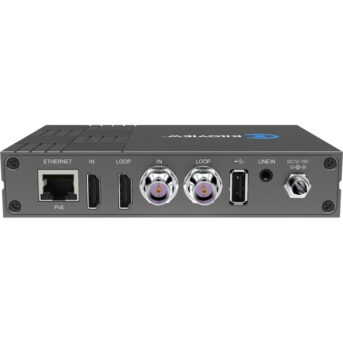

| Connections | Video Input | 1 × 3G-SDI (SMPTE 424M), backwards compatible with HD-SDI (SMPTE 292M) and SD-SDI (SMPTE 259M) 1 × HDMI 1.4b 1 × USB-C or 1 × USB-A |
| Connections | Video Output | Loop-through 1 × 3G-SDI, SMPTE 424M compatible, backwards compatible with HD-SDI SMPTE 292M and SD-SDI SMPTE 259M Loop through 1 × HDMI 1.4b |
| Audio | Audio Inputs | 4-Channel Embedded SDI Audio 4-Channel Embedded HDMI Audio 1 × 3.5 mm line in, 2-channel audio 2-channel embedded USB audio |

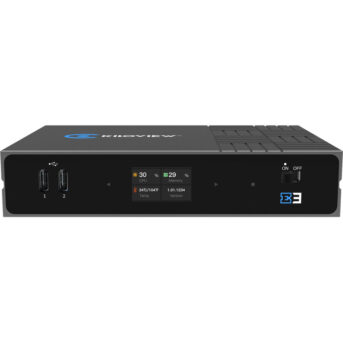

| Interfaces | USB Interfaces | 2 × USB 2.0 Type-C front panel 1 × USB 2.0 Type-A rear panel |
| Advertisement | Display and Indicators | 1.14" LCD color display with capacitive touch buttons |
| Network | Network Interface | 1 × 10 / 100 / 1000BASE-T Ethernet RJ45 with PoE IEEE 802.3af Class 3 |
| Network | DHCP | Supported |
| System | Management | Web-based management or central management via KiloLink Server Pro |
| Power supply | Power consumption | 6W |
| Power supply | Power Supply | DC 12V / 1A input |
| General | Dimensions | 140 × 100 × 28mm |
| General | Weight | 400 g net weight without accessories and packaging |
| Environment | Operating temperature | -20 °C to +45 °C |
| Environment | Storage temperature | -40 °C to +60 °C |
Questions & Answers▲
Which video inputs does the Kiloview E3 support?
The encoder has an HDMI input up to 4Kp30, a 3G-SDI input up to 1080p60 and a USB video input.
Which video codecs are supported?
The E3 supports both H.264 (AVC) and H.265 (HEVC) video encoding.
Can the E3 generate multiple video streams at the same time?
Yes, the device supports up to 8 simultaneous streams.
What streaming protocols are available?
The encoder supports NDI HX3, NDI HX2, SRT, RTMP, RTMPS, RTSP, HLS, WHIP, TS over UDP and RTP.
Can HDMI and SDI be processed at the same time?
Yes, both inputs can be encoded individually or combined as Picture-in-Picture (PIP) or Picture-by-Picture (PBP).
What advantages does H.265 offer over H.264?
HEVC (H.265) can save more than 50% bandwidth with the same image quality.
For which applications is the E3 suitable?
The device is ideal for live productions, streaming applications and professional broadcast workflows.
Can both inputs be encoded in Full HD at the same time?
Yes, both inputs can be encoded simultaneously in up to 1080p60.
