FineVideo LS-WM01 Wall and Ceiling Mount
16mm Spigot for Studio Lights – Steel, Powder-Coated
No returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 9622 | manufacturer number: LS-WM01

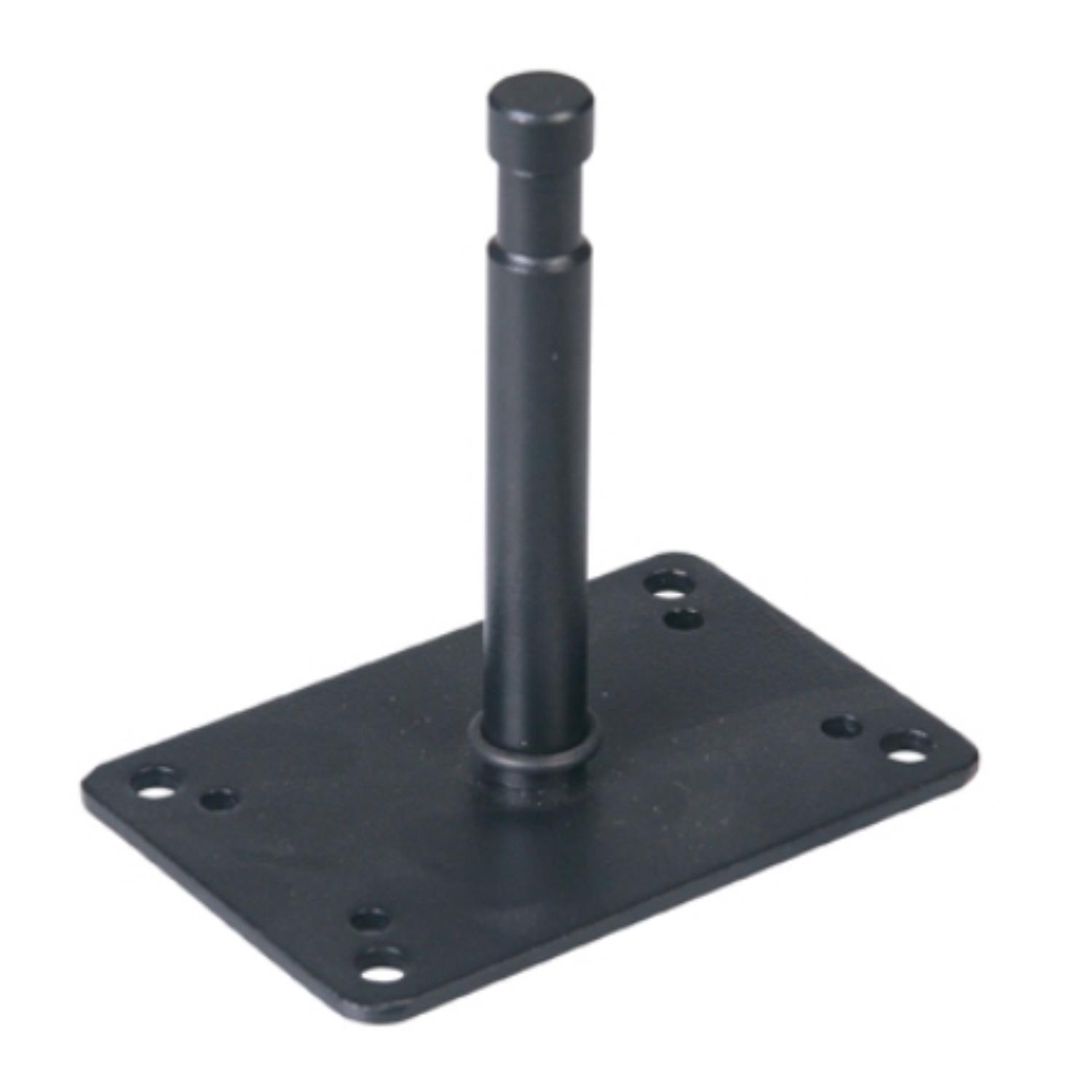

The wall and ceiling mount is suitable for studio lights and other accessories with a 16 mm light spigot receiver. It can be used for wall mounting, ceiling mounting, or floor mounting.

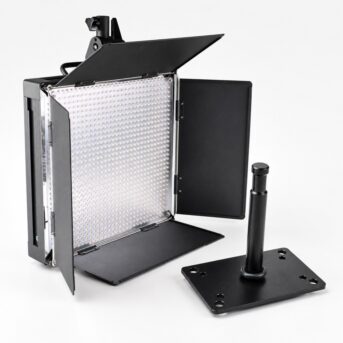

The mount is suitable for, among others, FineVideo LS and LH fluorescent lights as well as LED lights from the 500 and 1000 series. Other lights or accessories with a matching 16 mm spigot receiver can also be mounted using this bracket.
The base plate features 8 drill holes and can be attached to flat wall, ceiling, or floor surfaces. The milled groove on the spigot allows the locking screw to grip securely and reduces the risk of the mounted light slipping.
The 16 mm spigot is fully welded to the base plate. The steel construction with black powder coating provides a robust and durable mounting base for studio and installation environments.
Real product can look different to picture
techn. Specs▲
| Product Type | Wall mount / Ceiling mount / Floor mount for 16 mm spigot |
|---|---|
| Application | Mounting of studio lights and accessories with 16 mm spigot receptacle |
| Mounting Types | Wall mounting, ceiling mounting or floor mounting |
| Base Plate | 120 x 80 mm |
| Material Thickness | 3 mm |
| Spigot Diameter | 16 mm |
| Spigot Length | 120 mm |
| Fixing | Base plate with 8 drill holes |
| Locking | Milled groove on spigot for locking screw |
| Material | Steel |
| Surface | Black powder-coated |
Questions & Answers▲
What mounting positions are supported by the FineVideo LS-WM01?
The mount can be used for wall mounting, ceiling mounting, and floor mounting, making it flexible for various studio and installation setups.
What spigot diameter does this mount use?
The spigot has a diameter of 16 mm, which is the standard size used by a wide range of studio lights and accessories.
How long is the spigot on the LS-WM01?
The spigot has a length of 120 mm, providing sufficient reach for securely attaching studio lights and compatible accessories.
How is the spigot attached to the base plate?
The 16 mm spigot is fully welded to the base plate, ensuring a solid and permanent connection that can withstand the demands of studio use.
What are the dimensions of the base plate?
The base plate measures 120 x 80 mm and has a material thickness of 3 mm, providing a stable foundation for wall, ceiling, or floor attachment.
How many fixing holes does the base plate have?
The base plate features 8 drill holes, allowing for secure attachment to flat surfaces regardless of the mounting orientation.
What prevents the mounted light from slipping on the spigot?
The spigot features a milled safety groove that allows the locking screw of the attached light or accessory to grip securely, significantly reducing the risk of slipping.
What material and surface finish does the LS-WM01 have?
The mount is made from steel and finished with a black powder coating, which provides durability and resistance to wear in studio and installation environments.
Which FineVideo lights are compatible with this mount?
The mount is compatible with FineVideo LS and LH fluorescent lights as well as LED lights from the 500 and 1000 series. Any other light or accessory with a 16 mm spigot receiver can also be used.
Can lights from other manufacturers be used with this mount?
Yes, any studio light or accessory equipped with a standard 16 mm spigot receiver can be mounted, regardless of the manufacturer.
Is this mount suitable for permanent installation in a studio?
Yes, the steel construction, powder-coated finish, and fully welded spigot make this mount well suited for permanent studio and installation use.
Does the mount come with fixing screws for wall or ceiling attachment?
The product description does not specify that fixing screws are included. Suitable screws or anchors appropriate for the surface material should be sourced separately.
