EZFX HHR High Hat Riser with 100mm Bowl Mount
Aluminium mounting platform for pan/tilt and remote heads
No returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 5748 | manufacturer number: EZFX-HHR

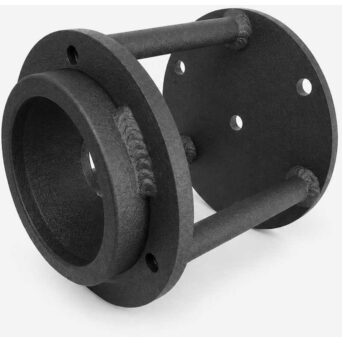

The EZFX HHR High Hat Riser is a universal mounting platform for pan/tilt heads and remote heads with 100mm half bowl mount.
Via four 10mm holes in the base area, the riser can be securely attached to vehicles, shelves, walls, ceilings, or other suitable surfaces. This makes it a compact alternative to a traditional tripod when space is limited or a fixed installation is required.
For use with other bowl sizes, adapters to 75mm and 150mm are available.
The construction is carefully welded and manufactured in the USA.
Real product can look different to picture
techn. Specs▲
| Total Height | 153 mm |
|---|---|
| Inner Diameter of the Half Shell | 90 mm |
| Outer Diameter of the Half Shell | 114 mm |
| Total Diameter | 152 mm |
| Diameter of the Support Tubes | 16 mm |
| Diameter of the Mounting Holes | 10 mm |
| Material | Aluminum |
| Surface | Black powder-coated |
| Weight | 1.100 g |
Questions & Answers▲
What is the EZFX HHR High Hat Riser used for?
It is a universal mounting platform designed for pan/tilt heads and remote heads that use a 100mm half-ball bowl mount. It serves as a compact alternative to a traditional tripod in situations where space is limited or a permanent installation is needed.
What bowl size does the HHR High Hat Riser natively support?
The riser is built for 100mm half-ball bowl mounts. The inner diameter of the half shell measures 90mm and the outer diameter is 114mm.
Can it be used with 75mm or 150mm bowl heads?
Yes. Adapters for both 75mm and 150mm bowl sizes are available separately, allowing the riser to be used with a wider range of pan/tilt and remote heads.
How is the riser mounted to a surface?
The base features four 10mm bolt holes that allow the riser to be securely fastened to walls, ceilings, vehicles, shelves, or other suitable surfaces using standard 10mm bolts.
What are the overall dimensions of the riser?
The total height is 153mm and the total diameter is 152mm. The support tubes have a diameter of 16mm.
What material is the riser made from?
It is constructed from aluminum and features a black powder-coated surface finish for durability and corrosion resistance.
How much does the riser weigh?
The riser weighs 1,100 grams, making it a solid yet manageable unit for both permanent installations and mobile vehicle setups.
Is the riser suitable for vehicle mounting?
Yes. The four 10mm mounting holes in the base are well suited for attaching the riser to vehicle frames or custom mounting rigs, making it a practical choice for mobile film and broadcast applications.
Where is the riser manufactured?
The riser is manufactured in the USA. The construction is carefully welded to ensure a robust and reliable build.
Can the riser replace a tripod in tight spaces?
Yes. Because it can be bolted directly to fixed surfaces such as walls or ceilings, it offers a low-profile alternative to a tripod when floor space is unavailable or a fixed camera position is required.
