DVTEC 100 mm Rod Extension for 15mm Rig Systems
Anodized aluminum, M10x1.5 thread
No returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 9183 | manufacturer number: 6026

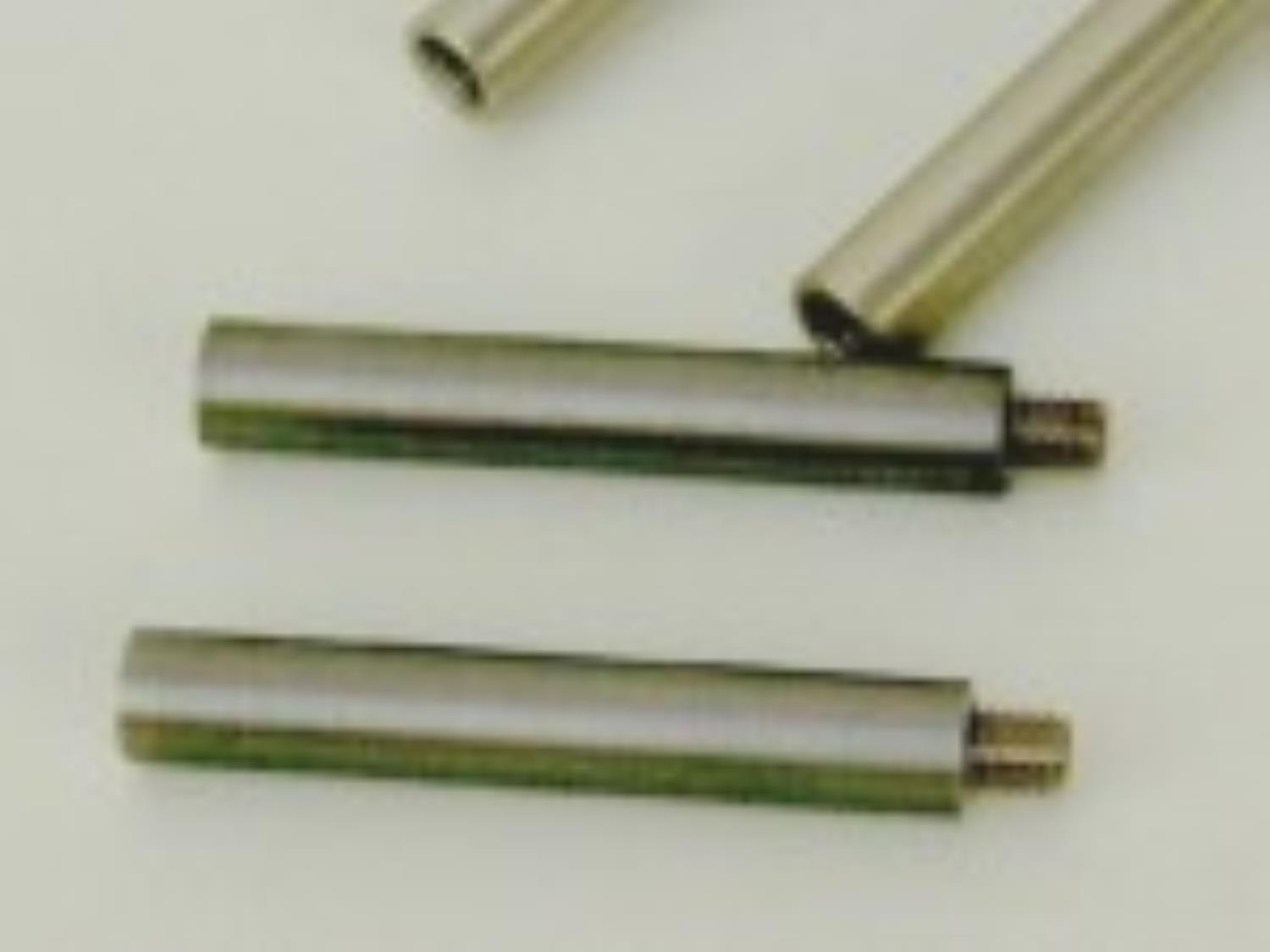

The DVTEC 100 mm Rod Extension 15/60 is used to extend rods on camera rigs, shoulder supports, and other 15 mm rod systems. It is particularly suitable for larger or individually configured rig setups where additional length is required for accessories, camera builds, or mounting hardware.
The extension is made from anodized aluminum and features an M10 x 1.5 mm thread. A steel thread with brass insert is used to ensure a secure and stable connection.
Real product can look different to picture
techn. Specs▲
| Product Type | Rod Extension |
|---|---|
| Compatibility | 15mm Rod Systems / DVTEC 15/60 Rig Systems |
| Nominal Length | 100 mm |
| Actual Length | 99 mm |
| Outer Diameter | 14.7 mm |
| Inner Diameter | 10.7 mm |
| Wall Thickness | 2.0 mm |
| Thread | M10 x 1.5 mm |
| Material | Aluminium, anodised |
| Fastening | Steel thread with brass insert |
Questions & Answers▲
What is the nominal length of this rod extension?
The nominal length is 100 mm. The actual measured length is 99 mm.
Which rod systems is this extension compatible with?
It is compatible with standard 15mm rod systems and specifically with DVTEC 15/60 rig systems.
What thread size does this rod extension use?
It uses an M10 x 1.5 mm thread for connecting to other rods or accessories.
What material is the rod extension made from?
The body is made from anodised aluminium, which provides durability while keeping the weight low.
Why does the fastening use a brass insert instead of a pure steel thread?
The steel thread combined with a brass insert provides a secure and stable connection while reducing the risk of thread damage and galling during repeated assembly and disassembly.
What is the outer diameter of the rod extension?
The outer diameter is 14.7 mm, which fits standard 15mm rod clamps and support systems.
What is the inner diameter and wall thickness?
The inner diameter is 10.7 mm and the wall thickness is 2.0 mm.
What is this rod extension typically used for?
It is used to extend rods on camera rigs, shoulder supports, and similar 15mm rod systems, particularly when additional length is needed for accessories or custom rig configurations.
Can this extension be used with non-DVTEC 15mm rod systems?
Yes, it is compatible with any standard 15mm rod system as long as the M10 x 1.5 mm thread specification is supported by the connecting components.
Is the anodising purely decorative or does it serve a functional purpose?
The anodised finish is functional. It increases the surface hardness of the aluminium, improves corrosion resistance, and helps protect the rod during regular use on set.
