DVTEC EngRig Center Pin with Collar Nut
Brass replacement part for the EngRig articulation system
article number: 12642 | manufacturer number: DVTECENGLockpin

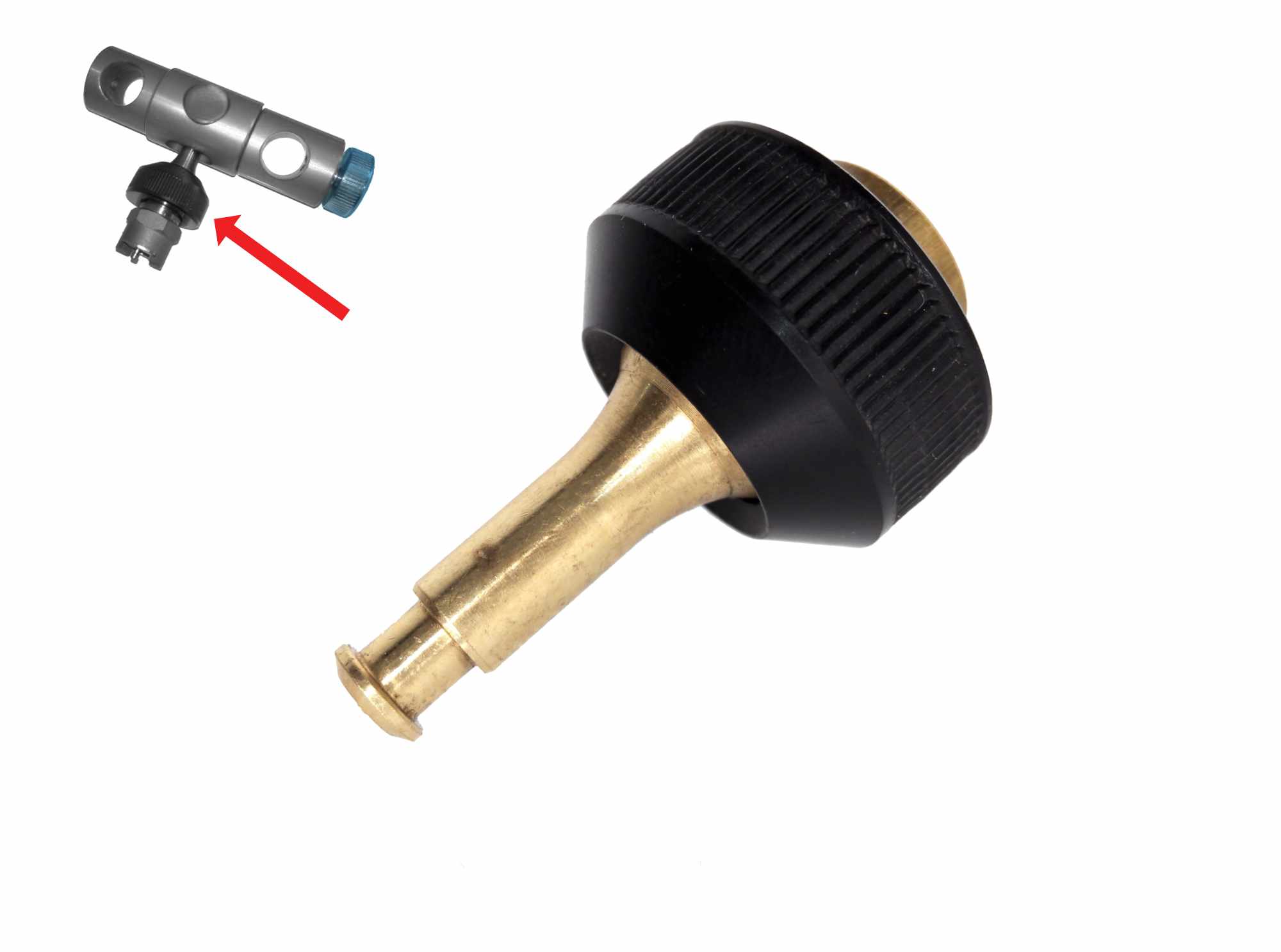

Original DVTEC ENGRIG spare part consisting of a center pin made of brass including plastic union nut.
Compatible with the DVTEC ENGRIG articulation system for secure connection and fixation of the movable components.
Real product can look different to picture
techn. Specs▲
| Nut Material | ABS Plastic |
|---|---|
| Center Pin Material | Brass |
| Pin Length | approx. 42 mm |
| Pin Diameter | approx. 14 / 7 mm |
| Nut Dimensions | approx. 26 × 13.5 mm |
Questions & Answers▲
What is the DVTEC EngRig Center Pin with Collar Nut used for?
It is a spare part designed for the DVTEC EngRig articulation system. The center pin connects and secures the movable components of the system, allowing for stable and reliable articulation during use.
What material is the center pin made of?
The center pin is made of brass, which provides durability and reliable mechanical stability for repeated use within the articulation system.
What material is the collar nut made of?
The collar nut is made of ABS plastic. This lightweight material is commonly used in precision mechanical accessories and is suitable for securing the center pin in place.
What are the dimensions of the center pin?
The center pin has a length of approximately 42 mm. The pin diameter is approximately 14 mm at the wider section and approximately 7 mm at the narrower section.
What are the dimensions of the collar nut?
The ABS plastic collar nut measures approximately 26 mm in length and approximately 13.5 mm in diameter, making it compact and easy to handle during installation or replacement.
Is this an original DVTEC spare part?
Yes, this is an original DVTEC spare part manufactured to fit the EngRig articulation system precisely. Using original components ensures proper fit and maintains the integrity of the overall system.
Which DVTEC products is this part compatible with?
This center pin with collar nut is compatible with the DVTEC EngRig articulation system. It is specifically designed for this system and may not be suitable for other articulation rigs or third-party products.
Does the package include both the center pin and the collar nut?
Yes, the package includes one brass center pin and one ABS plastic collar nut as a complete unit, ready for installation as a replacement in the EngRig articulation system.
When should this part be replaced?
Replacement is recommended when the original center pin shows signs of wear, mechanical play has increased noticeably, or the collar nut no longer provides a secure and stable connection within the articulation system.
Is any special tool required to install this part?
No specific information about required tools is provided by the manufacturer. In general, replacing center pins in articulation systems requires basic mechanical care. Consulting the EngRig system documentation is recommended for proper installation guidance.
