AVMATRIXUC1218-4KS/PRO
HDMI2.0 TO USB 4K Capture Box Series
Artikelnummer: 12735 | Hersteller-Nummer: UC1218-4KS/PRO | EAN: 6971118002122
The AVMatrix UC1218-4K is an HDMI to USB capture card for video transmission from HDMI signals to a computer. The device supports resolutions up to 4K at 60 Hz and transmits the video signal to a PC or Mac via USB 3.1 Gen1 (USB 3.0). Thanks to the plug-and-play function, the capture card works without driver installation and without an external power supply.
The UC1218-4K complies with UVC and UAC standards and is compatible with Windows, Linux and macOS. This means the capture card can be easily integrated into streaming or video conferencing software such as OBS, Zoom, YouTube or Microsoft Teams.
- Plug-and-play operation without driver installation and without external power supply
- Inputs: 1 × HDMI (4K), 1 × Mic / Line Audio
- Outputs: 1 × HDMI Loop Out (4K), 1 × HDMI Out, 1 × USB 3.1 Gen1 (USB 3.0), 1 × Audio Out
- Automatic input signal detection
- Supports video resolutions up to 4K / 60 Hz
- Uncompressed data transfer up to 200 MB/s via USB 3.1 Gen1
- UVC-compliant video capture with YUY2 color model
- UAC compliant audio output
- Supports HDMI embedded audio and line-in audio
- Compatible with Windows, Linux and macOS
- Supports streaming and conferencing software such as OBS, Zoom, YouTube, Microsoft Teams and Twitch
- Dimensions: 92 × 58 × 19 mm
- Weight: 205 g

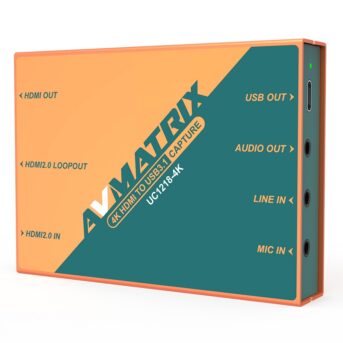

Real product can look different to picture
techn. Specs▲
Technical data
| Connections | Video Interface | UC1218-4K PRO:1 × HDMI 2.0 In, 1 × HDMI 2.0 Loop-Out, 1 × USB Type-C (USB 3.1 Gen2, 10 Gbps) |
|---|---|---|
| Connections | Video Interface | UC1218-4KS:1 × HDMI 2.0 In, 1 × HDMI 2.0 Loop-Out, 1 × USB Type-C (USB 3.0, 5 Gbps) |
| Connections | Audio Interface | 1 × 3.5 mm stereo line-in, 1 × 3.5 mm stereo mic-in, 1 × 3.5 mm stereo audio out |
| Video formats | HDMI 2.0 input / loop out | up to 4K60Hz, 2K144Hz, 1080p240Hz |
| Video & Audio | Capture Standard | UVC (USB Video Class) and UAC (USB Audio Class) |
| Video & Audio | Audio Codec | 2-channel PCM, 16 bit, 44.1 kHz, 1411 kbps |
| Video & Audio | Video formats | UC1218-4K PRO: RGB24: up to 2560×1440 p60 P010: up to 3840×2160 p60 YUY2: up to 3840×2160 p50 NV12: up to 3840×2160 p60 I420: up to 3840×2160 p60 MJPG: up to 3840×2160 p60 |
| Video & Audio | Video formats | UC1218-4KS: RGB24: up to 2560×1440 p30 P010: up to 3840×2160 p60 YUY2: up to 2560×1440 p60 NV12: up to 3840×2160 p30 I420: up to 3840×2160 p30 MJPG: up to 3840×2160 p60 |
| System | Operating systems | Windows 7 / 8 / 10 / 11, Linux (Kernel 2.6.38 or higher), macOS (from 10.8) |
| System | Software Compatibility | OBS Studio, Skype, Zoom, Microsoft Teams, Google Meet, YouTube Live, QuickTime Player, FaceTime and others |
| System | SDK support | DirectShow (Windows), DirectSound (Windows) |
| General | Dimensions | 104 × 75.5 × 19mm |
| General | Weight | 274 g (net), 403 g (gross) |
| General | Power consumption | 4.5W ±10% |
| Environment | Operating temperature | -20 °C to +60 °C |
| Environment | Storage temperature | -30 °C to +70 °C |
| Environment | Humidity | 20–90% RH (non-condensing) |
| Guarantee | Manufacturer's warranty | 3 years |
| Scope of delivery | Accessories | USB 3.0 A-to-C cable, HDMI cable (optional) |
