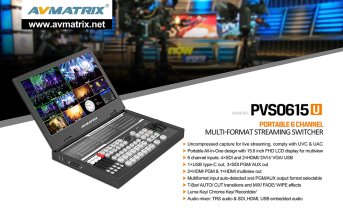

AVMatrix PVS0615U – Portable 6-Channel Video Switcher
SDI, HDMI, USB Streaming & 15.6-inch Multiview Display
article number: 12421 | manufacturer number: PVS0615U | EAN/UPC: 6971118000395
The AVMatrix PVS0615U is a portable 6-channel video switcher for live production, streaming, event technology, training, conferencing and mobile production setups. The all-in-one system combines video mixer, audio mixer, multiview monitor, USB live streaming and SD card recording in a compact device.
The integrated 15.6-inch Full-HD display serves as a multiview monitor and shows program, preview, input signals, audio meters, status information and menu overlays directly on the device. This allows the PVS0615U to be used comfortably without a separate control monitor.
The AVMatrix PVS0615U processes up to six video sources. Four inputs are configured as 3G/HD/SD-SDI. Channels 5 and 6 can be used flexibly via HDMI, DVI-I, VGA or USB.
This allows cameras, computers, presentation sources, media players and USB media to be combined in a compact production system. Input signals are automatically detected, and the PGM/AUX output format is selectable.
The 15.6-inch display with 1920 x 1080 pixels shows a clear multiview interface with program, preview and the six input channels. The sources for channel 5 and channel 6 can be switched between HDMI, DVI, VGA and USB.
Additionally, menu and status information, audio levels and the time are displayed in the multiview. The SDI and HDMI program outputs remain free of menu overlays.
For signal output, 3x SDI Program/AUX, 2x HDMI Program and 1x HDMI Multiview are available. The third SDI output can be used as an AUX output and can be switched between program and preview depending on the application.
The program and AUX outputs support 1080p at 50, 60, 30, 25 and 24 Hz as well as 1080i at 50 and 60 Hz. The HDMI multiview output operates fixed at 1080p60.

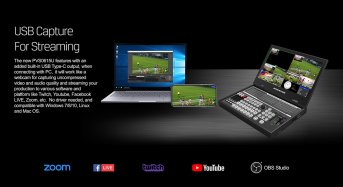

The PVS0615U outputs the program signal via USB3.0 as an uncompressed video and audio signal. The streaming output operates according to the UVC/UAC standard and is recognised by compatible operating systems as a capture device without additional drivers.
This makes the switcher suitable for streaming and conferencing software such as OBS Studio, Zoom, Skype, Teams, Google Meet, YouTube Live, Twitch, Wirecast and other applications. Windows, macOS and Linux are supported.

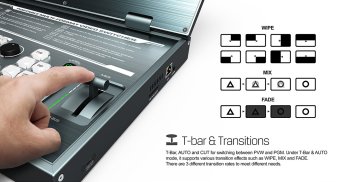

For live operation, the AVMatrix PVS0615U offers classic production functions such as T-Bar, AUTO and CUT. Sources can be switched directly between preview and program.
For smoother transitions, Mix, Fade and Wipe are available. Transition speed can be selected in multiple steps. A fade-to-black function is also included, which is particularly useful during breaks, scene changes or emergencies.
The PVS0615U supports picture-in-picture functions such as PIP and POP. Size, position, border and appearance can be adjusted via the menu.

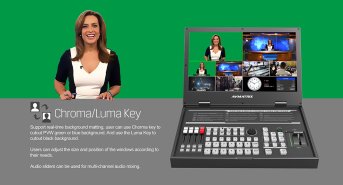

For graphic overlays, virtual studio applications or green screen productions, Luma Key and Chroma Key are available. Chroma Key can be used with green or blue backgrounds.

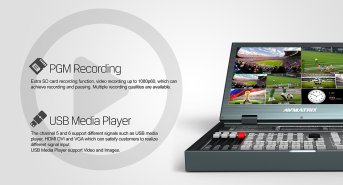

Via the USB media player function, video and image files can be used directly as a source for channel 5 or channel 6. Control is performed via dedicated buttons for play, pause, fast forward, rewind, next and back.
Supported video formats include MP4, AVI, MKV, FLV, MPG and MOV with codecs such as H.264, H.265, MPEG4 and MPEG2. For image files, BMP, JPEG and PNG are supported.
The AVMatrix PVS0615U can record the program signal directly to an SD card. Recording is performed in H.264 MP4 format. SD cards up to 512 GB formatted with exFAT or FAT32 are supported.
Recording supports 1080p at 60, 50, 30, 25 and 24 Hz as well as 1080i at 60 and 50 Hz. The recording resolution corresponds to the configured SDI program output.
The integrated audio mixer processes analogue TRS audio signals as well as embedded audio from SDI, HDMI and USB sources. A total of three audio channels can be selected for mixing and controlled via faders.
Audio can be mixed manually in mixing mode or follow the program signal automatically in following mode. A headphone output is also available for audio monitoring.
For multi-camera productions, the PVS0615U is equipped with a 25-pin GPIO tally connector. This allows camera status signals for preview and program to be passed on to compatible tally systems.
Via RJ45 network connectors, system time and firmware functions can be accessed, among other things. The menu also provides settings for language, clock display, audio delay, network parameters and freely assignable function buttons.
- Live streaming and webcast production
- Mobile production for events, stage and sports
- Multi-camera productions with SDI and HDMI sources
- Conferences, training sessions and hybrid events
- Houses of worship, clubs, schools and corporate communications
- Recording program signals to SD card
- Presentations with camera, computer and media sources
- Portable 6-channel multi-format streaming video switcher
- Integrated 15.6-inch Full-HD multiview display
- 4x 3G/HD/SD-SDI input
- 2 flexible inputs via HDMI, DVI-I, VGA or USB
- 3x SDI Program/AUX output
- 2x HDMI Program output
- 1x HDMI Multiview output at 1080p60
- USB3.0 Type-C streaming output via UVC/UAC standard
- Driverless operation with compatible operating systems
- T-Bar, Auto and Cut for live switching
- Mix, Fade and Wipe transition effects
- Fade-to-black function
- PIP and POP with adjustable position and size
- Luma Key and Chroma Key for graphics and virtual studios
- USB media player for video and image files
- H.264 MP4 recording to SD card up to 512 GB
- Integrated audio mixer for TRS and embedded audio
- Headphone output for audio monitoring
- 25-pin GPIO tally connector
Real product can look different to picture
techn. Specs▲
| Functions | Transitions & Effects | Manual T-bar/ AUTO/ CUT/ Wipe/ Mix/ Fade/ FTB / Color Bar |
|---|---|---|
| Streaming | USB type-C uncompressed recording, compatible with UVC & UAC | |
| Keys & Layouts | Luma Key/ Chroma Key/ PiP/ PoP/ Multiview | |
| Audio Mixer | Following/Mixing | |
| LCD Display | 15,6 inch, 1920 × 1080 resolution | |
| Record | SD card, H.264, recording for PGM up to 1080p60 | |
| Inputs | Video Inputs | SD/HD/3G-SDI(75Ω) × 4, HDMI2.0 type-A(1000Ω) × 2, DVI-I(VGA-compatible) × 2 |
| USB Media Player | USB type-A × 2 | |
| Analog Audio Inputs | TRS(L/R) × 1 | |
| Outputs | PGM Streaming Output | USB type-C × 1 |
| PGM Outputs | HD/3G-SDI(75Ω) × 2, HDMI type-A(100Ω) × 2 | |
| AUX Output (PGM/PVW) | HD/3G-SDI(75Ω) × 1 | |
| Multiview Output | HDMI type-A × 1 | |
| Analog Audio Output | TRS(L/R) × 1 | |
| Data Interfaces | LAN | Synchronize local time |
| Tally | GPIO | |
| Standards | SDI Input Format Support | 1080p 60/59,94/50/30/29,97/25/24/23,98 1080psF 30/29,97/25/24/23,98 1080i 60/59,94/50 720p 60/59,94/50/30/29,97/25/24/23,98 625i 50 PAL, 525i 59,94 NTSC |
| HDMI Input Format Support | 4K 60/50/30, 2K 60/50/30 1080p 60/59,94/50/30/29,97/25/24/23,98/23,976 1080i 50/59,94/60 720p 60/59,94/50/30/29,97/25/24/23,98 576i 50, 576p 50 | |
| Standards | SDI & HDMI Scaling Output | 1080p 60/50/30/25/24, 1080i 60/50 |
| Multiview HDMI Output | 1080p 60 | |
| SDI Compliance | SMPTE 292M / SMPTE 259M / SMPTE 424M | |
| USB Capture | Compatible with USB3.0 and USB 2.0, up to 1080p60hz | |
| Dimensions | Dimension(LWD) | 375 × 271,5 × 43,7 mm |
| Weight | 4,0 kg | |
| Power Supply | Power Supply | DC 12 V 2,8 A, 33 W |
Questions & Answers▲
How many video inputs does the AVMatrix PVS0615U support, and what signal types are accepted?
The switcher supports six video inputs. Channels 1 through 4 are dedicated 3G/HD/SD-SDI inputs. Channels 5 and 6 are flexible and accept HDMI, DVI-I, VGA, or USB signals, making it possible to connect cameras, computers, media players, and USB media sources simultaneously.
Does the device have a built-in monitor, or is a separate display required?
A separate display is not required. The PVS0615U includes an integrated 15.6-inch Full-HD display with a resolution of 1920 x 1080 pixels. It shows a multiview layout with the program output, preview, all six input channels, audio meters, status information, and menu overlays directly on the device.
What video outputs are available on the switcher?
The device provides three SDI outputs for program and AUX, two HDMI program outputs, and one HDMI multiview output. The third SDI output can be configured as an AUX output and switched between program and preview depending on the production requirement.
Does the multiview overlay appear on the SDI and HDMI program outputs?
No. The SDI and HDMI program outputs remain completely free of menu overlays and multiview graphics. Menu information and status displays are only shown on the integrated 15.6-inch display and the dedicated HDMI multiview output.
Which output resolutions and frame rates are supported for the program output?
The program and AUX outputs support 1080p at 24, 25, 30, 50, and 60 Hz as well as 1080i formats. The output format is selectable to match the requirements of the connected display, recorder, or broadcast chain.
Is live streaming directly from the device possible without a dedicated streaming PC?
Yes. The PVS0615U features a USB 3.0 streaming output. When connected to a computer, it functions as a USB capture device and can feed the program signal directly into streaming software. This removes the need for a separate video capture card in many workflows.
Can recordings be made directly on the device?
Yes. The device supports SD card recording, allowing the program output to be recorded locally without an external recorder. This makes the PVS0615U suitable for workflows where a simultaneous local backup of the live production is needed.
Does the switcher include audio mixing capabilities?
Yes. An integrated audio mixer is part of the all-in-one system. Audio levels are displayed directly in the multiview on the built-in screen, allowing the operator to monitor audio alongside video without additional equipment.
Are input signals detected automatically, or does each source need to be configured manually?
Input signals are detected automatically. The switcher recognizes the incoming format on each channel without requiring manual format configuration, which simplifies setup during fast-paced or mobile production environments.
Can channels 5 and 6 be switched between different input types during operation?
Yes. The input source for channels 5 and 6 can be switched between HDMI, DVI-I, VGA, and USB. This flexibility allows different types of sources to be assigned to these channels depending on the specific production setup.
What types of production environments is this switcher designed for?
The PVS0615U is designed for live production, live streaming, event technology, corporate training, conferencing, and mobile production. Its compact all-in-one design makes it particularly suitable for situations where transport and fast setup are priorities.
Is the device portable enough for use outside a fixed studio environment?
Yes. The device is described as a portable system. By integrating the video mixer, audio mixer, multiview monitor, streaming output, and recording into a single unit, it reduces the amount of equipment needed for remote or mobile productions.
