LINSN Sending Card TS801 for led screen

sending card for LINSN led screen

Nachfolgeprodukt TS802

description:

Artikelnummer: 10149 Hersteller-Nummer: TS801D

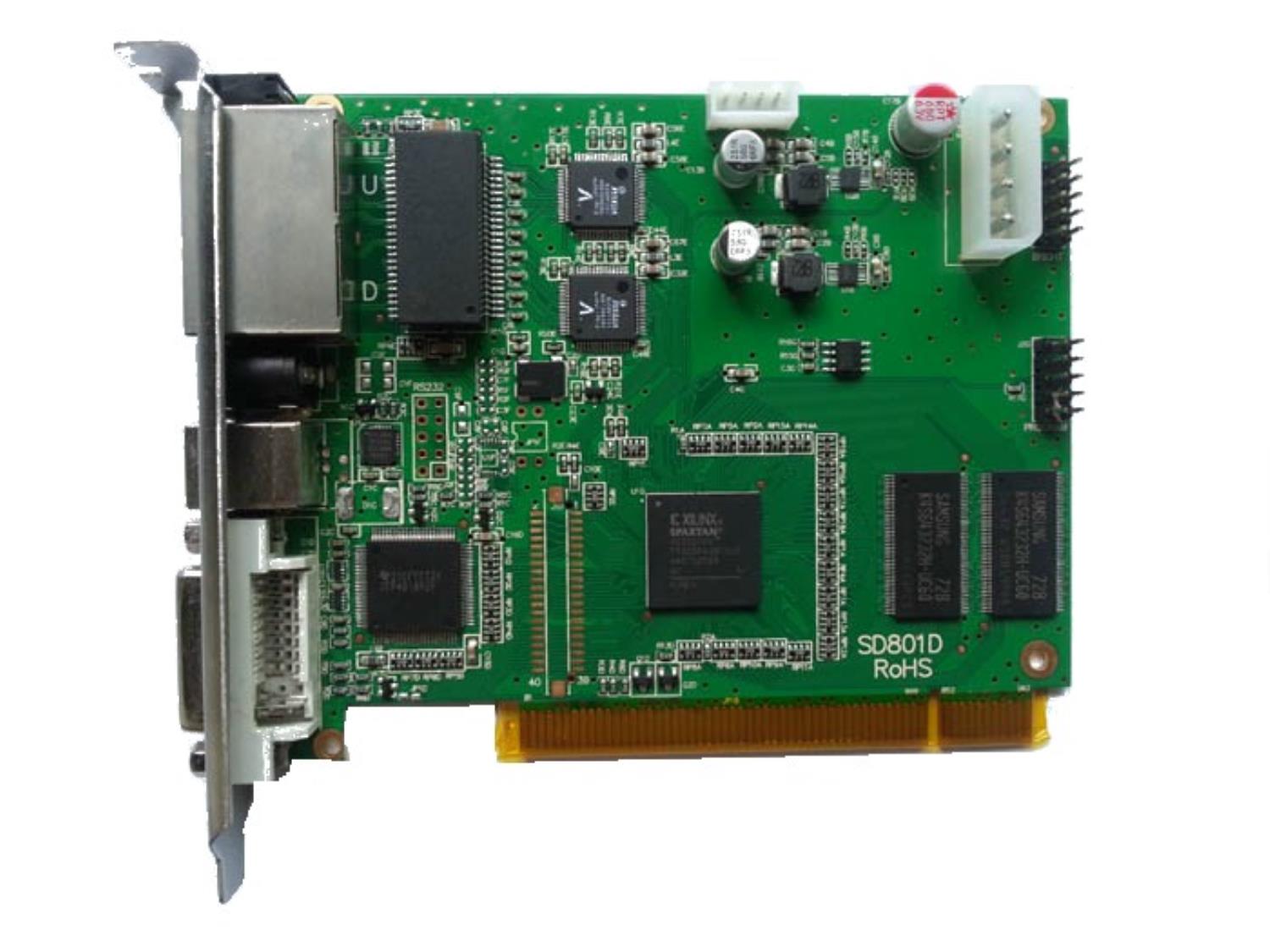

LINSN TS801 Sending Card for PCI Slot

801 sending card including full-color sending card TS801 and dual-color sending card DS801.
Full-color sending card supports full-color, dual-color and single color LED display.
Dual-color sending card supports dual-color and single color LED display.
801 sending card max supports 1280*1024.
Supporting display mode: 640*480, 800*600, 1024*768, 1280*768, 1280*800, 1280*1024.
Sending card U/D port flexibility for carrying half width or half height.
For example, TS801 can max support 1280*1024 with two ports.
Single network output port supports 1280*512 or 640*1024.
Sending card rotation function 0, 90, 180, 270 degree.
Sending card zoom in/out function.
In Sender setting, the ratio of width and height can be set to realize zoom in or zoom out.
Supporting 10-bit colors.
Seventh series receiving supports 8-bit colors: 256*256*256=16777216 kinds of colors.
Eighth series receiving supports 10-bit colors: 1024*1024*1024=1073741824 kinds of colors.
It needs to work with our video processors using the 30 bits TTL.
Multi-display synchronous and combination functions.
One sending card can control multi-displays, realizing displays combination, synchronous display, and independent play.
