VariZoom VZ-M5 Kit – 5 inch HDMI monitor for DSLR
800×480 pixels, peaking & zoom remote control in a set
Special price: € 289.00
incl. VAT
( instead of 498.55 )
242.86 € w/o vat
in stock
Shipping costarticle number: 10454 | manufacturer number: VZM5K | EAN/UPC: 877038005303
The VariZoom VZ-M5 Monitor Kit is a compact and practical monitoring solution for DSLR, mirrorless, and video cameras. It helps camera operators ensure precise focus and correct exposure at all times, even on small displays.
Thanks to features such as 1:1 Pixel Zoom and Focus Peaking, focus can be reliably assessed – even in demanding shooting situations. The native resolution of 800×480 pixels provides a clear and highly usable image for use on the go.
With the zoom remote control included in the kit, you can conveniently zoom in and out of the image from the tripod handle or rig. This significantly simplifies focus control – especially during static shots or when the camera is in a hard-to-reach position.
- 1:1 Pixel Zoom for precise detail control
- Focus Peaking for quick focus detection
- Zoom control directly via remote
- Ideal for tripod and rig applications
The integrated DSLR scaling function ensures that camera signals – for example from Canon DSLR models – are correctly displayed as a full image. This keeps monitoring reliable and usable across different camera formats.
The lightweight monitor with LED backlight and high-quality LCD panel is designed for mobile use and is ideally suited for film, video, events, and content creation. The comprehensive set of accessories means the system is ready to use immediately.
- Compact 5-inch HDMI monitor
- LED backlight for uniform illumination
- Lightweight and mobile setup
- Quickly ready for use on set

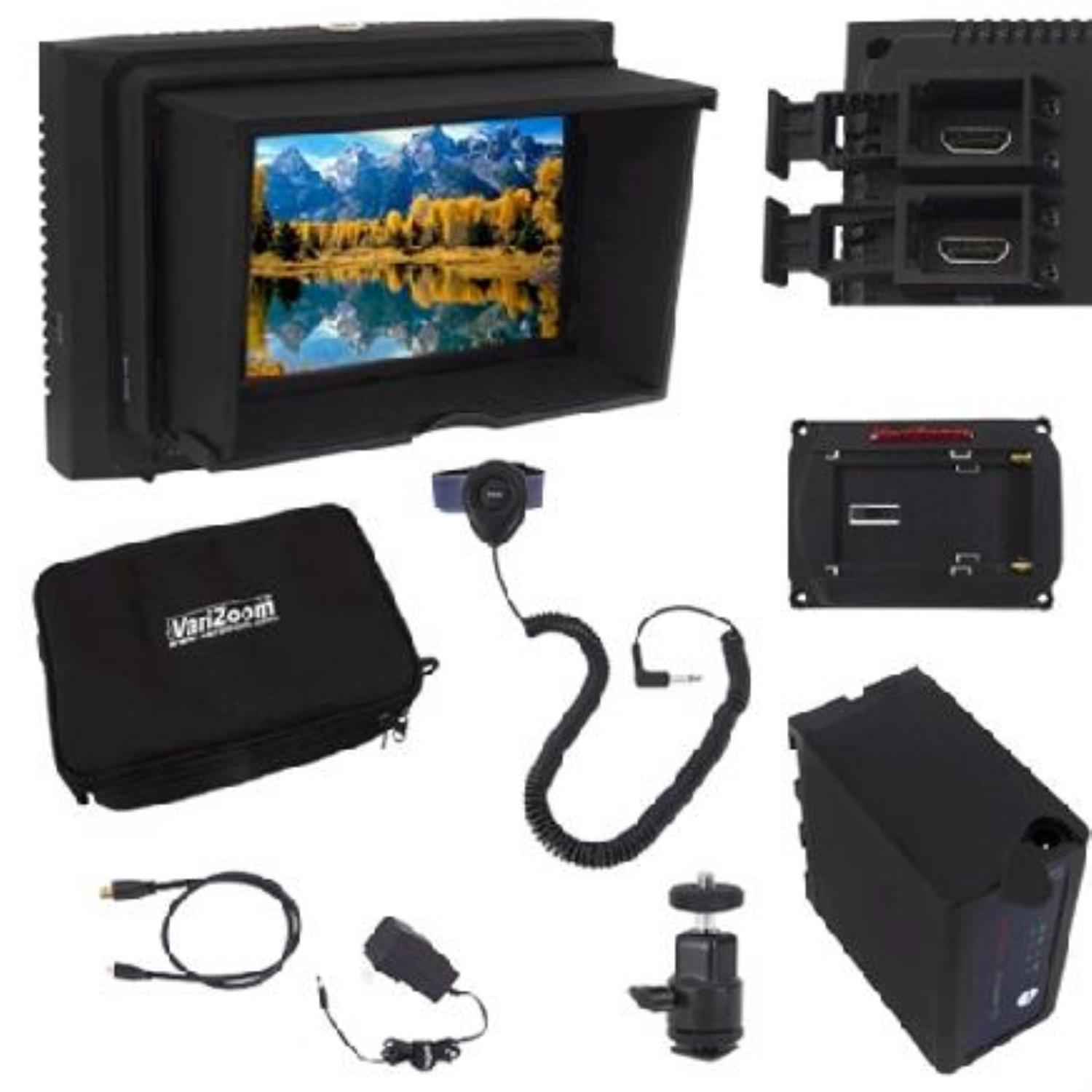

- VariZoom VZ-M5 Monitor
- Zoom remote control
- Sun shade
- Swivel mount
- HDMI lock
- Carry case / bag
- Power supply
- HDMI cable
Real product can look different to picture
techn. Specs▲
| Product | VariZoom VZM5 Monitor Set |
|---|---|
| Screen Size | approx. 5.8" (Diagonal) |
| Resolution (native) | 800 × 480 Pixel |
| Brightness | 500 cd/m² |
| Contrast | 800:1 |
| Backlight | LED |
| Response Time | approx. 10 ms |
| Viewing Angle | L/R/U/D: 80° / 80° / 80° / 80° |
| Video Formats |
1080: 24p / 24psf / 25p / 30p / 50i / 60i / 50p / 60p 720: 50p / 60p SD: 480i / 480p / 576i / 576p |
| HDCP | Yes |
| Inputs | HDMI (In), Zoom Control 3.5 mm |
| Outputs | HDMI (Loop Out), Headphone 3.5 mm |
| Mounting | 2 × 1/4"-20 Thread (top / bottom) |
| Power Supply | DC 12V (Range 6.5 – 36V) |
| Power Consumption | ≤ 7.5 W |
| Dimensions | approx. 147 × 101 × 31 mm |
| Weight | approx. 335 g |
| Battery | 47 Wh / 6600 mAh |
| Runtime | approx. 6 hours |
Questions & Answers▲
What is the native screen resolution of the VZ-M5 monitor?
The native resolution is 800 × 480 pixels. Even without the 1:1 pixel zoom function active, this resolution is sufficient to properly assess sharpness and exposure directly on set.
How large is the display measured diagonally?
The screen measures approximately 5.8 inches diagonally, providing a noticeably larger viewing area compared to the built-in displays of most DSLR cameras.
What video formats does the monitor support?
The monitor supports a wide range of video formats: 1080 at 24p, 24psf, 25p, 30p, 50i, 60i, 50p, and 60p; 720 at 50p and 60p; as well as SD formats including 480i, 480p, 576i, and 576p.
What does the zoom remote control included in the kit do?
The zoom remote control lets you zoom into and out of the live image directly from the tripod or rig handle without touching the monitor itself. This allows precise focus checks during shooting without interrupting your workflow.
Does the kit include a battery, and how long does it last?
Yes, a high-performance battery with a capacity of 47 Wh and 6600 mAh is included. It provides approximately 6 hours of operating time, making the monitor suitable for extended shoots away from a power outlet.
What is the brightness and contrast ratio of the display?
The LCD panel has a brightness of 500 cd/m² and a contrast ratio of 800:1. These values allow for a clear and well-defined image even in moderately bright environments.
How is the monitor powered when no battery is used?
The monitor accepts a DC power input ranging from 6.5 to 36 volts. A suitable power supply is included in the scope of delivery, so the monitor can be operated directly from a mains outlet when a battery is not required.
Is the monitor compatible with Canon 5D and similar DSLRs?
Yes, the DSLR scaling function ensures a full image is displayed when connecting cameras such as the Canon 5D or comparable DSLRs that output a specific aspect ratio over HDMI.
What mounting options are available on the monitor?
The monitor features two 1/4"-20 threaded mounting points, one on the top and one on the bottom. A swivel mount (VZSHOE) is also included in the kit for flexible positioning on a camera or rig.
Does the monitor have an HDMI loop-out connection?
Yes, in addition to the HDMI input, the monitor provides an HDMI loop-out, allowing you to pass the signal on to a second device such as a recorder or another monitor simultaneously.
What accessories are included in the full kit?
The VZ-M5 Kit includes the monitor itself, a sun hood with screen protector, a carrying case, a swivel mount, a high-performance battery, a Sony battery plate, a Sony charger, a zoom button remote, two HDMI lock clips, a power supply, and both standard and mini HDMI cables.
What are the physical dimensions and weight of the monitor?
The monitor measures approximately 147 × 101 × 31 mm and weighs around 335 grams, making it compact and light enough for use on handheld rigs or camera shoulder mounts.
Does the monitor support HDCP?
Yes, HDCP is supported, which ensures compatibility with devices that transmit copy-protected HDMI signals.
Is there an audio output on the monitor?
Yes, the monitor includes a 3.5 mm headphone output, allowing you to monitor audio from the HDMI signal directly through headphones connected to the monitor.
