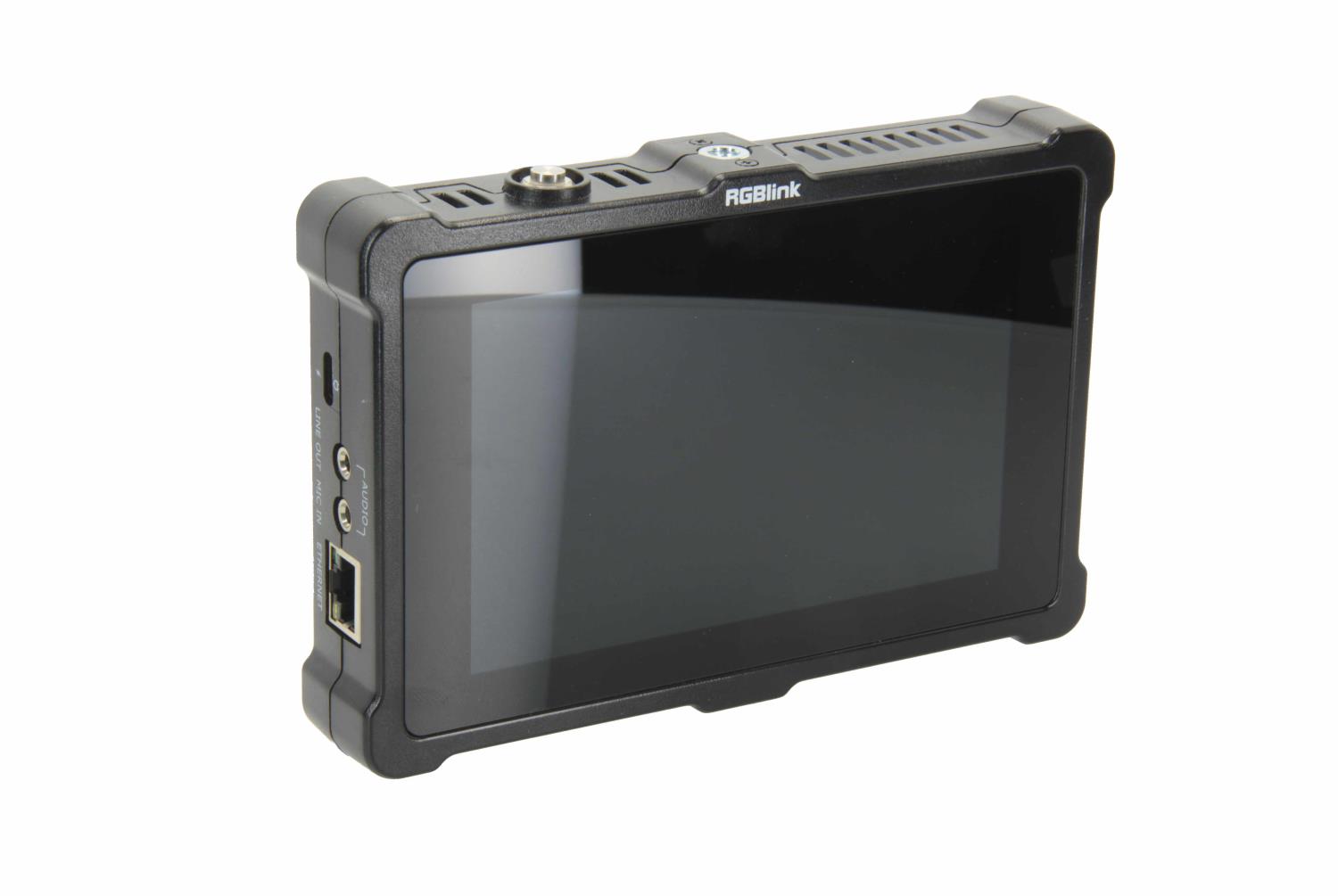

RGBlink TAO 1Pro streaming ndi monitor
5.5 inch preview monitor with NDI
Artikelnummer: 12572 Hersteller-Nummer: Tao1Pro
Features
- 4-channel FullHD video switcher/recorder, streamer, and NDI encoder in one
- 5.5'' touchscreen operation
- Switcher for seamless transitions
- NDI HX2 encoder/decoder
- Multistream for up to 4 live streaming platforms simultaneously
- Network HD streaming (Optional portrait mode for smartphone optimization)
- Recording via USB 2.0 port for up to 2TB
Technical Data
| Power Supply | 9V / 2A |
|---|---|
| Power Consumption | max. 18 W |
| Dimensions | 161 x 106 x 36 mm |
| Weight | 350 g |
Included Accessories
- incl. USB-C power adapter with cable and mounting screw
Real product can look different to picture
techn. Specs▲
Connections
- 2 x HDMI 1.3 Input, 2 x USB 3.0 Input, 1 x USB 2.0 Record, Audio In/Out 3.5 mm, 45 LAN, USB-C Power Supply
Input Resolution
- HDMI, SMPTE 720@50/60, 1080p@23/24/60
- VESA 1024x768@60, 1280x720@50/60, 1280x800@60, 1280x1024@60, 1360x768@60, 1600x1200@60, 1680x1050@60, 1920x1080@60
Output Resolution
- HDMI, SMPTE 720p@50/60, 1080p24/25/50/60, 2160p@60, VESA 1024x768@60
- 1280x72050/60, 1280x800@60, 1280x1024@60, 1920x1080@50/60, 3840x2160@60
Supported Standards
- HDMI 1.3 (Input) | 2.0 (Output), USB 3.0
Display
- Size: 5.5" TFT
- Resolution: 1920x1080
- Pixel Pitch: 0.63(H) x 0.021(W) (mm)
- Aspect Ratio: 16:9
- Brightness: 450 cd/m²
- Contrast: 1000:1
- Backlight: LED
- Viewing Angle: 80°/80°(L/R) 80°/80° (U/D)
