MOBOTIX Pan/Tilthead PT4 Outdoor with 32 memory positions

new

Pan tilt head for Mobotix surveillance camera. Sliding 360 degrees possible. 32 position memory. PT4

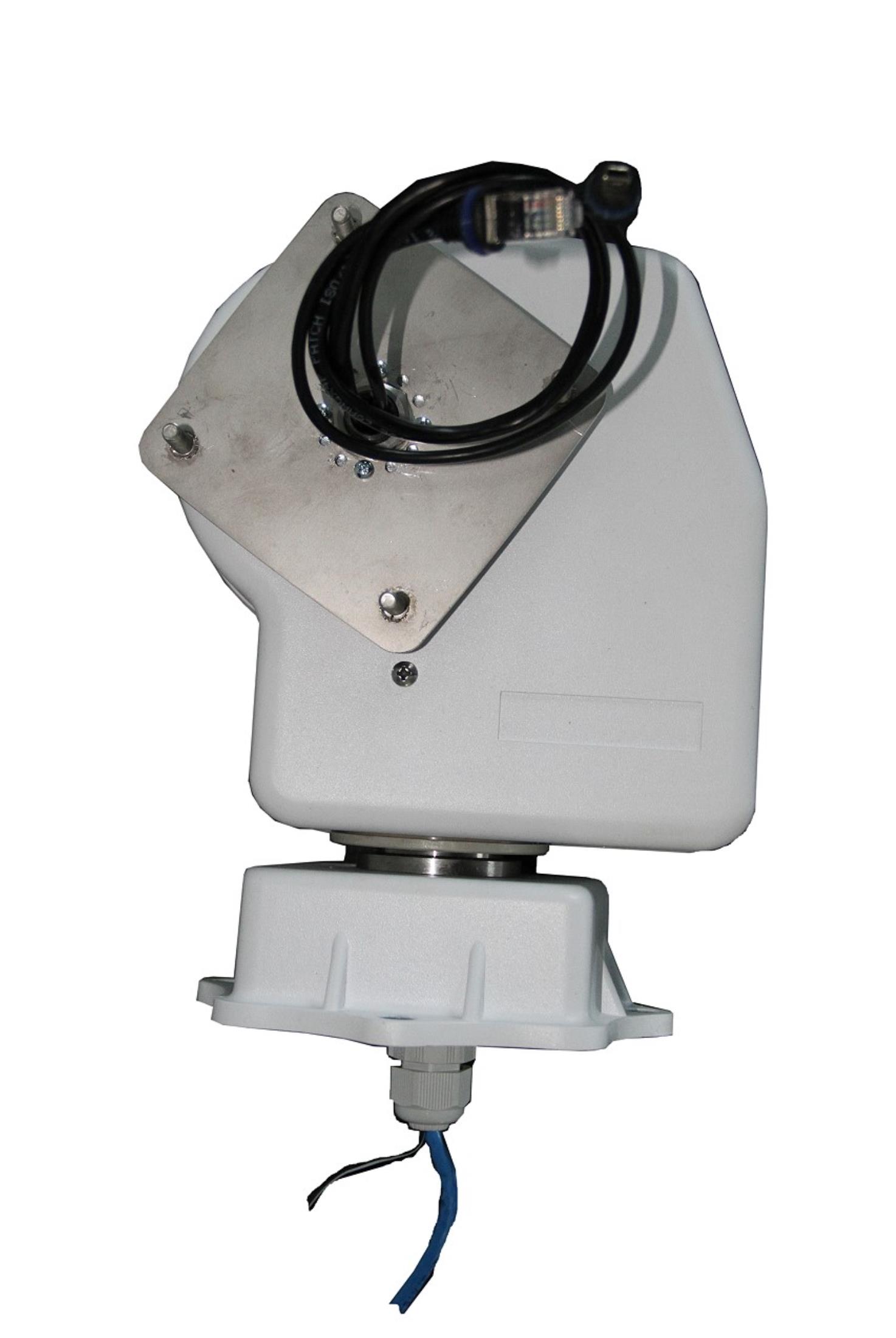

link to product image
Artikelfoto 11 MOBOTIX Schwenk / Neigekopf PT4 Aussenbereich mit 32 Positionsspeicher Artikelfoto 22 MOBOTIX Schwenk / Neigekopf PT4 Aussenbereich mit 32 Positionsspeicher Artikelfoto 33 MOBOTIX Schwenk / Neigekopf PT4 Aussenbereich mit 32 Positionsspeicher Artikelfoto 44 MOBOTIX Schwenk / Neigekopf PT4 Aussenbereich mit 32 Positionsspeicher Artikelfoto 55 MOBOTIX Schwenk / Neigekopf PT4 Aussenbereich mit 32 Positionsspeicher

Pan and tilt head for Mobotix cameras. With built-in USB interface and internal wiring via CAT_Kabel (5m) for Mobotix cameras (other cameras also possible)

Characteristics:
The high-speed pan-tilt head features high-precision 12V DC stepper motors.
Through sliding contacts, the head has no mechanical stop - so it can rotate in any direction 360 degrees endless.

*** Last stock unit - new model available ***

The programming and control of the head is done directly from the Mobotix camera.

• Technical specifications:
• 32 programmable position memories
• Indoor / outdoor use
• die-cast aluminum construction,
• Variety of mounting accessories
• Weather resistant to IP66
• Load capacity: 12 Kg
• Swivel range: 365 ° at 60 ° / sec
• Tilt range: 90 ° at 30 ° / sec
• Power supply: 24-30V / DC / AC 600mA (without camera)
• Temperature range: -25 ° to + 60 °
• Dimensions: 262x126x180
• Supplied with power supply (for the head and a camera), cables and drill holes
• for MOBOTIX cameras with Flex holder and mini USB interface

Delivery without camera!

Real product can look different to picture

Special price: 1299.00 €
incl. VAT

- 33%

( instead of 1949.01 )

1.091.60 € w/o vat

in stock

Product request www.cvc.de Shipping cost

description:

Artikelnummer: 10660 | Hersteller-Nummer: PT4 | EAN: 758263167540

Pan and Tilt Head

for Mobotix cameras. With built-in USB interface and internal wiring via CAT_Kabel (5m) for Mobotix cameras (other cameras also possible)

*** Last stock unit - new model available ***
Characteristics:
  • The high-speed pan-tilt head features high-precision 12V DC stepper motors.
  • Through sliding contacts, the head has no mechanical stop - so it can rotate in any direction 360 degrees endless.
  • The programming and control of the head is done directly from the Mobotix camera.
Technical specifications:
  • 32 programmable position memories
  • Indoor / outdoor use
  • Die-cast aluminum construction,
  • Variety of mounting accessories
  • Weather resistant to IP66
  • Load capacity: 12 Kg
  • Swivel range: 365° at 60°/sec
  • Tilt range: 90° at 30°/sec
  • Power supply: 24-30V / DC / AC 600mA (without camera)
  • Temperature range: -25° to +60°
  • Dimensions: 262x126x180
  • Supplied with power supply (for the head and a camera), cables and drill holes
  • for MOBOTIX cameras with Flex holder and mini USB interface

Delivery without camera!

Real product can look different to picture

techn. Specs▲

Features
  • 32 fixed positions
  • Indoor use / outdoor use
  • Die-cast aluminum construction
  • Variety of mounting accessories
  • Weather resistant to IP66
  • Load capacity: 12 Kg
  • Swivel range: 365° at 60°/second
  • Tilt range: 90° at 30°/second
Technical Data
Power supply 24-30V- / DC / AC 600mA (without camera)
Temperature range -25° to +60°
Dimensions 262x126x180
Compatible Cameras

Possible Mobotix cameras: M10 / M12 / M15 / M24 / M25 and more (all with mini USB)
