Lilliput RM-1730S 17.3 inch Rackmount Monitor
RM1730 - 17 Inch Pull Out Rackmount Monitor in Full HD Resolution
Artikelnummer: 11714 Hersteller-Nummer: RM-1730S

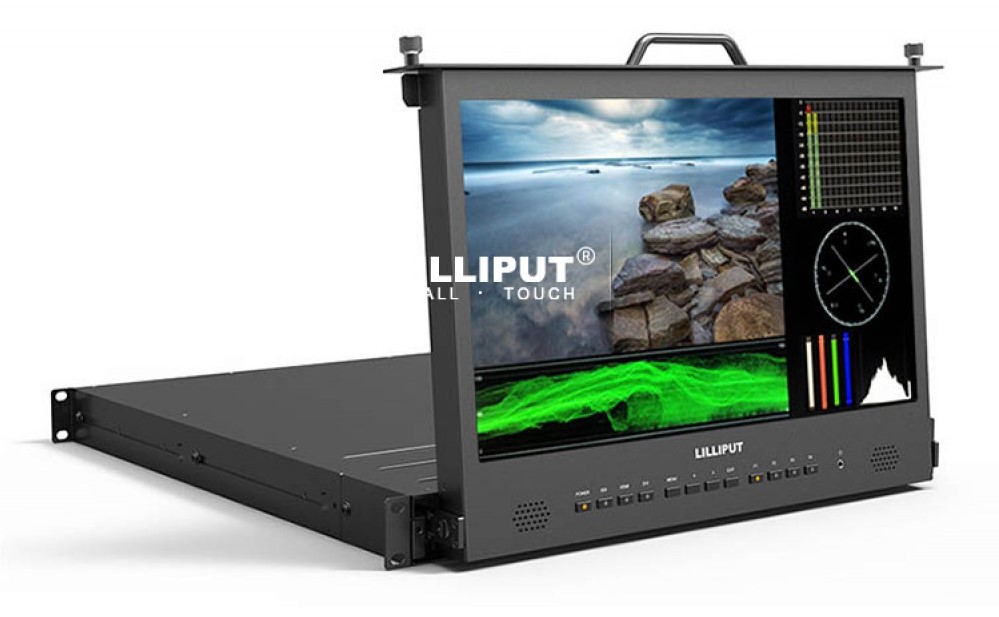

The Lilliput RM-1730-S
The Lilliput RM-1730-S is a 17.3 inch LCD Rackmount Monitor with full HD resolution (1920 x 1080 pixels) and 8-bit color depth.
This pull-out monitor is suitable for installation in 19 inch racks and only takes up 1 height unit (HU). On the back there are 3G-SDI, HDMI and DVI connections.
Characteristics:
- Resolution: Full HD (1920x1080)
- Picture format: 16:9
- Color system: PAL / NTSC
- Brightness: 300 cd/m²
- Contrast ratio: 700:1
- Viewing angle (H/V): 178° / 178°
- 8-bit IPS panel technology
- Two built-in speakers (L / R)
- SDI / HDMI conversion
- Timecode
- Vector Scope
- Waveform Monitor
- Peaking
- False Color
- Histogram
- Exposure
- Check Field
- Color bar
- Image Flip
- For installation in 19 inch rack - 1U
Connections:
- 1 x 3G-SDI / HD-SDI input/output loop
- 1 x HDMI input/output loop
- 1 x DVI input
- 1 x headphone jack, 3.5 mm stereo jack
- 1 x Analog Audio Stereo (2x RCA) input
- 1 x tally entrance
- 1 x DC power supply 10 volts to 18 volts
Included:
- 15V DC adapter
Real product can look different to picture
techn. Specs▲
Supported video formats (SDI):
- 480i (59.94)
- 1080i (60 / 59,94 / 50)
- 1080p (30 / 29,97 / 25/24 / 24sF / 23,98 / 23,98sF)
- 1080p (30 / 29,97 / 25/24 / 24sF / 23,98 / 23,98sF)
- 720p (60 / 59.94 / 50/30/29/25/24 / 23.98)
- 720p (60 / 59.94 / 50), 1080i (29.97 / 25/24 / 23.98), 1080p (60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98)
- 1080p (60 / 59,94 / 50)
- 720p (60 / 59,94 / 50/30 / 29.97 / 25/24 / 23.98)
- 1080i (60 / 59,94 / 50)
- 576i (50)
Supported video formats (HDMI):
- 1080p
- 1080i
- 720p
- 576p
- 576i
- 480p
- 486i
General data:
- Dimensions 48.2 x 4.4 x 50.9 cm (width / height / depth with display inserted)
- 48.2 x 30.3 x 50.9 cm with extended display weight: approx. 8.6 kg
- Power supply: DC voltage DC 10-18 V
- Power consumption: max. Approx. 32 W with 100% backlight
