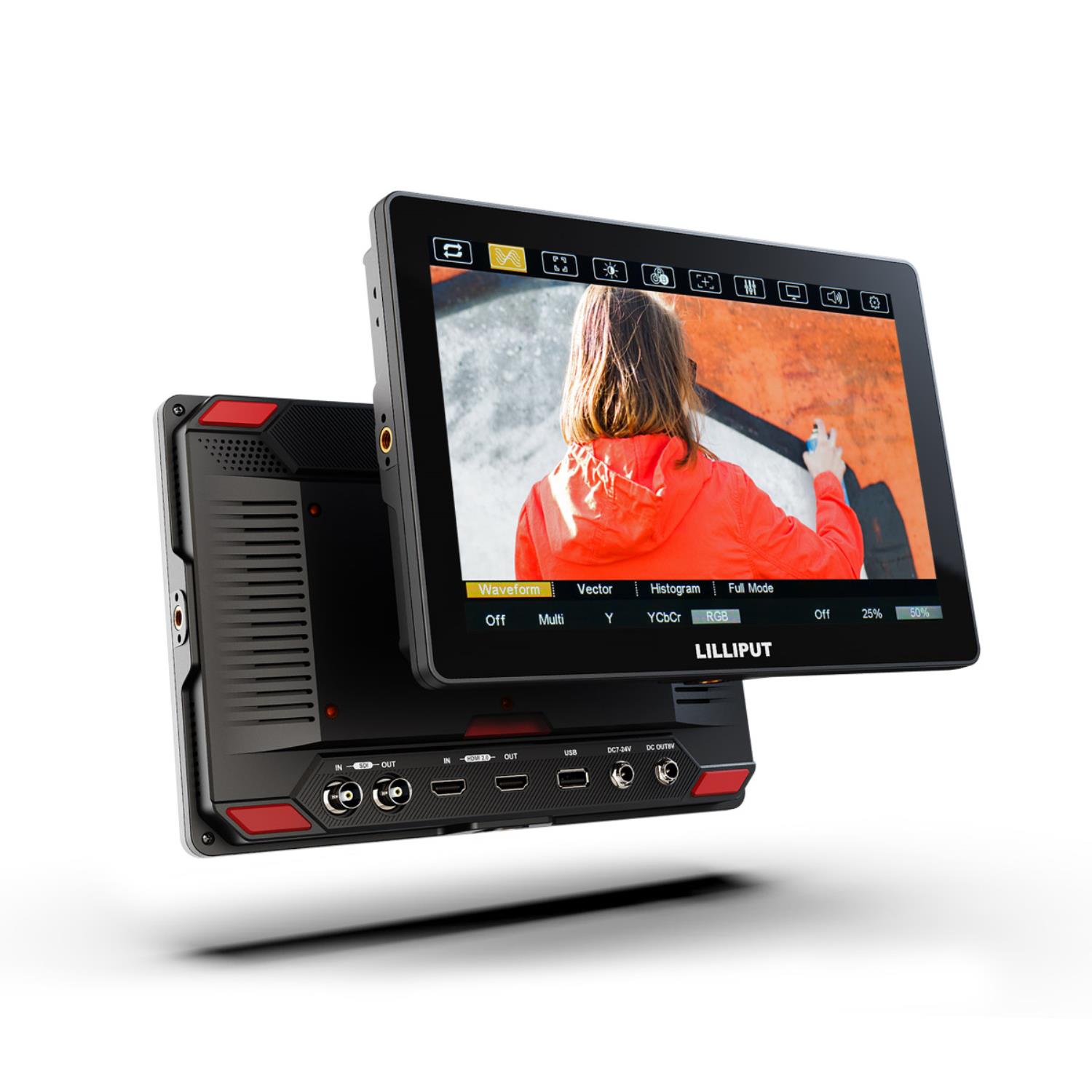

Lilliput HT10S 4K HDMI monitor 10 inch High Brightness touch

new

High Brightness 1500 nits touch camera monitor with SDI and HDMI Inputs



The Lilliput HT10S is an HDR LCD video monitor with WUXGA (1920 x 1200 pixels) resolution with HDMI and 3G-SDI inputs and outputs as well as peaking, histogram and false color functions. The HDMI inputs are compatible with 4K signals up to 3840x2160 at 50/60 Hz according to the HDMI standard 2.0.

Outstanding brightness of 1500 nits - can also be viewed outdoors without anti-glare protection.

3D LUT .cube functions with upload option.

The HT10S is the first Lilliput with camera control via LANC. Functions such as zoom, sharpness, aperture and recording start/stop can be controlled here - conveniently via touchscreen.

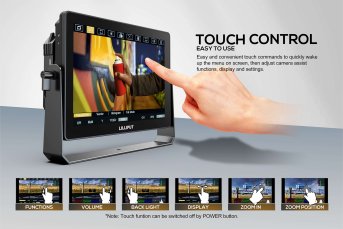

All control functions such as brightness, volume, zoom in and move zoom can also be controlled by touch.

Depending on the camera model, the functions that can be accessed may vary.

NEW: External NPF battery-based devices can be supplied with voltage directly with an adapter!

Order the appropriate power pack if required - see accessories!

4K images are scaled to the high-quality Full HD panel. If required, each individual pixel of the 4K signal can be displayed on the panel using the pixel zoom function. This is the only way to cleanly focus the 4K image.
Due to the very high-quality housing and its low weight, this monitor can be easily mounted on the flash shoe of your camera.

basic properties
Total resolution 1920 x 1200 pixels ( WUXGA )
Image format: 16:10 ( video display 16:9 )
Color system: PAL/NTSC
Color space 100% BT.709
HDR HLG,ST2084 300/1000/10000
Brightness: 1500 cd/m²
Contrast Ratio: 1200:1
Viewing Angle (H/V): 160° / 160°
IPS LED backlight
Built-in speaker
Histogram display
Audio level meter
Peaking display
marker
De-squeeze function
False color representation
Exposure / Zebra function
Pixel to Pixel
mirror image
2 x 1/4 inch (6.35 mm) threads for vertical or horizontal mounting option

connections
1x HDMI input/output (HDMI 2.0 to 4K 50/60 Hz)
1 x SDI input/output (3G-SDI to Full HD 50/60 Hz)
1x headphone 3.5 mm stereo jack
built-in speaker
DC 7-24 V through 5.5/2.1 mm DC hollow jack
Energy consumption ? 23Watt

Generally
Voltage supply DC 7-24 V by a 12V power pack or battery possible
2 x holder for battery types Sony NP-F
maximum power consumption 23 watts

scope of delivery
• new swivel head
• Cable Mini-HDMI (C) to HDMI (A)
• lan cable
• USB stick with instructions
• NO batteries included!
• glare protection
• F970 battery plate

Optional
• wireless option
• swivel bracket
• V mount battery holder

Real product can look different to picture

Special price: 403.41
incl. VAT

( Instead of 427.21 )

339.00 € w/o VAT

1 in stock

Product request www.cvc.de Shipping cost

description:

Artikelnummer: 12503 Hersteller-Nummer: HT10S

Lilliput HT10S HDR LCD Video Monitor

The Lilliput HT10S is an HDR LCD video monitor with WUXGA (1920 x 1200 pixels) resolution with HDMI and 3G-SDI inputs and outputs as well as peaking, histogram and false color functions. The HDMI inputs are compatible with 4K signals up to 3840x2160 at 50/60 Hz according to the HDMI standard 2.0.

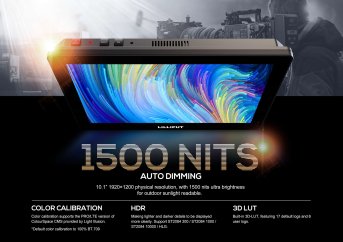

Outstanding Brightness

Outstanding brightness of 1500 nits - can also be viewed outdoors without anti-glare protection.

Advanced Features

3D LUT .cube functions with upload option.

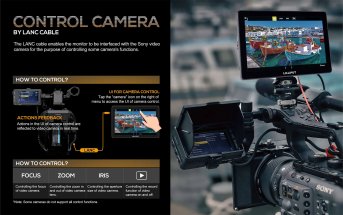

Camera Control via LANC

The HT10S is the first Lilliput with camera control via LANC. Functions such as zoom, sharpness, aperture and recording start/stop can be controlled here - conveniently via touchscreen. All control functions such as brightness, volume, zoom in and move zoom can also be controlled by touch.

Flexible Power Management

NEW: External NPF battery-based devices can be supplied with voltage directly with an adapter! Order the appropriate power pack if required - see accessories!

High-Quality Image Display

4K images are scaled to the high-quality Full HD panel. If required, each individual pixel of the 4K signal can be displayed on the panel using the pixel zoom function. This is the only way to cleanly focus the 4K image. Due to the very high-quality housing and its low weight, this monitor can be easily mounted on the flash shoe of your camera.

Basic Properties
Total resolution1920 x 1200 pixels (WUXGA)
Image format16:10 (video display 16:9)
Color systemPAL/NTSC
Color space100% BT.709
HDRHLG, ST2084 300/1000/10000
Brightness1500 cd/m²
Contrast Ratio1200:1
Viewing Angle (H/V)160° / 160°
IPS LED backlight
Built-in speaker

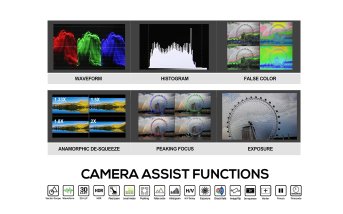

Histogram display
Audio level meter
Peaking display
Marker
De-squeeze function
False color representation
Exposure / Zebra function
Pixel to Pixel
Mirror image
2 x 1/4 inch (6.35 mm) threads for vertical or horizontal mounting option

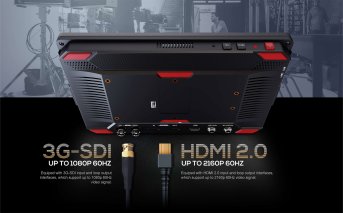

Connections
  • 1x HDMI input/output (HDMI 2.0 to 4K 50/60 Hz)
  • 1 x SDI input/output (3G-SDI to Full HD 50/60 Hz)
  • 1x headphone 3.5 mm stereo jack
  • Built-in speaker
  • DC 7-24 V through 5.5/2.1 mm DC hollow jack
  • Energy consumption ≤ 23Watt
Generally
  • Voltage supply DC 7-24 V by a 12V power pack or battery possible
  • 2 x holder for battery types Sony NP-F
  • Maximum power consumption 23 watts
Scope of Delivery
  • New swivel head
  • Cable Mini-HDMI (C) to HDMI (A)
  • LAN cable
  • USB stick with instructions
  • NO batteries included!
  • Glare protection
  • F970 battery plate
Optional
  • Wireless option
  • Swivel bracket
  • V mount battery holder

Real product can look different to picture

techn. Specs

Technical Specifications
Display 10 inch LCD display
Resolution 1920x1200 pixels 16:10
Video representation 16:9
Brightness 1500cd/m² (up to 10% deviation to the edge)
Contrast 1200:1
Viewing angle 170° H/V
3G-SDI with loop output - up to 1920x1080/50-60 Hz
HDMI with loop output HDMI 2.0 up to 4K 50-60 Hz
Tally port Yes
Speaker Yes
Headphone jack Yes
Input voltage 5.5/2.1mm DC socket 7-24 volts
Power consumption less than 23 watts at 12 volts
Operating temperature -20°C to 60°C
Dimensions 251x170x26.5mm
Weight 850 grams
