VariZoom VZPROC zoom remote control Canon 8-pin
Dual-speed zoom control for broadcast & video
article number: 4983 | manufacturer number: VZPROC | EAN/UPC: 877038000582

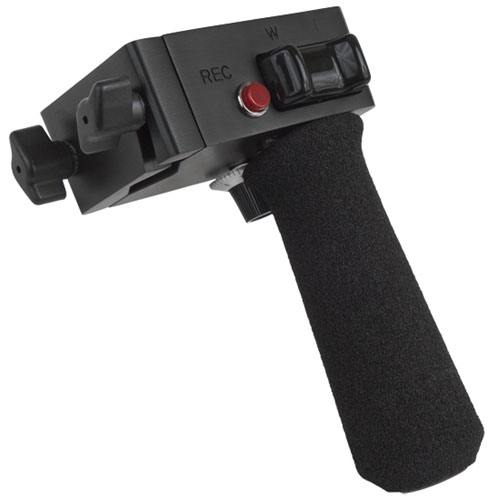

The VariZoom VZPROC is one Robust zoom remote control for professional Canon lenses with 8-pin connection. With its sturdy aluminum housing and precise dual-variable zoom control it offers maximum control for demanding video and broadcast applications.
The integrated dual-variable system combines a pressure-sensitive zoom rocker with a speed dial to limit the maximum speed. This makes it possible to achieve particularly uniform and reproducible zoom movements.
- Pressure-sensitive zoom rocker for variable speed
- Speed dial for presetting the maximum zoom speed
- Smooth zoom movements from very slow to defined Maximum speed
- Additional “ramping” function for dynamic zoom movements
This Stable aluminum housing and the improved clamping mechanism ensure reliable use in daily production use. The VZPROC is ideal for use on tripods, cranes, gimbals and shoulder rigs.
- Heavy-duty aluminum housing
- Improved clamping hardware with secure Hold
- Ergonomic handle with rubberized surface
- Quick release for flexible Assembly
- Large record start/stop button
- Video return function (playback of the last seconds). Connection.
Real product can look different to picture
techn. Specs▲
| Width | 12cm |
|---|---|
| Length | 16cm |
| Max. Clamp diameter | 31mm |
| Cable length | approx. 100cm |
| Weight | approx. 500gr |
| Material | Aluminum |
| Compatibility list | Located on the Fujinon Broadcast Lens Controls page |
| For | 8 Pin Fujinon lenses |
Questions & Answers▲
For which lenses is the VariZoom VZPROC suitable?
The VZPROC is compatible with professional Canon lenses that have an 8-pin connection. A detailed compatibility list is available on the corresponding product page.
What does dual-variable zoom control mean?
The dual-variable system combines a pressure-sensitive zoom rocker with a speed dial. The rocker controls the zoom speed by pressing, while the speed dial limits the maximum zoom speed in advance. In this way, uniform and reproducible zoom movements can be achieved.
What is the ramping function and what is it used for?
The ramping function enables dynamic zoom movements with smooth inlets and outlets. It is particularly useful if zoom movements at varying speeds need to be made cinematically effective.
What material is the housing made of?
The housing is made of aluminum and is designed for continuous professional use. It offers high stability and longevity in daily production operations.
On which camera carriers can the VZPROC be mounted?
Thanks to the improved clamping mechanism and the quick release, the VZPROC can be flexibly attached to tripods, cranes, gimbals and Attach shoulder rigs. The maximum clamp diameter is 31 mm.
How long is the remote control cable?
The cable is approx. 100 cm long and therefore offers enough scope for most camera setups in tripod and Shoulder rig operation.
How much does the VZPROC weigh?
The VZPROC weighs approximately 500 grams. The aluminum housing provides robustness without adding excessive weight to the overall setup increase.
What dimensions does the remote control have?
The VZPROC is 16 cm long and 12 cm wide. This compact design enables ergonomic handling even during longer shoots.
Does the VZPROC have a record button?
Yes, the VZPROC is equipped with a large record start/stop button, which allows convenient recording control directly via the remote control
What is the video return function?
The video return function allows the last recorded seconds to be played back directly via the remote control. It makes it easier to quickly check shots during filming.
Is the handle of the VZPROC ergonomically designed?
Yes, the handle is ergonomically shaped and has a rubberized surface for a secure and fatigue-free grip, even with longer operations.
Can the speed dial be adjusted during a recording?
The speed dial is used to preset the maximum zoom speed. It sets the upper speed range within which the pressure-sensitive zoom rocker then works continuously.
Is the VZPROC suitable for broadcast use?
Yes, the VZPROC was developed for professional video and broadcast applications. The robust aluminum housing, the precise zoom control and the practical operating functions make it a suitable tool for demanding productions.
