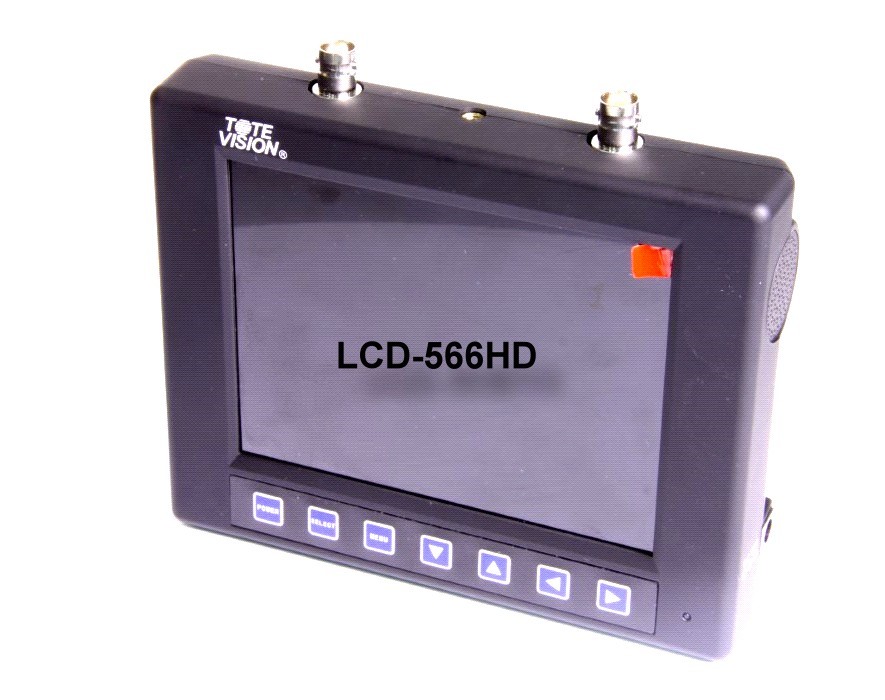

ToteVision LCD-566HD Field Monitor mit BNC-Video und HDMI Anschlüssen
Kompakter und zuverlässiger 5.6 Zoll Monitor mit HDMI und BNC Video Anschlüssen mit Durchschleifung. LED Hintergrundbeleuchtung
5,6 Zoll Feldmonitor ohne Akku
BNC IN / OUT, kein Ton.
HDMI
Zusammengesetztes NTSC / PAL
Res. 1920 x 480, 350 Nit Helligkeit
Achtung: Abbildungen können von dem aktuellen Produkt abweichen
Technische Daten▲
Mount Free-standing, 1/4-20 pad top and bottom
Display 5.6 Zoll TFT LCD
Resolution 640 x 480 (displays 480i/p ~ 1080i/p)
Native Aspect Ratio 4:3
Visible Screen Size 4.4 x 3.3 / 112.9 x 84.7mm
Back Light LED (20K)
HD Compatible Yes
Anti-Glare Coating Yes
Brightness 350 cd/m² (Nit)
Contrast 500:1
Dot Pitch 0.059mm x 0.176mm
Response Time 10/15ms (Rising/Falling)
Viewing Angle 70/70/50/70 degrees
Audio Power / Speakers 2 watts
HDMI x1 Input
Composite x1 BNC Input; x1 BNC Ouput
Audio x1 3.5mm Input; x1 3.5mm Output
Power x1 2.1mm DC Input (AC adapter not included)
Operating Temp -4 ~ 140°F / -20 ~ 60°C
Humidity 20% ~ 80% RH
Power Requirements 11VDC ~ 14VDC, 630mA, +pin, - ground
Power Consumption 5 watts (max)
Dimension with Deskstand 6.2 x 5.1 x 2.2 / 158 x 130 x 55mm with battery pack
Dimensions 6.2 x 5.1 x 1.7 / 158 x 130 x 42mm without battery pack
Product Weight Net: 14 oz / 400g; Gross: 1.6 lbs / 0.7 kg
Case Rubberized durable ABS Plastic
Additional Information Electromagnetic Shielding Auto Power On function Mirror Image function Automatic Signal Resolution Scaling Auto-sensing NTSC/PAL
